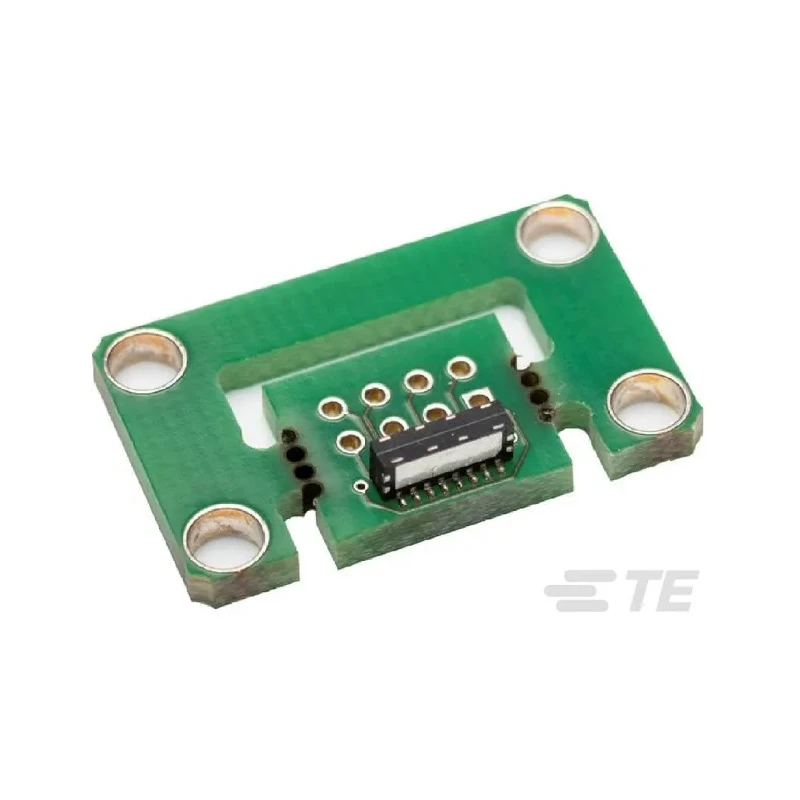

TE Connectivity PCB Position Sensor Magneto Resistive Technology 5V-10V DFN 12-Pin G-MRCO-055

TE Connectivity G-MRCO-055 PCB Position Sensor is a high-precision magneto resistive sensor designed for accurate position sensing in industrial and medical environments. Featuring a compact DFN package and 12-pin connectivity, it operates reliably across a wide voltage range from 5V to 10V and temperatures from -40°C up to 150°C. Utilizing anisotropic magnetoresistive (AMR) technology, it ensures high-resolution, contactless measurement with tolerances of 10-50 μm within ranges of 1 to 5 mm.

This sensor facilitates easy PCB assembly and integration thanks to its compact dimensions of 6.1 mm length, 2.1 mm width, and 800 μm height. Its low supply current of 10 mA optimizes power efficiency and reduces thermal stress. The sensor complies with IPC/JEDEC J-STD-020 Revision D.1, EU RoHS Directive, and ELV Directive for environmental safety and quality assurance.

Ideal for demanding industrial machinery such as sawing and drilling equipment, medical applications including precision mechanical controls, advanced prosthetic steering, and syringe pumps, as well as robotics in industrial automation. Its robust design ensures EMC immunity and insensitivity to dirt, oil, and dust, enabling dependable operation even in harsh environments.

Utilizes contactless magneto resistive sensing technology for high precision. Compact DFN package with 12 pins suitable for PCB assembly. Operating voltage range between 5V minimum and 10V maximum. Wide operating temperature range from -40°C to 150°C.

Dimensions: 6.1 mm length, 2.1 mm width, and 800 μm height. Low supply current consumption of 10 mA ensuring efficient energy use. Anisotropic magnetoresistive (AMR) magnetic type for accurate sensing. Meets IPC/JEDEC J-STD-020 Revision D.1, RoHS 2011/65/EU, and ELV 2000/53/EC standards.

Designed for industrial applications requiring high resolution and harsh environment tolerance. Explore the TE Connectivity range of motion sensor ICs for reliable, high-performance solutions in electronic components and semiconductor sensors.
