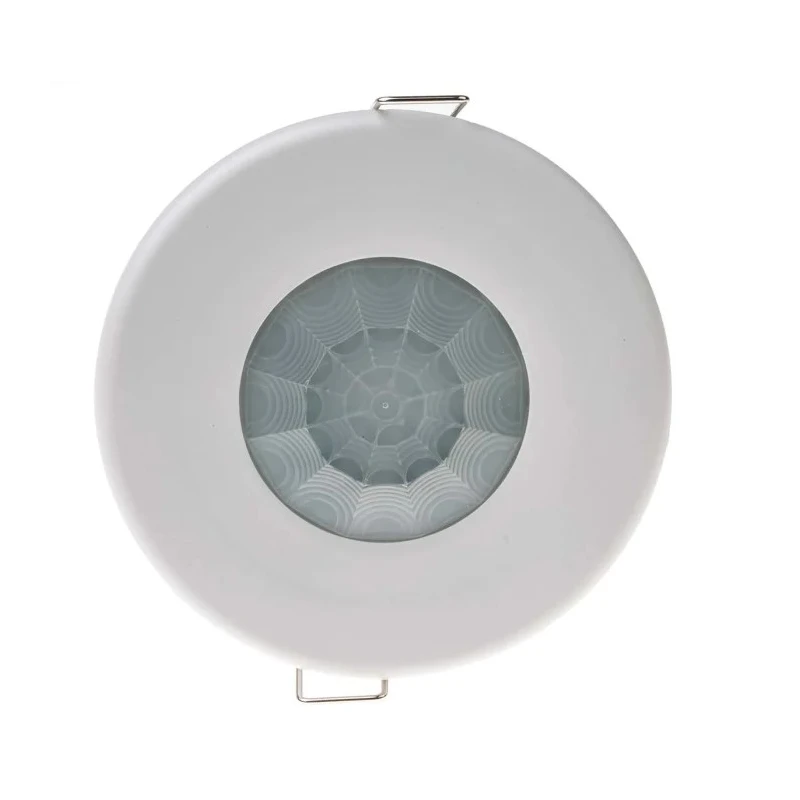

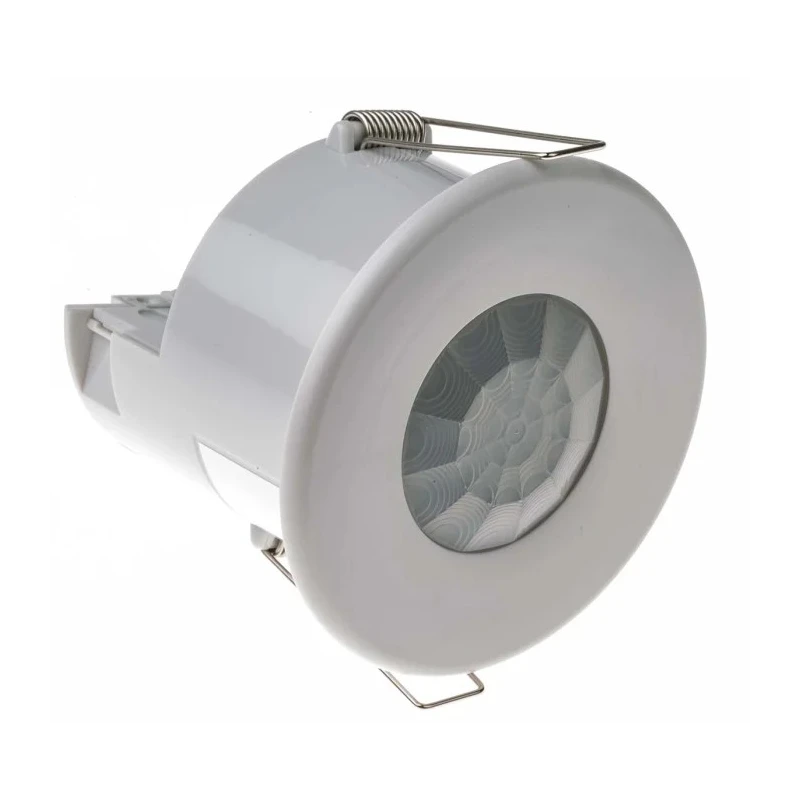

RS PRO 895 mW Ceiling PIR Sensor Surface Mount 230V AC 10A Load IP40 76mm Diameter 796-2019

RS PRO 796-2019 PIR Sensor is a ceiling-mounted passive infrared sensor designed for automated presence and absence detection. Operating on a 230 V AC supply with a power consumption of 895 milliwatts, it manages electrical loads up to 10 A, making it ideal for lighting and ventilation applications.

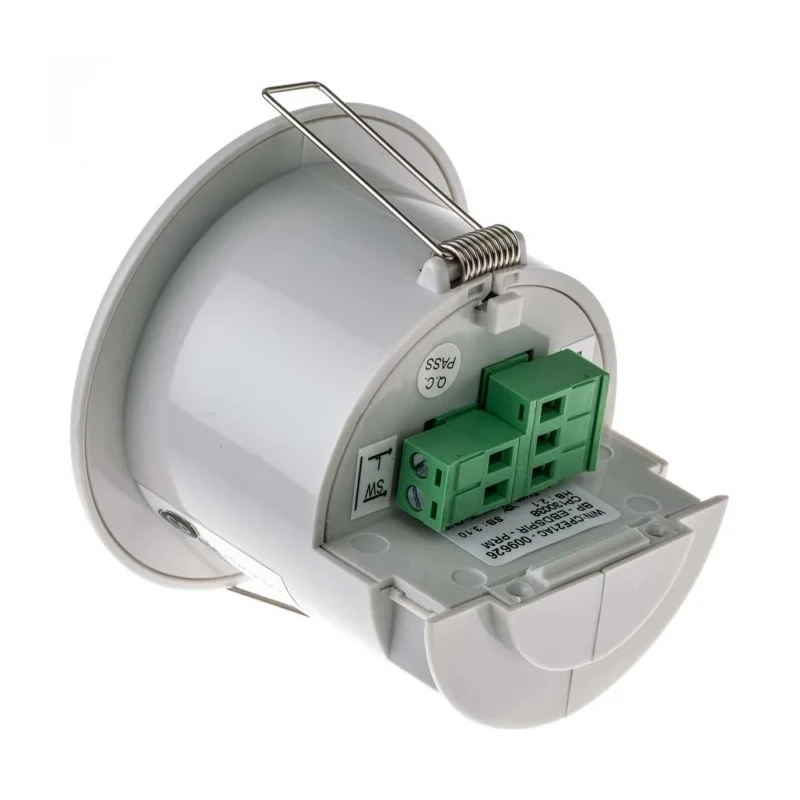

The sensor features a 76 mm diameter sensor head with physical dimensions of width 64.9 mm and height 61.2 mm. It employs both PIR technology for motion detection and an integrated light level sensor that activates the device under low light conditions. The device includes an output channel consisting of a mains voltage relay that enables simple on/off switching.

Constructed from flame-retardant ABS and PC/ABS thermoplastic materials, this PIR sensor holds an IP40 rating ensuring protection against solid foreign objects larger than 1 mm, suitable for indoor environments like offices, homes, storage units, and retail facilities.

Safety and quality compliance is achieved through CE certification and adherence to EMC-2004/108/EC and LVD-2006/95/EC standards. Its programming flexibility includes an optional manual override and the ability to be configured via an infrared handset (not included).

This RS PRO sensor enhances energy efficiency and security by automating lighting and electrical appliances based on presence, absence, or light conditions. Installation is simplified by surface mounting capability.

Power consumption of 895 milliwatts ensures energy efficiency. Passive infrared detection and light level sensor for reliable presence and absence monitoring. Ceiling mounted for unobtrusive installation. Maximum 10 A load capacity suitable for lighting and ventilation control.

Constructed with flame-retardant thermoplastic ABS and PC/ABS materials. IP40 rated for indoor protection against dust and solid objects. CE certified and meets EMC and LVD safety directives. Optional manual override and programmable via IR handset (sold separately).

Ideal for homes, offices, retail, and storage facilities for automated appliance control. Explore more high-quality sensors and devices from the RS PRO range on EnvMart for reliable industrial and commercial applications.

Explore more products in our Infrared Sensors category.
