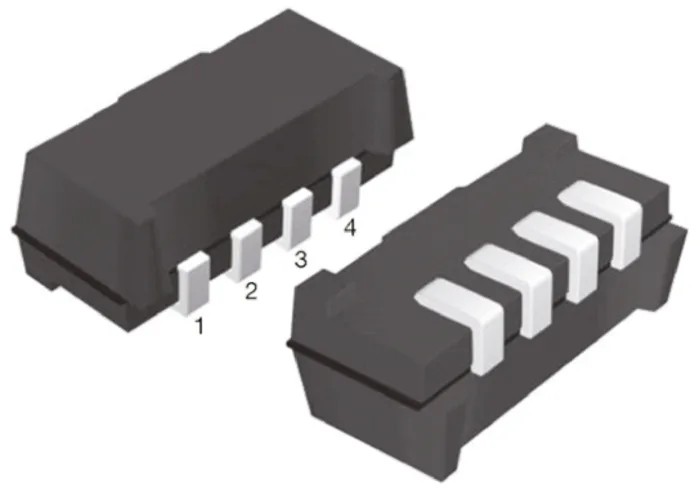

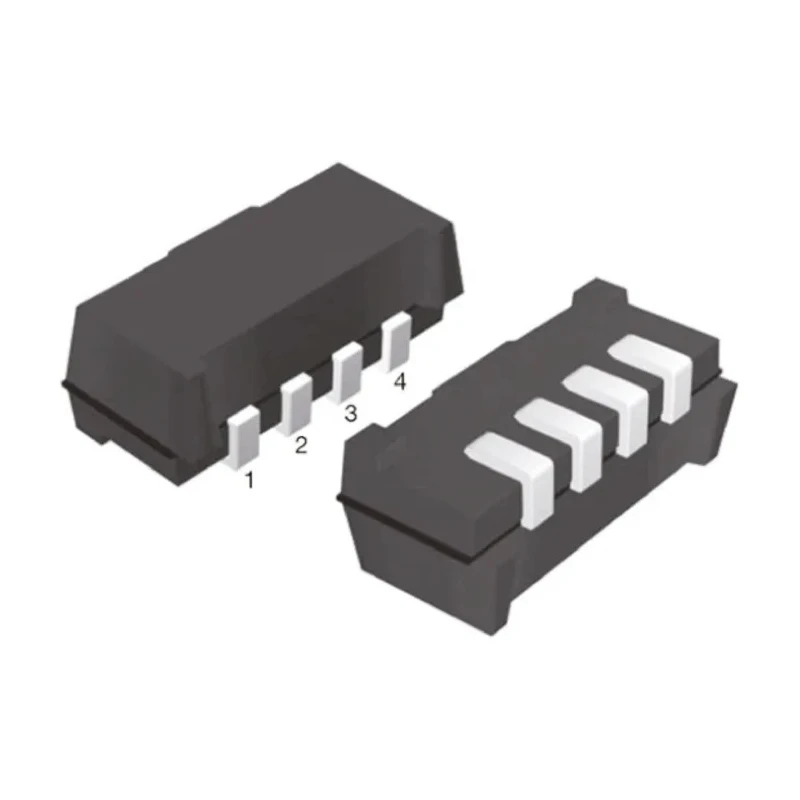

Vishay 38 kHz IR Receiver ±50° 45 m Range Surface Mount TSOP Package 4-Pin TSOP75338WTT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Orientation | Top View |
| Height | 3.2mm |
| Length | 6.8mm |
| Model | TSOP75338WTT |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Output Current | 5mA |
| Maximum transmission distance | 45m |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | JEDEC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 768-9376Brand: VishayManufacturers Part No.: TSOP75338WTT |
| Number of Pins | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Carrier Frequency | 38kHz |
| Angle of Half Transmission Distance | ±50° |
Key Features
- Operates at 38 kHz carrier frequency for IR remote control applications.
- Maximum transmission distance of 45 meters with a wide reception angle of ±50 degrees.
- Compact surface mount TSOP package measuring 6.8 mm length, 3.2 mm height, and 3 mm width.
- Operates at supply voltage range of 2.5 V to 5.5 V with low supply current of 3 mA.
- Output current capability up to 5 mA with standard 4-pin TSOP package design.
- Wide operating temperature range from -25°C to 85°C for varied environmental conditions.
- JEDEC approved standard ensuring reliable industrial and consumer electronic use.
Product Description
Vishay TSOP75338WTT is a high-sensitivity infrared receiver module engineered to operate at 38 kHz carrier frequency. Featuring a wide reception angle of ±50°, it enables a substantial maximum transmission distance of 45 meters. The device comes in a compact surface mount TSOP package measuring 6.8 mm in length, 3.2 mm in height, and 3 mm in width, designed for streamlined PCB integration.
Operating voltage ranges between 2.5 V and 5.5 V with a supply current of only 3 mA, it efficiently supports remote control and infrared communication applications, including infrared code learning, repeaters, infrared light barriers, and proximity sensors.
The device delivers output current up to 5 mA, facilitating connections to various electronic circuits. It complies with JEDEC standards, ensuring quality and compatibility for use in industrial, consumer electronics, and embedded systems.
Designed to function reliably in ambient temperatures from -25°C to 85°C, the TSOP75338WTT is suitable for diverse environments. Its surface mount package and 4-pin top-view orientation simplify automated assembly and manufacturing processes.
Operates at 38 kHz carrier frequency for IR remote control systems. Wide reception angle of ±50° and 45 m transmission distance. Compact surface mount TSOP package with 4-pin configuration. Low power consumption with 3 mA supply current, operating 2.5 V to 5.5 V.
JEDEC standard compliant for quality assurance.
This infrared receiver is ideal for industrial applications including automation control, remote sensing, communication devices, and household electronics. Its robust specifications ensure reliable IR signal demodulation and operation in challenging conditions.
Explore more Vishay IR receivers and semiconductor components for your electronics projects here on EnvMart.
Explore more products in our Infrared Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission distance of the TSOP75338WTT infrared receiver is 45 meters.
This model operates within a supply voltage range of 2.5 V to 5.5 V.
The TSOP75338WTT operates at a carrier frequency of 38 kHz, suitable for IR remote control applications.
It has an output current capability of up to 5 mA.
The dimensions of this infrared receiver are 6.8 mm in length, 3.2 mm in height, and 3 mm in width.
The angle of half transmission distance for the TSOP75338WTT is ±50°.
The supply current for this unit is 3 mA, which contributes to its low power consumption.
This infrared receiver operates within a temperature range of -25°C to 85°C.
The TSOP75338WTT comes in a compact surface mount TSOP package with a 4-pin configuration.
Yes, it complies with JEDEC standards, ensuring quality and compatibility for various applications.
This model supports surface mounting, which simplifies PCB integration.
It is suitable for applications such as infrared code learning, repeaters, infrared light barriers, and proximity sensors.
