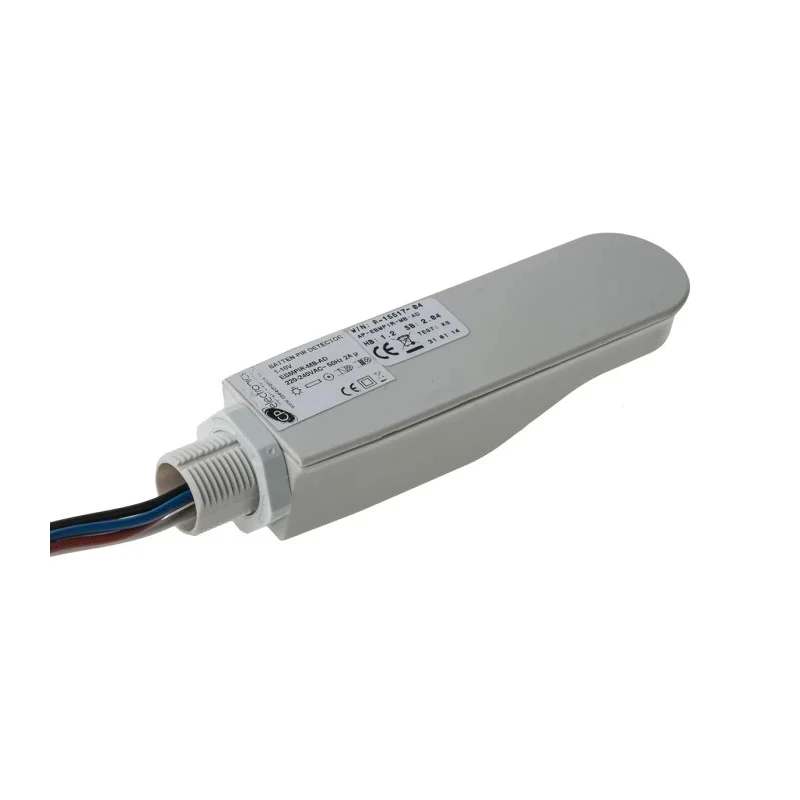

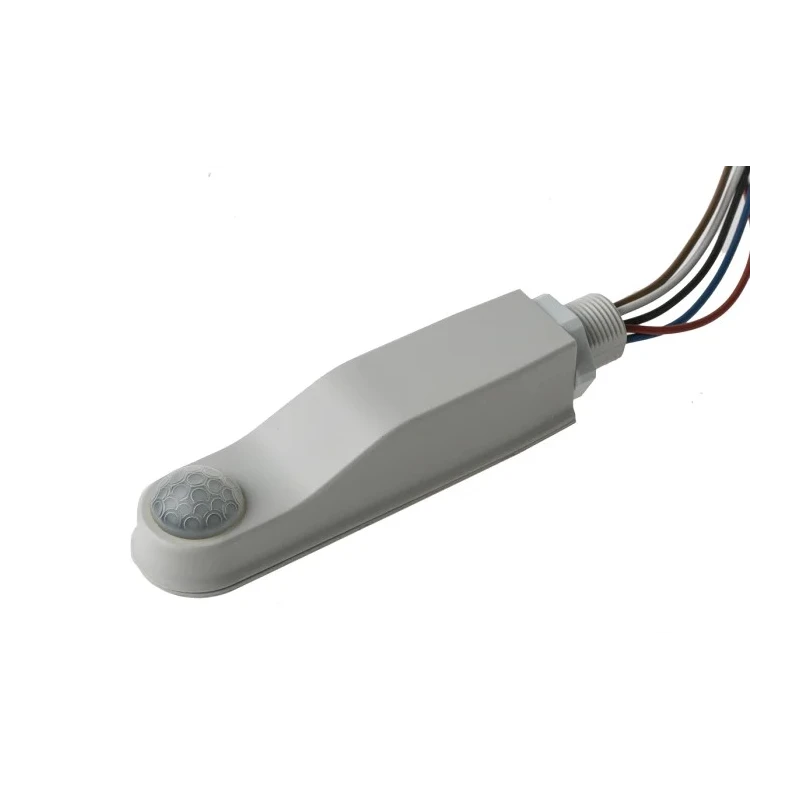

RS PRO Miniature PIR Detector Ceiling Mount PIR Sensor 230V AC IP65 796-2025
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Material | Flame Retardant ABS, Polycarbonate |
| Height | 28mm |
| Model | 796-2025 |
| Depth | 144mm |
| IP Rating | IP65 |
| Width | 33mm |
| Mount Type | Ceiling |
| Detector Type | Miniature PIR detector |
| Supply Voltage | 230V ac |
| RS PRO Passive Infrared PIR SensorBrand | RS PRO |
Key Features
- Detects movement using passive infrared technology for automatic lighting control.
- Suitable for batten style luminaires and ceiling mounting.
- Programmable with infrared handset for flexible control options.
- Designed to switch incandescent, fluorescent, compact fluorescent and LED lighting loads.
- IP65 rated for protection against dust and water jets making it suitable for outdoor use.
- Constructed from flame retardant ABS and polycarbonate for durability.
- Includes a selection of fixing washers for varied luminaire mounting.
- Adjustable timeout period for switching off the load when area is no longer occupied.
Product Description
RS PRO 796-2025 Miniature PIR Detector is a ceiling mount passive infrared sensor designed for automatic presence detection and lighting control in industrial, commercial, and outdoor environments.
This PIR sensor operates with a supply voltage of 230V AC and features an IP65 ingress protection rating, making it resistant to dust and water jets. The material construction uses flame retardant ABS and polycarbonate, ensuring robustness and safety in demanding applications.
The device is specifically designed to mount onto batten style luminaires and ceiling surfaces, with a slim form factor measuring 144mm depth, 33mm width, and 28mm height. It detects occupancy by sensing infrared movement and switches lighting loads accordingly, including incandescent, fluorescent, compact fluorescent, and LED lamps.
Programmable functionality is accessible via an infrared handset, allowing customization of lighting control parameters such as timeout periods and sensitivity. Multiple variants are supported including premium, direct dim, and analogue dim models for flexible compatibility with different lighting control standards such as DALI, DSI, and 1-10V dimming ballasts.
These miniature PIR sensors are suitable for use in offices, warehouses, and outdoor installations where automated lighting provides energy savings and enhanced convenience. The IP65 rating also allows for installation in wet or wash-down areas, expanding their industrial and commercial applicability.
Detects presence using PIR technology for automatic light switching. Programmable via IR handset for custom control settings. Compatible with a variety of lighting types including LED and fluorescent. IP65 rated for outdoor and wet area installations.
Material: Flame retardant ABS and polycarbonate for durability. Dimensions: 144mm depth, 33mm width, 28mm height. Supply Voltage: 230V AC for standard electrical compatibility. Mount Type: Ceiling, optimized for batten luminaire mounting.
Includes fixing washers for easy installation.
Explore the extensive RS PRO PIR Sensor range for comprehensive solutions in presence detection and lighting control across industrial, commercial, laboratory, and environmental safety applications on EnvMart.
Explore more products in our Infrared Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage of 230V AC, making it suitable for standard electrical systems.
It has an IP65 rating, which means it is protected against dust and water jets, allowing for outdoor installation.
The sensor is constructed from flame retardant ABS and polycarbonate, ensuring safety and robustness in various applications.
The dimensions are 144mm in depth, 33mm in width, and 28mm in height, making it compact for ceiling mounting.
This unit is designed for ceiling mounting, specifically optimized for batten style luminaires.
It can switch incandescent, fluorescent, compact fluorescent, and LED lighting loads, providing versatile compatibility.
Yes, it is programmable via an infrared handset, allowing customization of settings such as timeout periods and sensitivity.
It is suitable for use in offices, warehouses, and outdoor installations where automated lighting is beneficial.
Yes, it includes a selection of fixing washers for varied luminaire mounting, facilitating easy installation.
This model is a miniature PIR detector, designed specifically for presence detection and automatic lighting control.
Multiple variants are supported, including premium, direct dim, and analogue dim models for compatibility with different lighting control standards.
The country of origin for this sensor is the United Kingdom.
