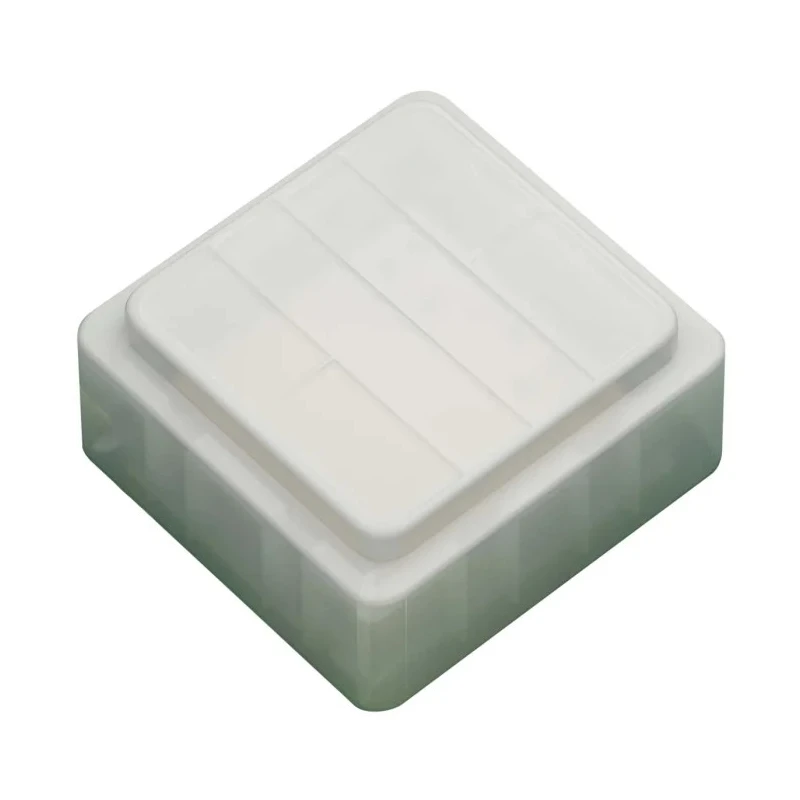

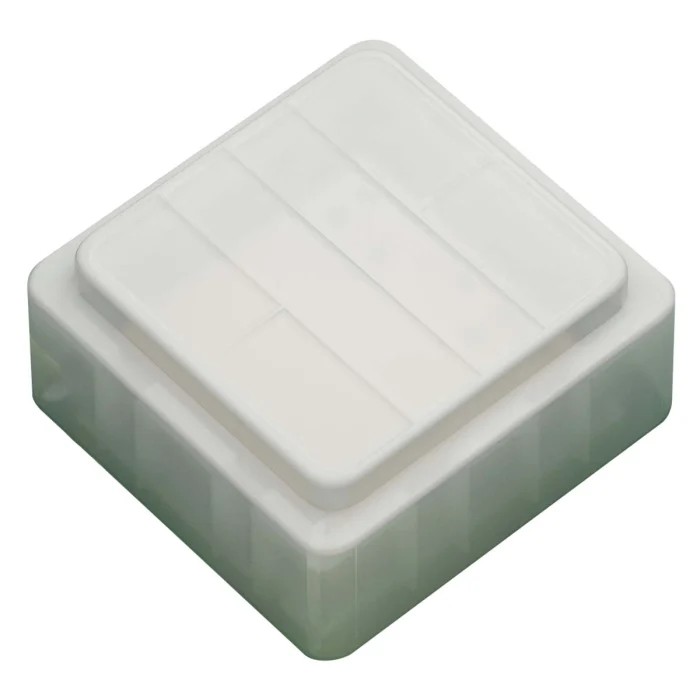

KEMET PL Series Pyroelectric IR Sensor Lens 37 ° PL-001L-N

KEMET PL-001L-N pyroelectric IR sensor lens is part of the PL Series designed for infrared detection using the pyroelectric effect of ceramic materials. This sensor detects infrared rays emitted from living humans, capturing natural infrared signatures without requiring a lens, which provides a low profile and sleek integration possibilities.

The sensor's proprietary piezoelectric ceramic material and element structure enable detection through glass or resin, allowing versatile placement options in various equipment designs. The device supports reflow soldering, making it suitable for automated manufacturing processes.

The PL-001L-N lens accessorizes the sensor to provide a 37-degree viewing angle, optimizing infrared detection within specified angular ranges, suitable for security, automation, and presence detection systems.

This component is RoHS and REACH compliant, supporting environmental and safety standards required in industrial and commercial electronic applications. Its compact dimensions of 7 mm length, 6.6 mm width, and 3.87 mm height facilitate integration into small-form-factor devices.

Typical industrial uses include electronic security sensors, motion detection systems, HVAC occupancy sensing, and other laboratory or automation equipment that require reliable infrared detection capabilities.

Utilizes the pyroelectric effect for human body infrared detection. Low profile and does not protrude, enhancing design possibilities. Infrared detection possible through glass or resin materials. Attachment of lens provides a consistent 37 ° viewing angle.

Reflow capable SMD suitable for automated production. Compliant with REACH and RoHS environmental standards. Compact size fits small electronic component assemblies.
