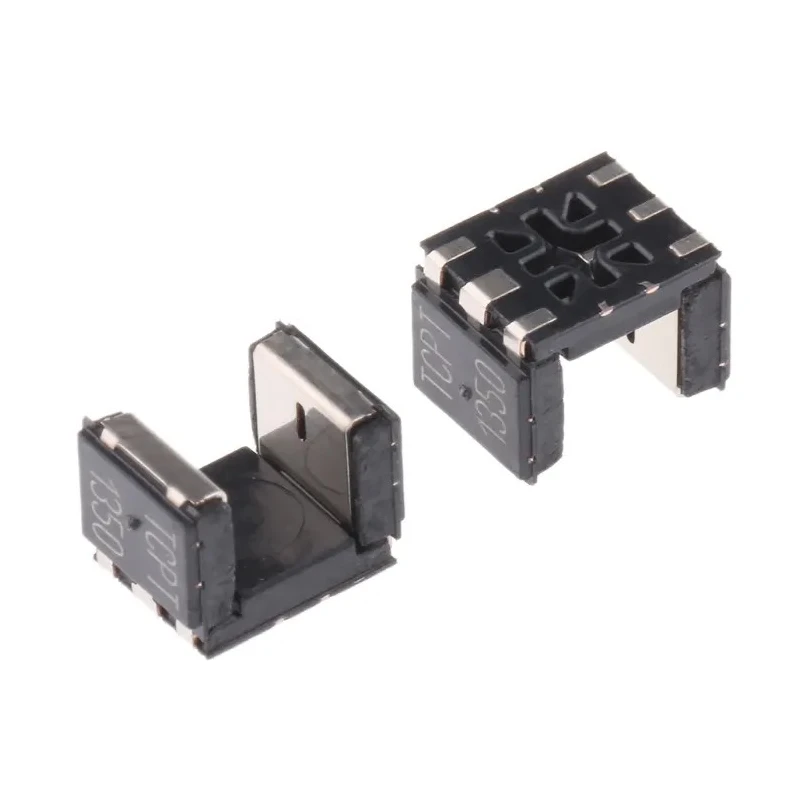

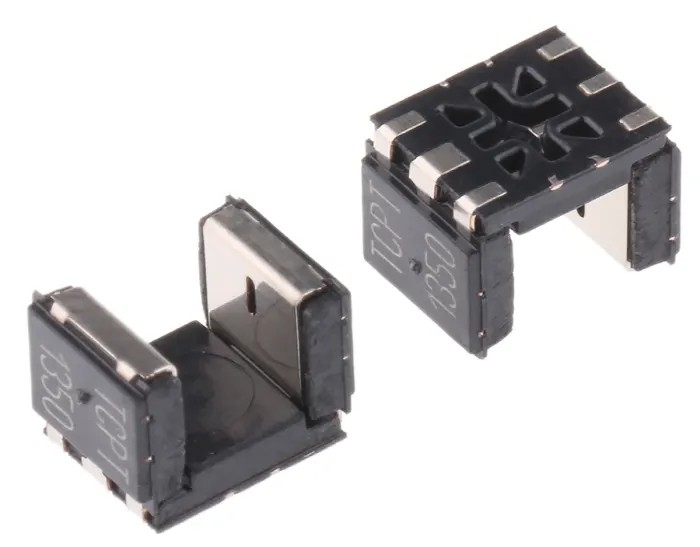

Vishay Surface Slotted Optical Switch Transistor Output TCPT1350X01
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 5.5mm |
| Model | TCPT1350X01 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Surface |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 125°C |
| Package Type | Leaded |
| Minimum Operating Temperature | -40°C |
| Slot Width | 3mm |
| Number Of Channels | 1 |
| Output Device | Transistor |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Typical Rise Time | 9μs |
| Typical Fall Time | 16μs |
| Automotive Standard | AEC-Q101 |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- This optical switch features a surface mount, six-pin leaded package.
- It has a slot width of 3 mm and dimensions of 5.5 mm length and 4 mm height and width.
- The device operates reliably between -40°C and 125°C, suitable for automotive and industrial environments.
- It provides a fast typical rise time of 9 μs and fall time of 16 μs for high-speed switching.
- The phototransistor detector and infrared emitter operate at a wavelength of 950 nm.
- Packaging is tape and reel, suitable for automated manufacturing processes.
- The switch includes an AEC-Q101 automotive standard certification ensuring robustness.
- Its miniature size and daylight blocking filter enhance performance in light-sensitive applications.
Product Description
Vishay TCPT1350X01 surface slotted optical switch with transistor output is engineered for reliable object interruption detection, counting, and encoder applications in industrial and automotive environments. It integrates an infrared emitter and phototransistor aligned face-to-face in a compact 6-pin leaded surface mount package measuring 24.5 x 6.3 x 10.8 mm (device level) and a slot width of 3.1 mm to sense precise interruptions.
This slotted optical switch features a fast response with a typical rise time of 9 μs and fall time of 16 μs, making it suitable for high-speed switching tasks. Operating temperatures range from -40°C to 125°C, providing robustness for harsh environments including automotive applications where it meets the AEC-Q101 standard.
The phototransistor detector has a typical output current under test of 4 mA and uses a 950 nm wavelength infrared emitter along with a daylight blocking filter to ensure stable detection under varying lighting conditions. The device comes in tape and reel packaging optimized for automated PCB assembly.
Applications include optical switches, photo interrupters, counters, and rotary encoders in industrial automation, automotive systems, and electronic instrumentation. This optical switch is designed to improve production efficiency through ready-to-use packaging for machinery insertion.
The compact and surface-mountable form factor allows easy integration on densely populated circuit boards. The product is RoHS compliant, ensuring environmental safety and regulatory adherence.
Choose Vishay TCPT1350X01 for reliable, high-performance slotted optical switching suitable for demanding industrial, automotive, and instrumentation applications. Explore full Vishay sensor and optical switch ranges at EnvMart for integration solutions.
Explore more products in our Slotted Optical Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably between -40°C and 125°C, making it suitable for harsh environments, including automotive applications.
The device has dimensions of 24.5 mm in length, 6.3 mm in width, and 10.8 mm in height.
The slot width of the TCPT1350X01 is 3 mm, allowing for precise object interruption detection.
It features a typical rise time of 9 μs and a fall time of 16 μs, enabling high-speed switching capabilities.
This optical switch has a transistor output, utilizing a phototransistor detector for signal processing.
The infrared emitter in this unit operates at a wavelength of 950 nm, which is suitable for various detection applications.
It is packaged in tape and reel format, optimized for automated PCB assembly processes.
The TCPT1350X01 complies with the AEC-Q101 automotive standard, ensuring robustness for automotive applications.
This model features a single channel, designed for object interruption detection and counting applications.
The TCPT1350X01 is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
This optical switch is designed for surface mounting, allowing for easy integration into circuit boards.
It is suitable for applications such as optical switches, photo interrupters, counters, and rotary encoders in industrial and automotive systems.
