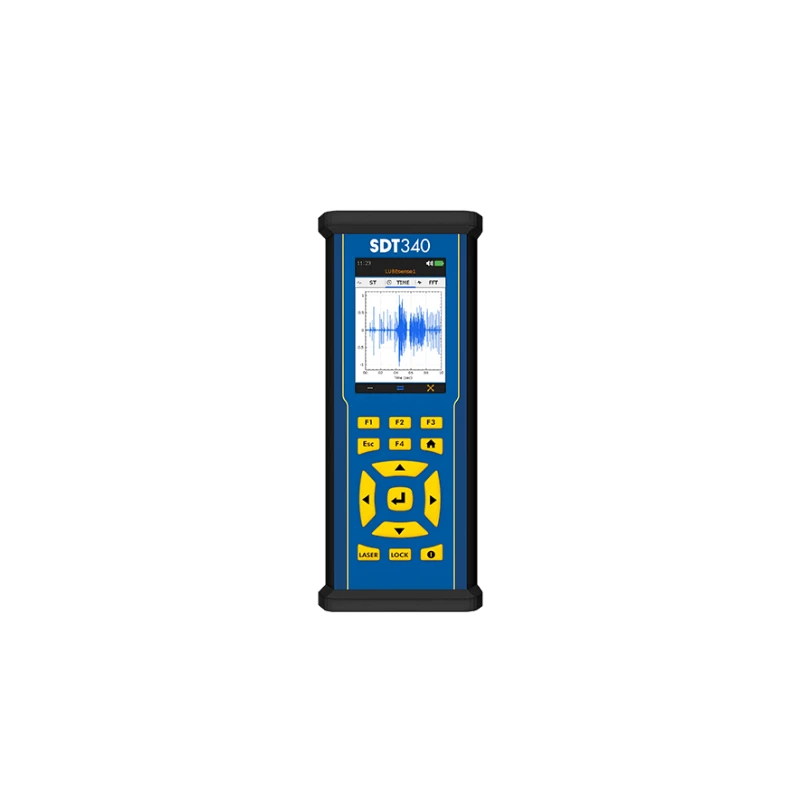

Ultrasound Detector Devices 340
Specifications
| Frequency range | 20 kHz to 50 kHz (ultrasound). 10 Hz to 10 kHz (vibration) |
|---|---|
| Dimensions | L x W x H 221 x 93.5 x 44 mm (8.7 x 3.7 x 1.7 inches) |
| Weight | 720 g (25.4 oz)| including battery |
| Housing | Extruded aluminum| shockproof rubber protections |
| Data memory | 4.2 GB allowing the storage of 71 minutes of the signal sampled at 28 kHz or 286 minutes at 32 kHz |
| Dual Sensor Inputs | One for ultrasound measurement and one for vibration |
| Time signal and spectrum | On-screen time waveform and FFT. Panning and zooming for signal navigation. Display of the 10 highest values |
| Sampling range | 32| 64| 128 and 256 kHz oversampling FocUS Mode |
| Signal length per recording | 600 seconds (32 kHz sample rate) or 150 seconds (128 kHz focUS Mode ) |
| On-board measurements | Ultrasound| Vibration| Infrared temperature and Tachometer |
Key Features
- Wired headset and wireless Bluetooth headset. The SDT340 is compliant to noise exposure health and safety requirements when using SDT provided models
Product Description
Ultrasound Detector Devices 340 advanced condition monitoring platform to assess the health of your assets and the reliability of your facility UAS lite is a data storage and analysis program to manage the data collected from the SDT340Create data trees and assign sensors in real-time on the SDT340Analyze the collected datas Time waveform and Spectrum (FFT) with Delta Cursors and Periodic CursorsTrend static data with SDTs 4CI condition indicators
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency range is from 20 kHz to 50 kHz for ultrasound and 10 Hz to 10 kHz for vibration.
The dimensions are 221 mm in length, 93.5 mm in width, and 44 mm in height, which is approximately 8.7 x 3.7 x 1.7 inches.
It weighs 720 g, including the battery, which is approximately 25.4 oz.
The housing is made of extruded aluminum with shockproof rubber protections.
It has a data memory capacity of 4.2 GB, allowing storage of 71 minutes of signal sampled at 28 kHz or 286 minutes at 32 kHz.
It can perform measurements for ultrasound, vibration, infrared temperature, and tachometer.
The maximum signal length per recording is 600 seconds at a 32 kHz sample rate or 150 seconds in 128 kHz focUS Mode.
Yes, it supports dual sensor inputs—one for ultrasound measurement and one for vibration.
It includes on-screen time waveform and FFT, with panning and zooming for signal navigation and display of the 10 highest values.
Yes, it is compliant with noise exposure health and safety requirements when using the provided models.
The device uses UAS lite, a data storage and analysis program to manage the data collected from the Ultrasound Detector Devices 340.
