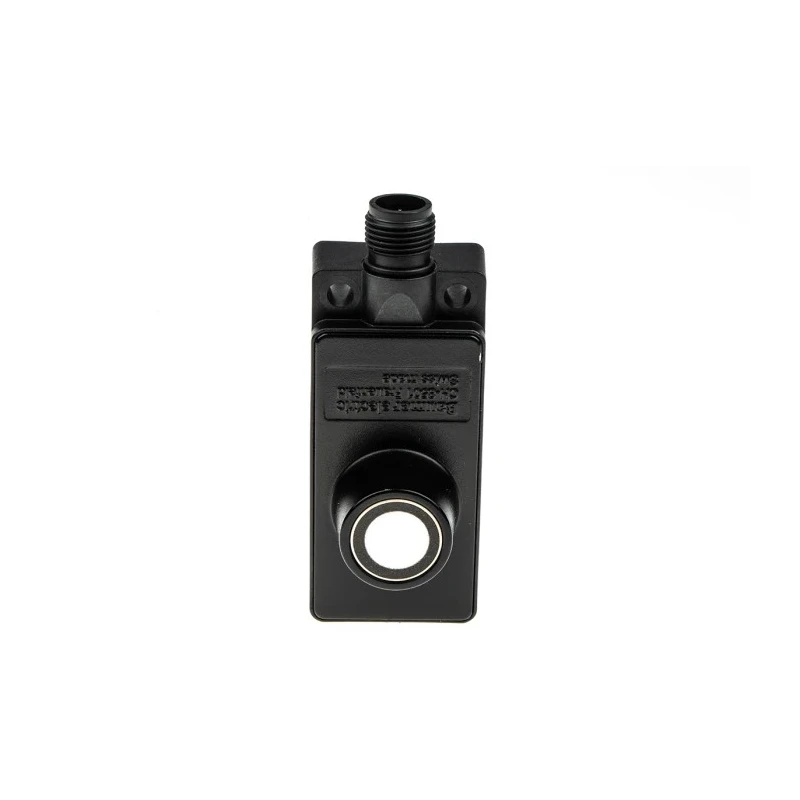

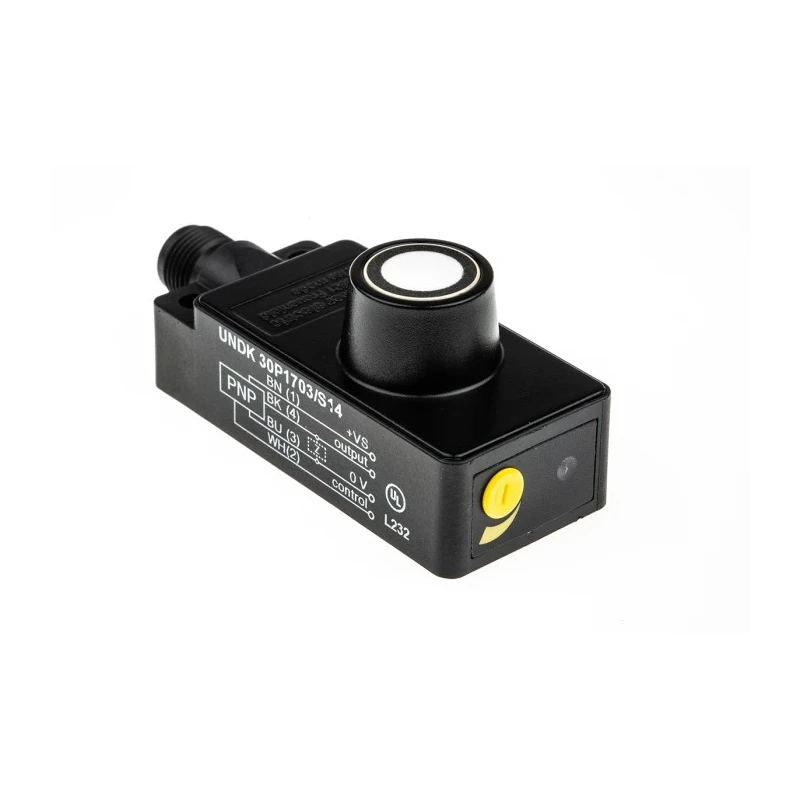

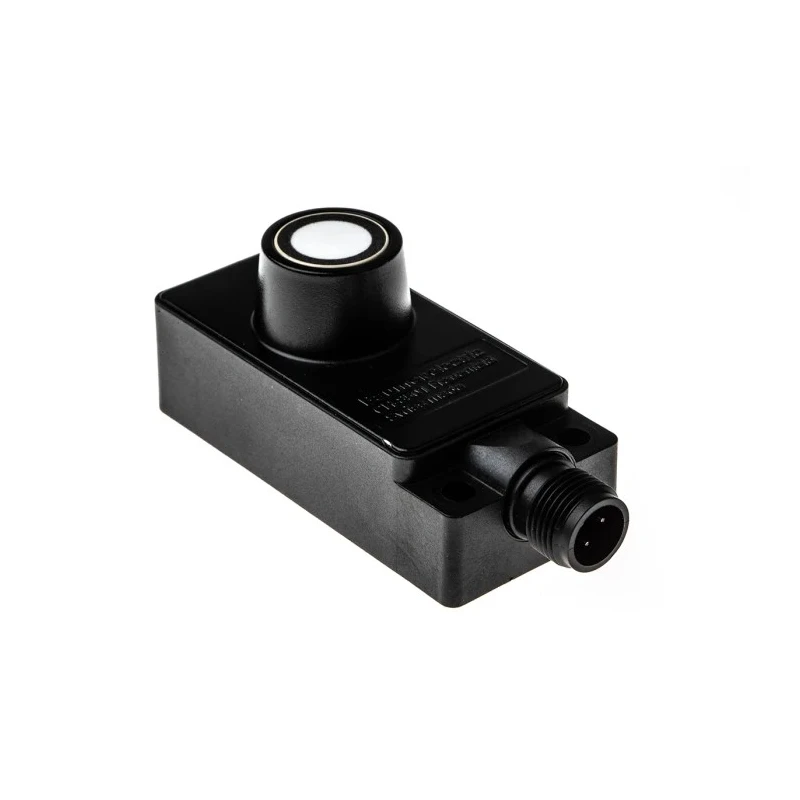

Baumer Block Ultrasonic Proximity Sensor, M12 x 1, 1000 mm Range, 200 mA PNP, 30V, IP67, UNDK 30P1703/S14

Free Delivery in India | Lowest Global Shipping Charges

Baumer Block Ultrasonic Proximity Sensor, M12 x 1, 1000 mm Range, 200 mA PNP, 30V, IP67, UNDK 30P1703/S14

Name: Baumer Block Ultrasonic Proximity Sensor, M12 x 1, 1000 mm Range, 200 mA PNP, 30V, IP67, UNDK 30P1703/S14
Brand: Baumer
SKU: 84121
Price: 857.57 USD
Availability: InStock



Category Ultrasonic Sensors Brand Baumer Condition New

Specifications

Country of Origin	Switzerland
Brand	Baumer
Dimensions	65(excl conn.) x 30 x 31 HWD mm
Response time	50ms
Length	65mm
Model	UNDK 30P1703/S14
Depth	31.1mm
IP Rating	IP67
Width	3mm
Housing Material	Die Cast Zinc
Output type	PNP
Maximum Operating Temperature	60°C
Thread Size	M12 x 1
Minimum Operating Temperature	-10°C
Switching Current	200mA
Terminal type	M12 Connector
Body Style	Block
Maximum dc Voltage	30V dc
Standards/Approvals	CE
Maximum Supply Voltage	30V
Maximum Detection	1000mm

Key Features

Block style ultrasonic proximity sensor with precise non-contact distance measurement up to 1000 mm.
Housed in a die cast zinc body for durability in demanding environments.
Features M12 connector and compact dimensions for easy industrial integration.
Supports PNP, normally open output with 200 mA switching current capability.
Wide operating voltage range up to 30V DC with reverse polarity and short-circuit protection.
IP67 ingress protection for use in harsh or wet environments.
Operates from -10°C to 60°C to suit a broad range of industrial settings.
Adjustable sensitivity and response time as low as 50 ms.

Product Description

The Baumer UNDK 30P1703/S14 is a high-performance block ultrasonic proximity sensor designed for reliable non-contact distance measurement in industrial automation and machinery applications. Utilizing advanced ultrasonic technology, it can sense objects up to 1000 mm away regardless of surface texture, color, or transparency, making it ideal for material handling, packaging lines, and automated production systems.

This sensor comes in a robust die cast zinc housing to ensure longevity and resistance to mechanical wear in challenging environments. Its block form factor, combined with a threaded M12 connection, allows for straightforward installation in panels, conveyors, and control systems. The sensor's compact size, with a length of 65 mm, width of 30 mm, and depth of 31.1 mm, reduces the installation footprint while offering secure mounting options.

Featuring a PNP output type (normally open), the sensor supports switching currents up to 200 mA, enabling seamless integration with most industrial control circuits and PLCs. A wide operating voltage (up to 30V DC) ensures compatibility with standard industrial power supplies. Users benefit from adjustable sensitivity through onboard potentiometer control, optimizing performance for specific object detection tasks.

The sensor includes built-in short circuit and reverse polarity protection for operational safety, with CE certification confirming compliance with international standards. An IP67 rating guarantees resistance to dust and powerful water jets, making this sensor suitable for wet washdown zones and other harsh industrial environments. LED status indicators provide clear operational feedback to technicians and operators.

With a fast 50 ms response time, the UNDK 30P1703/S14 can keep up with dynamic assembly lines and fast-moving applications, helping to prevent damage, ensure product flow, and maintain safety. It operates reliably between -10°C and 60°C, covering most factory and process temperature ranges.

Explore more Baumer sensors and industrial automation devices in our Ultrasonic Sensors catalog at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum detection range of this model is 1000 mm, allowing for reliable non-contact distance measurement.

This unit features a PNP output type, specifically a normally open configuration, supporting switching currents up to 200 mA.

The dimensions of the sensor are 65 mm in length, 30 mm in width, and 31.1 mm in depth, excluding the connector.

It operates with a maximum supply voltage of 30V DC, making it compatible with standard industrial power supplies.

The response time for this sensor is 50 ms, allowing it to keep up with fast-moving applications.

This model has an IP67 rating, ensuring it is resistant to dust and can withstand powerful water jets, suitable for harsh environments.

The housing of the sensor is made from die cast zinc, providing durability in demanding industrial settings.

It operates reliably within a temperature range of -10°C to 60°C, suitable for various industrial applications.

The sensor is equipped with an M12 connector, facilitating easy installation in industrial environments.

This sensor is CE certified, indicating compliance with international standards for safety and performance.

The sensor includes an onboard potentiometer that allows users to adjust sensitivity for optimized object detection tasks.

This ultrasonic proximity sensor is ideal for material handling, packaging lines, and automated production systems due to its reliable distance measurement capabilities.
