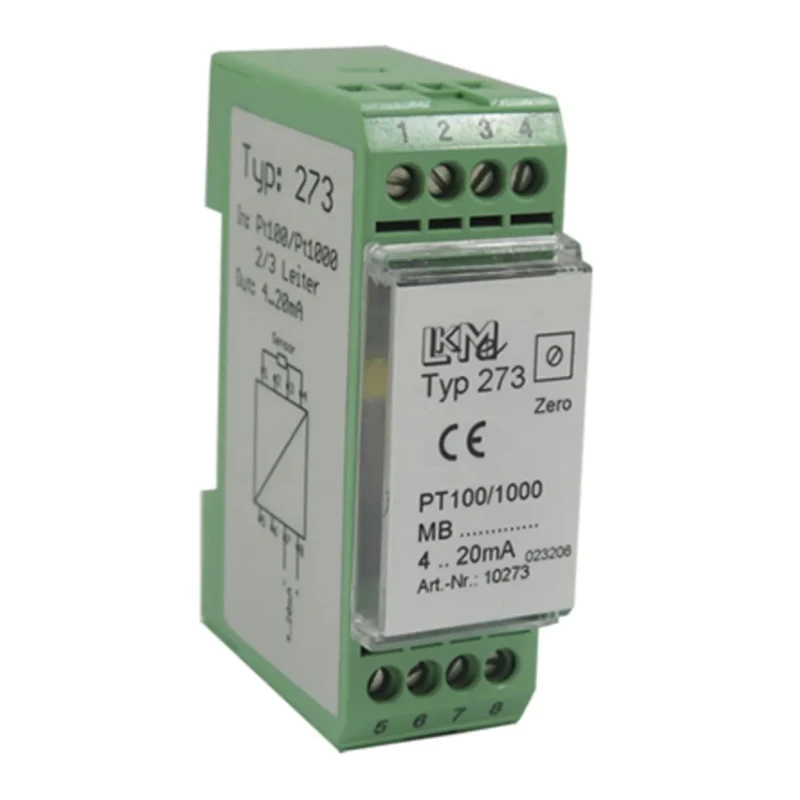

Electrotherm Digital Configurable Measuring Transducer Pt100/Pt1000 35V, -25°C to 70°C LKM 273

Free Delivery in India | Lowest Global Shipping Charges

Electrotherm Digital Configurable Measuring Transducer Pt100/Pt1000 35V, -25°C to 70°C LKM 273

Name: Electrotherm Digital Configurable Measuring Transducer Pt100/Pt1000 35V, -25°C to 70°C LKM 273
Brand: Electrotherm
SKU: 273403
Price: 130.87 USD
Availability: InStock



Category Transducer Brand Electrotherm Condition New

Specifications

Country of Origin	Germany
Resolution	14 bit
Brand	Electrotherm
Dimensions	75x25x53mm (HxWxD)
Operating Temperature Range	- 25°C to 70°C
Model	LKM 273
Depth	53mm
Gross Weight	approx.60g
Input	Pt100/Pt1000 self-detecting, 2/3- wire circuit
Output type	4 to 20 mA
Series	LKM 273
Measuring rate	2/s
Temperature Coefficient	0.015K/°C set temperature range 0 to 100°C
Linearity error	0.1%FS
Maximum Operating Temperature	70°C
Current consumption	max. 21mA
Minimum Operating Temperature	-25°C
Measurement Current	0.25 mA
Short Circuit	4mA
Clamping Range	0.2 to 2.5mm² screw clamps
Maximum Supply Voltage	35V
Minimum Temperature Input	-100°C
Maximum Temperature Input	600°C
Probe break	20mA
Overall measuring range	Pt100: -100 to 600°C, Pt1000:-100 to 300°C, adjustable via DIP-switch

Key Features

Supports 13 measuring ranges configurable via 4 DIP switches.
Automatic detection of sensor type for 2- or 3-wire circuits.
Operating temperature range from -25°C to 70°C.
Compact dimensions of 75x25x53mm for DIN rail mounting.
Features linearity error of 0.1% and high resolution of 14 bit.
Robust screw clamps for 0.2 to 2.5mm² cables.
Low current consumption with max 21mA typical loop voltage from 10 to 35 Vdc.

Product Description

Electrotherm LKM 273 is a precision digital measuring transducer configured for Pt100 and Pt1000 temperature sensors, providing an output current of 4 to 20 mA for industrial temperature monitoring and control applications.

The device is designed for easy installation on a 35 mm top hat DIN rail and supports 13 selectable measuring ranges between -100°C and 600°C via 4 DIP switches, allowing precise adaptation to various process requirements.

The transducer automatically detects the connected sensor type (Pt100 or Pt1000) and supports both 2-wire and 3-wire sensor configurations. It includes a zero point controller for fine calibration adjustments.

Engineered for reliability, the LKM 273 operates in ambient temperatures from -25°C to 70°C and is housed in a compact enclosure measuring 75x25x53 mm. The device features screw clamps compatible with 0.2 to 2.5 mm² wire sizes, ensuring secure and stable electrical connections.

With a linearity error as low as 0.1% full scale and a high resolution of 14 bits, this transducer guarantees accurate and stable temperature readings. It also boasts robust EMC compliance with EN 61326-1:2006 and EN 61326-2-3:2006 standards, suitable for use in industrial, automation, laboratory, HVAC, and manufacturing environments.

Supports 13 measuring ranges configurable via DIP switches. Automatic sensor detection and 2/3-wire circuit compatibility. Compact and lightweight design with approx. 60 g weight. Low power consumption, max 21mA, with loop voltage 10 to 35 Vdc.

Screw clamps for cable diameter 0.2 to 2.5 mm². Temperature coefficient 0.015 K/°C for 0 to 100°C range. Operating temperature range -25°C to 70°C. Certified to EMC standards EN 61326-1:2006 and EN 61326-2-3:2006.

This Electrotherm LKM 273 digital transducer is ideal for precise temperature measurement and control applications requiring configurable ranges and reliable output current signalling in demanding industrial environments.
