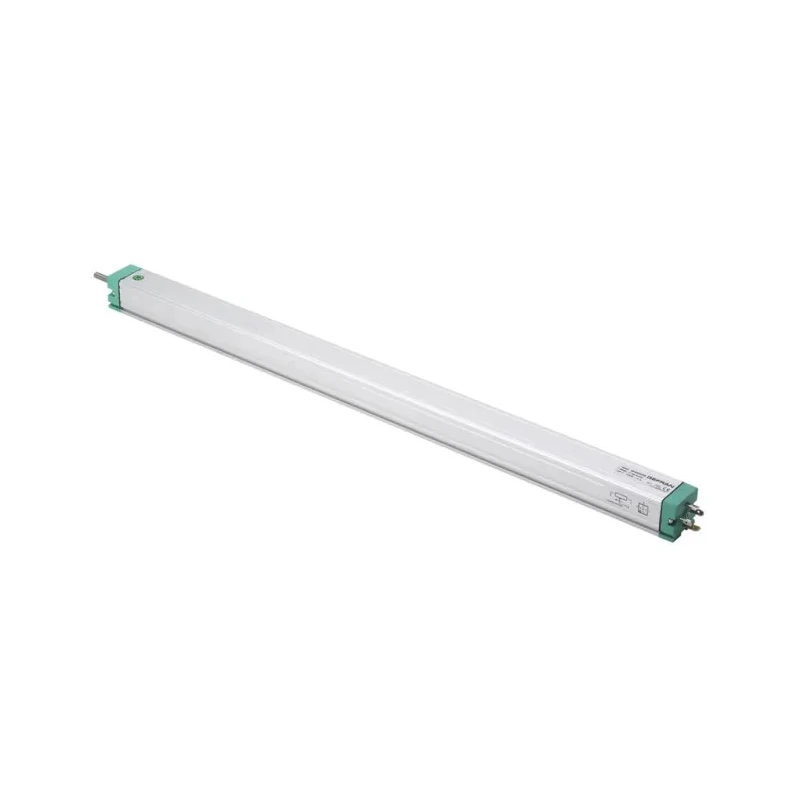

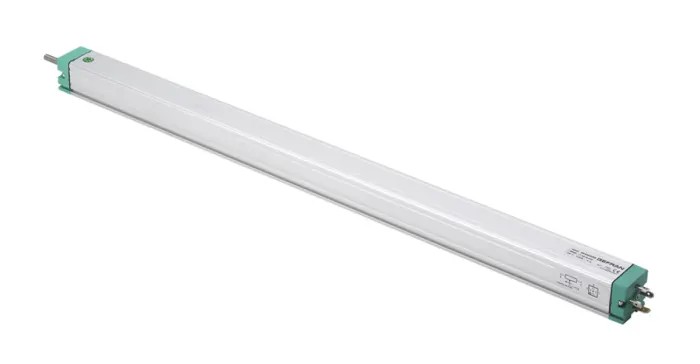

Gefran LT Series Linear Transducer Connector 60V F003508/ LT-M-0130-S 0000X000X00

Free Delivery in India | Lowest Global Shipping Charges

Gefran LT Series Linear Transducer Connector 60V F003508/ LT-M-0130-S 0000X000X00

Name: Gefran LT Series Linear Transducer Connector 60V F003508/ LT-M-0130-S 0000X000X00
Brand: Gefran
SKU: 150579
Price: 273.32 USD
Availability: InStock



Category Transducer Brand Gefran Condition New

Specifications

Country of Origin	Italy
Brand	Gefran
Model	F003508/ LT-M-0130-S 0000X000X00
IP Rating	IP60
Housing Material	Anodised Aluminium, Polyamide 66
Series	LT
Overall Width	378mm
Maximum Operating Temperature	100°C
Resistance	5kΩ
Overall height	34.5mm
Resistance Tolerance	±20 %
Interface Type	Connector
Standards/Approvals	CE, RoHS
Maximum Supply Voltage	60V
Overall Depth	33mm

Key Features

The LT series features linear movement sensors for servo control cylinder position.
Connector outputs use the DIN 43650 - ISO 4400 4pins type interface.
Housing is made from anodised aluminium and Polyamide 66 for durability.
Rated with IP60 protection and CE and RoHS compliant standards.
Operating temperature supports up to 100°C for industrial applications.
Resistance value is specified as 5kΩ with a tolerance of ±20%.
Overall dimensions are 378mm width, 34.5mm height, and 33mm depth.
Manufactured in Italy with consistent electrical output over the theoretical stroke range.

Product Description

Gefran F003508/ LT-M-0130-S 0000X000X00 linear transducer connector is a precision sensor specifically designed for linear movement detection in automation and control gear applications. Operating at a maximum supply voltage of 60V, it provides reliable feedback for servo cylinder positioning and is ideal for industrial use.

This transducer belongs to the LT series, known for slide movement sensors that maintain stable electrical output signals without variation throughout the theoretical electrical stroke. The connector features a DIN 43650 - ISO 4400 4pins interface, ensuring compatibility with standard industrial control systems.

The robust housing combines anodised aluminium for structural strength with Polyamide 66 for insulation and resistance to harsh environments. It is rated IP60, offering protection against dust ingress, and has certifications including CE and RoHS, confirming compliance with European safety and environmental standards.

Designed for demanding temperature conditions, this sensor supports operation up to 100°C, making it suitable for a wide variety of industrial environments. The sensor has a resistance of 5kΩ with a tolerance of ±20%, supporting accurate position measurement.

The linear transducer offers precise servo control for cylinder positioning. Durable housing materials provide longevity and protection. Connector output adheres to industry-standard DIN 43650 - ISO 4400 specifications. IP60 rating ensures suitability for dust-prone industrial areas.

Compliant with CE and RoHS standards for safety and environmental care. Wide operating temperature up to 100°C allows flexible use. Accurate resistance characteristics support precise measurement. Compact size dimensions enable integration into various assemblies.

Manufactured in Italy, this linear Transducer connector suits industrial automation, manufacturing machinery, and motion control systems where reliability and precision are critical. It is an essential component for applications requiring dependable linear movement feedback.

Explore the range of Gefran sensors and connectors available at EnvMart for comprehensive industrial automation solutions.
