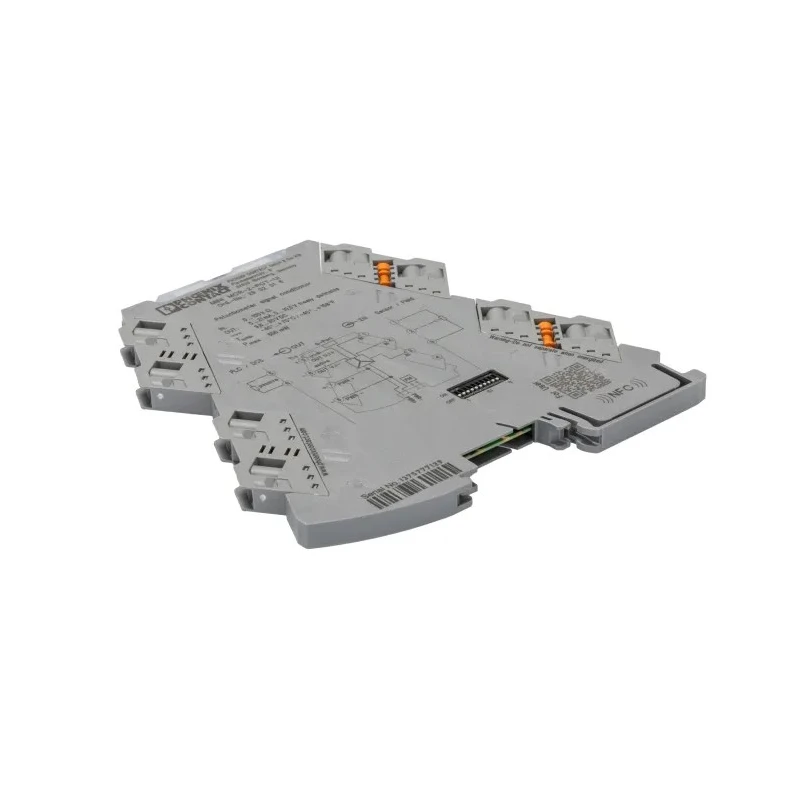

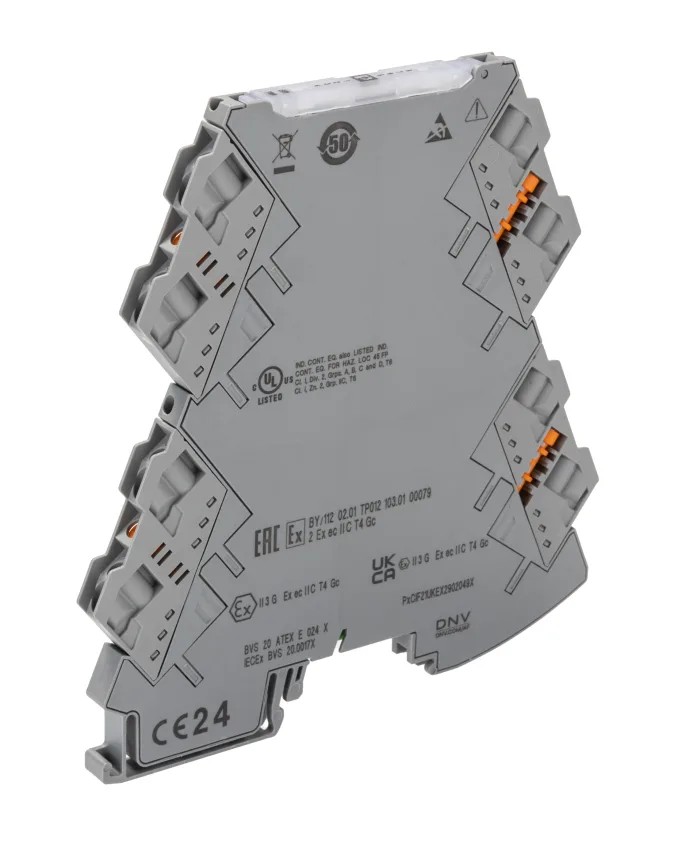

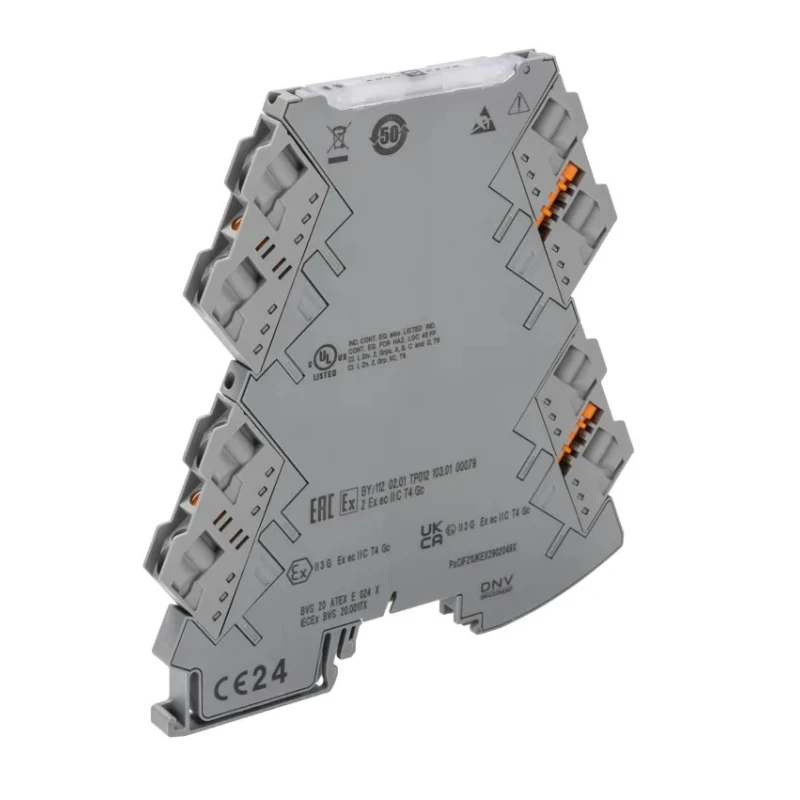

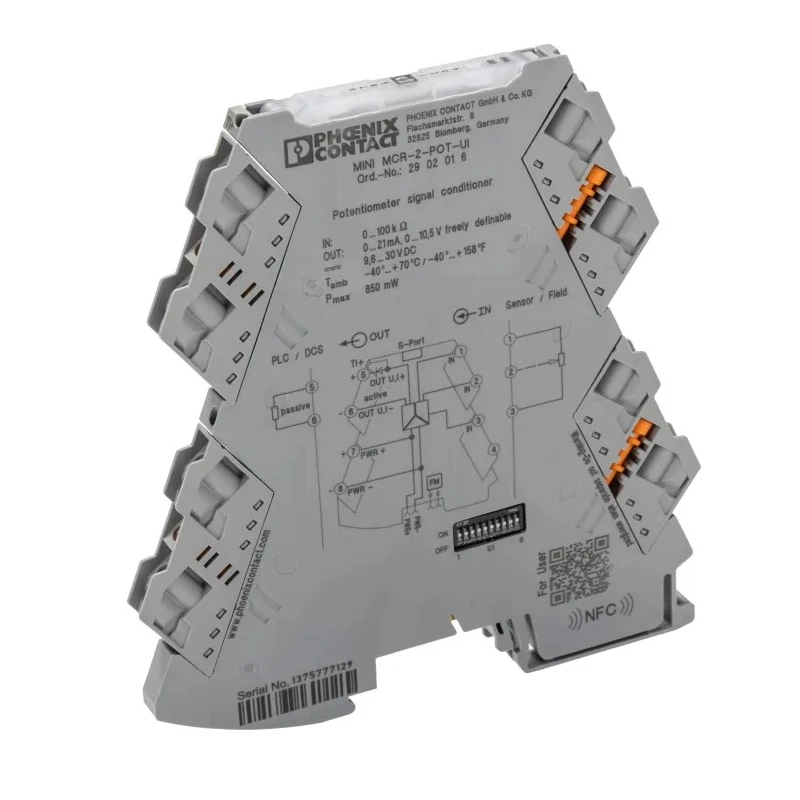

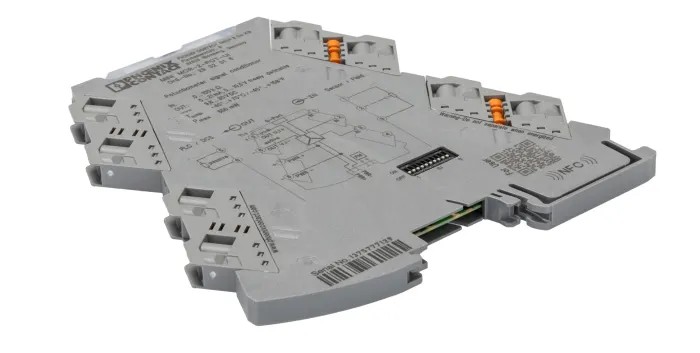

Phoenix Contact MINI MCR Series Configurable Transducer, Resistance Input, Current/Voltage Output, 30V dc, 9.6 V dc 2902016

Phoenix Contact MINI MCR Series Configurable Transducer model 2902016 features a resistance input and provides current or voltage outputs with supply voltages from 9.6 V to 30 V DC. Designed for industrial automation, electronics, and electrical applications, this device converts resistance signals within the 100 Ω to 100 kΩ range into usable current (0 to 24.6 mA) or voltage outputs (0 to 12.3 V), enabling seamless integration with control and monitoring systems.

The unit's compact form factor supports DIN rail mounting, simplifying installation into control panels and enabling easy wiring and service. With a single channel configuration, it is tailored for straightforward signal conditioning tasks without unnecessary complexity.

Engineered to operate in temperature extremes from -40°C to +70°C, and with an IP20 rating, the transducer delivers robust performance in typical industrial environments. Its ATEX certification authorizes its use in certain hazardous areas, ensuring safety compliance. The device is RoHS compliant, meeting modern environmental standards.

Common industrial use cases include real-time resistance monitoring from resistive sensors, conversion of resistance signals in automated systems, integration within control panels for precise measurement, and deployment in testing fixtures for electronic components. Its micro USB interface facilitates easy configuration and communication with modern engineering software environments.

Input resistance range from 100 Ω to 100 kΩ allows flexible sensor compatibility. Output configurable as 0 to 24.6 mA current or 0 to 12.3 V voltage for versatile signal processing. Operates on a supply voltage range of 9.6 to 30 V DC for varied power environments.

DIN rail mountable compact design enables easy installation in control panels. Single channel configuration simplifies integration and reduces complexity. Functions reliably in temperatures ranging from -40°C to +70°C for demanding industrial conditions.

IP20 rated enclosure provides protection against solid objects ensuring durability. RoHS compliant and ATEX hazardous area certified enhancing safety and compliance.

This product is manufactured in Germany and is ideal for industrial, laboratory, automation, and testing applications requiring accurate resistance to current/voltage signal conversion. Browse EnvMart for similar Phoenix Contact signal conditioning and Transducer products to suit your project needs.
