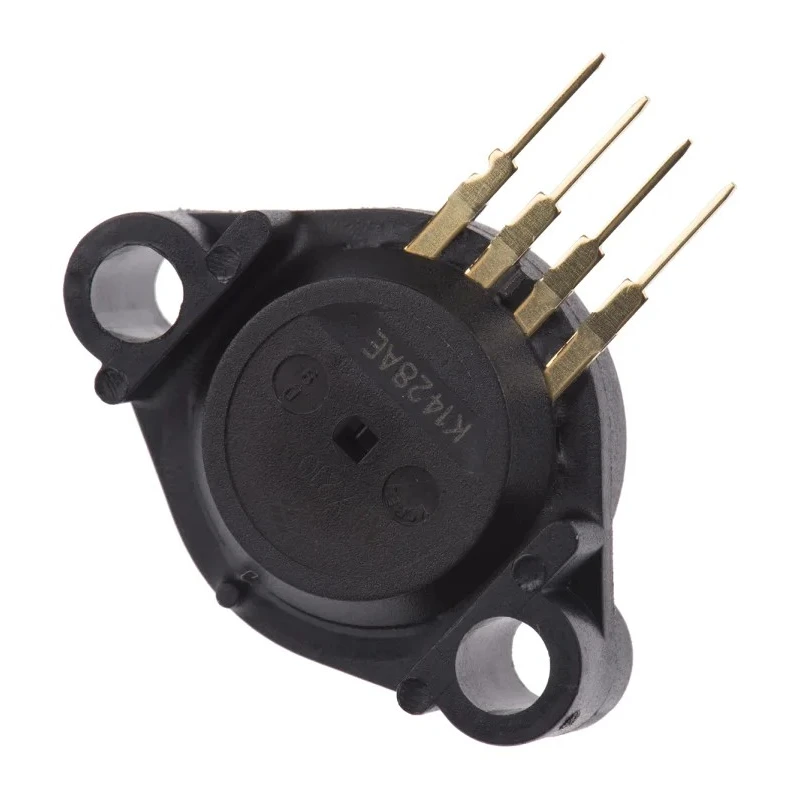

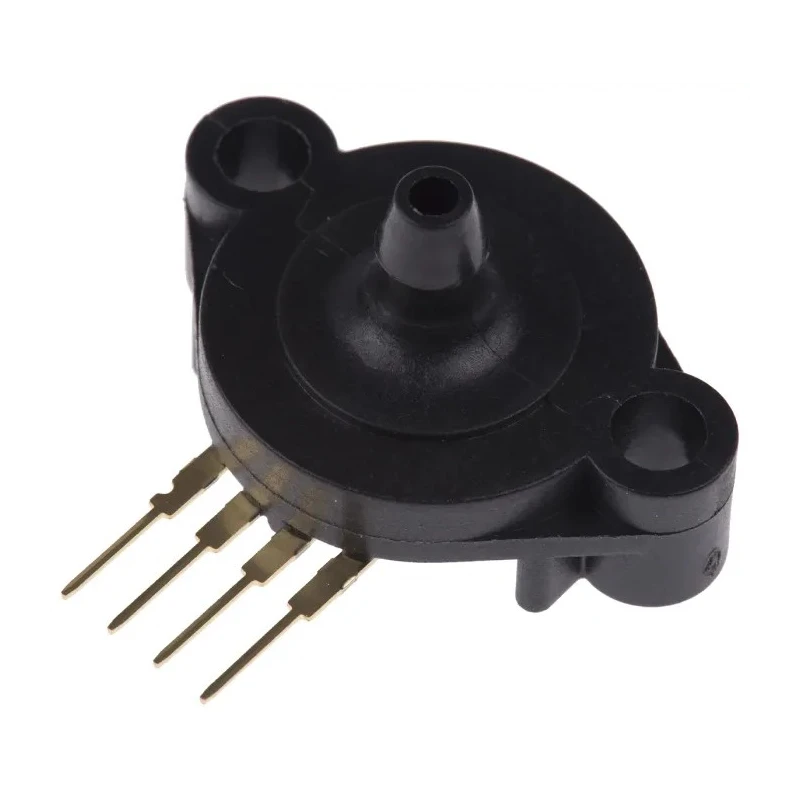

NXP Absolute Pressure Sensor Through Hole 4 Pin Case 344F-01, 10V-16V Supply, 125°C Max Operating Temperature MPX2102ASX
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Maximum Operating Pressure | 100 kPa |
| Height | 19.3mm |
| Length | 28.45mm |
| Model | MPX2102ASX |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Through Hole |
| Series | MPX2102ASX |
| Maximum Operating Temperature | 125°C |
| Port Type | Single Axial Barbed |
| Package Type | Case 344F-01 |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 0.4mV/kPa |
| Maximum Output Voltage | 40mV |
| Pin Count | 4 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 10V |
| Minimum Output Voltage | -2mV |
| Minimum Operating Pressure | 20kPa |
| Maximum Overload Pressure | 400kPa |
Key Features
- This sensor operates with a supply voltage between 10V and 16V.
- It features a typical sensitivity of 0.4mV/kPa for precise measurement.
- The sensor is packaged in Case 344F-01 with through-hole mounting and 4 pins.
- Designed to operate up to a maximum temperature of 125°C, suitable for harsh environments.
- Maximum operating pressure is rated at 100 kPa with an overload pressure of 400 kPa.
- The device includes a single axial barbed port type for pressure connection.
- Output voltage ranges from -2mV minimum to 40mV maximum ensuring accurate signal output.
- Operating temperature range extends from -40°C to 125°C for wide application compatibility.
Product Description
NXP MPX2102ASX Absolute Pressure Sensor Through Hole 4 Pin Case 344F-01 offers high precision pressure measurement for a variety of industrial and electronic applications. The sensor operates with a supply voltage ranging from 10V to 16V and delivers a typical sensitivity of 0.4mV/kPa, ensuring accurate absolute pressure detection.
Its robust design supports operation in harsh conditions with a maximum operating temperature of 125°C and an operating pressure up to 100 kPa. The sensor is capable of handling an overload pressure of 400kPa, making it suitable for demanding industrial environments.
The package features a through-hole mount and four pins to facilitate reliable PCB integration. Its single axial barbed port design allows easy connection to pressure lines. Compact dimensions of 19.3mm height and 28.45mm length support equipment miniaturization.
This sensor has electrical output voltage range from -2mV to 40mV, providing stable and responsive signal behavior. It is ideal for use in industrial process control, HVAC monitoring, instrumentation, automotive sensing, and other applications requiring precise pressure sensing over a wide temperature range from -40°C to 125°C.
This absolute pressure sensor provides stable, accurate readings for various applications. Suitable for harsh industrial and automotive environments with wide temperature tolerance. Features four-pin through-hole mount and compact Case 344F-01 packaging.
Single axial barbed port design ensures easy integration with pressure lines. High overload pressure rating enhances sensor durability in demanding conditions. Compact form factor allows flexible mounting in tight spaces.
Stable low voltage output signal from -2mV to 40mV ensures precise measurements.
This product belongs to the NXP MPX2102ASX series, known for reliable and efficient pressure sensing solutions. It supports industrial, laboratory, automotive, and HVAC applications where accurate pressure monitoring is critical. Explore the extensive NXP sensor catalog and related Pressure Sensor ICs at EnvMart for all your precision sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage ranging from 10V to 16V.
The maximum operating pressure is rated at 100 kPa.
The operating temperature range extends from -40°C to 125°C.
It features a typical sensitivity of 0.4mV/kPa for precise measurement.
It includes a single axial barbed port type for pressure connection.
The sensor has a height of 19.3mm and a length of 28.45mm.
The output voltage ranges from -2mV minimum to 40mV maximum.
The sensor can handle an overload pressure of 400 kPa.
It features a through-hole mounting design with four pins.
It is suitable for industrial process control, HVAC monitoring, instrumentation, and automotive sensing.
The country of origin is India.
The minimum operating pressure is rated at 20 kPa.
