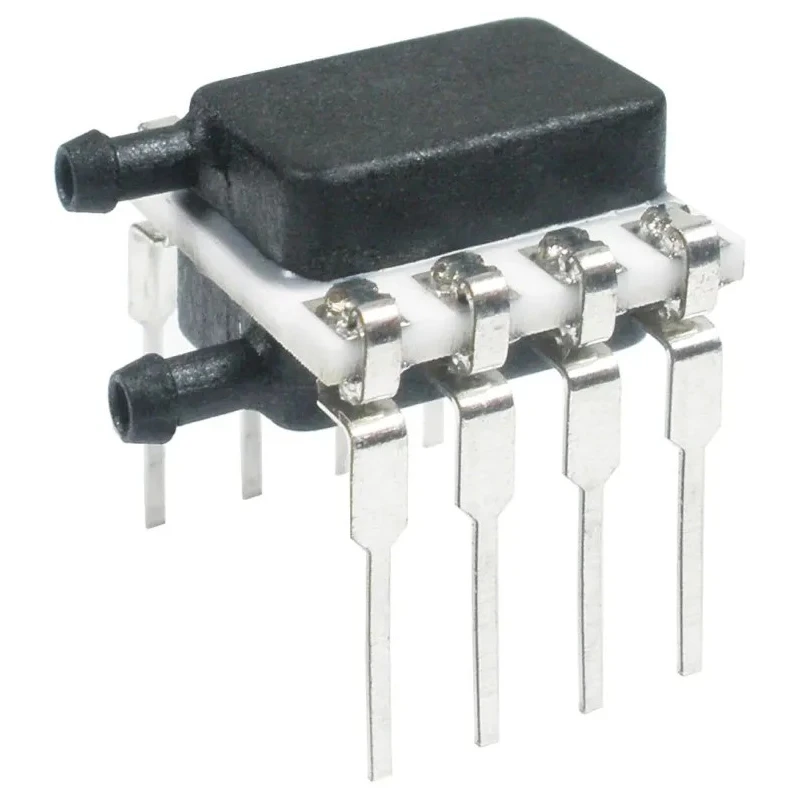

Honeywell Technologies Piezoresistive Pressure Sensor Board Mount DIP Package 8 Pin Dual Radial Barbed Port HSCDRRD002NDSA3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 2 in/H2O |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCDRRD002NDSA3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | -2in/H2O |
Key Features
- Designed for differential pressure measurements with high accuracy and low power consumption.
- Operates within a supply voltage range of 3.3V to 5V for versatile use.
- Capable of measuring pressure from -2 to 2 in/H2O across a wide temperature range (-20°C to +85°C).
- Compact board-mount DIP package with dimensions approximately 13.75mm height, 13.3mm width, and 10mm length.
- Dual radial barbed pressure ports simplify connection to tubing systems.
- Calibrated and temperature compensated for consistent sensitivity and offset.
- Complies with ISO 9001 manufacturing standards ensuring process quality.
- Suitable for various industrial and medical applications including HVAC control, gas flow instrumentation, and respiratory monitoring equipment.
Product Description
Honeywell HSCDRRD002NDSA3 is a high-precision piezoresistive pressure sensor designed for measuring differential pressure between two ports in board-mounted electronic systems. It features an 8-pin DIP package with dual radial barbed ports for easy tubing connections. The sensor operates from a single supply voltage ranging from 3.3V to 5V and offers an accuracy of ±0.25%, minimizing the need for software compensation.
The on-board ASIC provides real-time calibration and temperature compensation, enabling reliable performance across operating temperatures from -20°C to +85°C. With a maximum operating pressure of 2 in/H2O and a minimum pressure of -2 in/H2O, this sensor supports applications involving non-corrosive, non-ionic gases.
Mechanical dimensions of the sensor are compact, with a height of 13.75mm, width of 13.3mm, and length of 10mm, making it suitable for integration into compact electronics assemblies. Manufactured under ISO 9001 standards, it ensures consistent quality and durability.
This device is highly suitable for use in ventilation systems, respiratory monitoring, HVAC filter clog detection, variable air volume (VAV) control, gas flow instrumentation, flow calibrators, leak and differential pressure diagnostics, as well as laboratory gas chromatography and analyzers. Its extremely low power consumption supports battery-operated equipment and ensures extended operational life.
Designed for differential pressure measurement with ±0.25% accuracy. Highly stable calibration with temperature compensation via on-board ASIC. Dual radial barbed ports reduce installation complexity. Operates on 3.3V to 5V supply voltage range.
Compact DIP 8-pin package for easy board mounting. Wide operating temperature from -20°C to +85°C. Compliant with ISO 9001 quality standards. Ideal for HVAC, medical respiratory systems, gas flow and leak detection applications.
Explore more Pressure Sensor ICs from Honeywell at EnvMart for your electronic component and instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor is capable of measuring differential pressure from -2 to 2 in/H2O.
It offers an accuracy of ±0.25%, minimizing the need for software compensation.
It operates within a supply voltage range of 3.3V to 5V.
The compact dimensions of the sensor are approximately 13.75mm in height, 13.3mm in width, and 10mm in length.
It features dual radial barbed ports for simplified connection to tubing systems.
The sensor operates effectively within a temperature range of -20°C to +85°C.
Yes, it is calibrated and temperature compensated for consistent sensitivity and offset.
It complies with ISO 9001 manufacturing standards, ensuring process quality.
It is suitable for various applications including HVAC control, gas flow instrumentation, and respiratory monitoring equipment.
It is a piezoresistive pressure sensor designed for measuring differential pressure.
The DIP package features 8 pins.
The maximum operating pressure is 2 in/H2O.
