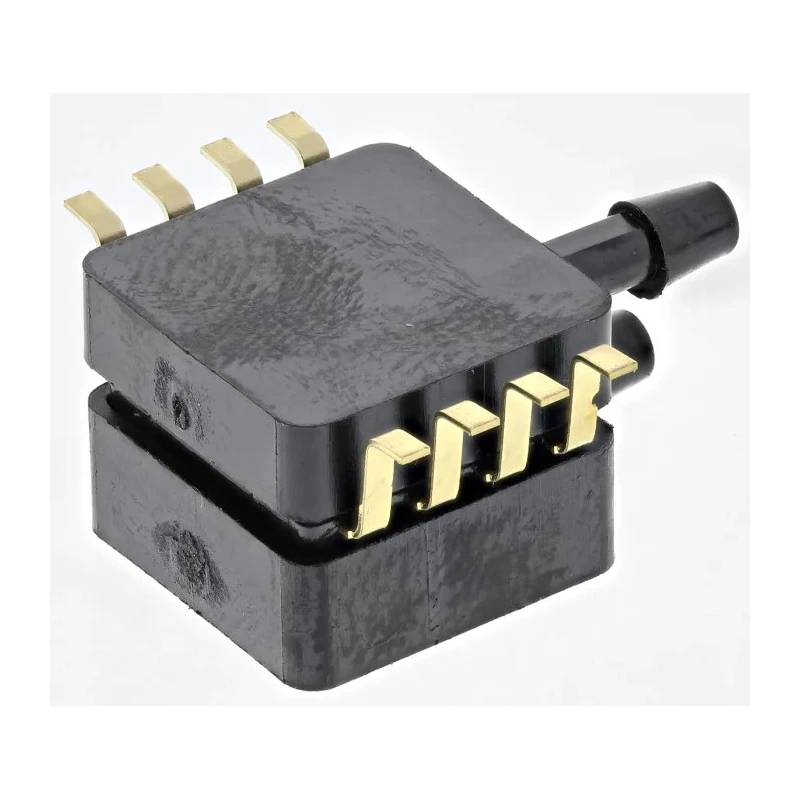

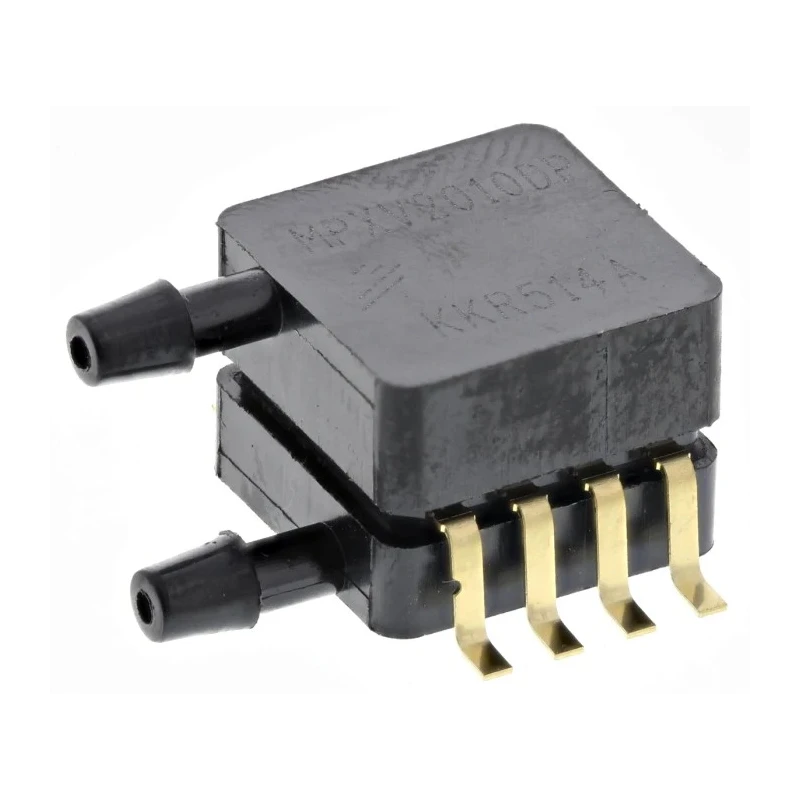

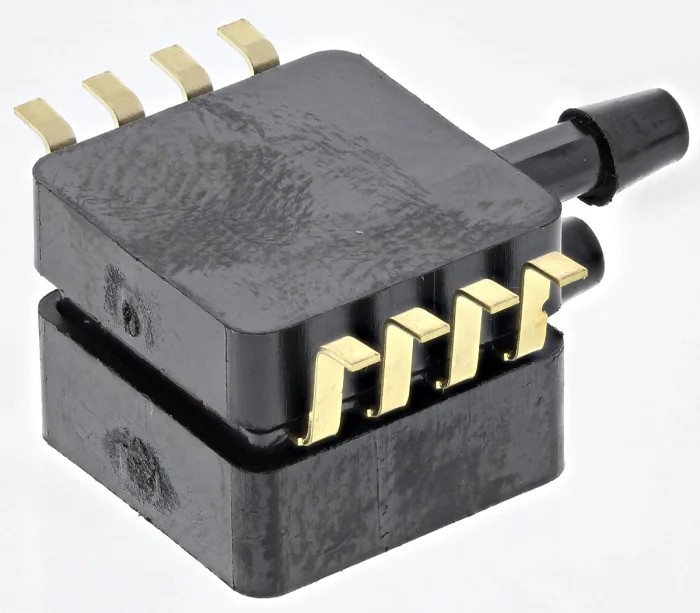

NXP Differential Pressure Sensor Surface Mount 5-Pin M-PAK-5 Package MPXV2010DP
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1 % |
| Brand | NXP |
| Maximum Operating Pressure | 10 kPa |
| Height | 29.24mm |
| Length | 29.85mm |
| Model | MPXV2010DP |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | MPXV2010DP |
| Maximum Operating Temperature | 125°C |
| Port Type | Dual Radial Barbed |
| Package Type | M-PAK-5 |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 2.5mV/kPa |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 26mV |
| Pin Count | 5 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 10V |
| Minimum Output Voltage | 24mV |
| Minimum Operating Pressure | 0kPa |
| Maximum Overload Pressure | 75kPa |
Key Features
- The sensor supports a maximum operating pressure of 10 kPa with overload capacity up to 75 kPa.
- Typical sensitivity is 2.5 mV/kPa, providing accurate differential pressure detection.
- The device operates within a supply voltage range of 10V to 16V.
- It offers an accuracy of ±1% and can function over a wide temperature range from -40°C to 125°C.
- The sensor features a dual radial barbed port for reliable differential pressure input connections.
- The package dimensions are approximately 29.85 mm in length and 29.24 mm in height.
- The design complies with RoHS standards, ensuring environmentally safe manufacturing.
- This sensor is not rated for automotive standards but is suitable for laboratory and industrial applications.
Product Description
NXP MPXV2010DP differential pressure sensor is a surface mount sensor with a 5-pin M-PAK-5 package designed for precise measurement of low differential pressure. Operating with a supply voltage range between 10V and 16V, it provides accurate output suitable for varied industrial, laboratory, and embedded system use cases.
This sensor operates with a maximum operating pressure of 10 kPa and can withstand overload pressures up to 75 kPa. Featuring typical sensitivity of 2.5 mV/kPa and an accuracy rating of ±1%, it reliably measures differential pressure with output voltages ranging from 24 mV to 26 mV. The operating temperature spans from -40°C to 125°C, enabling usage in harsh environmental conditions.
The dual radial barbed port configuration enables secure fluidic connections for differential pressure sensing. Packaged in a compact M-PAK-5 surface mount format with dimensions of 29.85 mm length and 29.24 mm height, this sensor integrates easily into compact electronics designs. It complies with RoHS environmental standards and is designed primarily for industrial, laboratory instrumentation, process control, HVAC, and embedded sensor applications. Note that this product is not suitable for automotive standard requirements.
The sensor supports a maximum operating pressure of 10 kPa with overload capacity up to 75 kPa. Typical sensitivity is 2.5 mV/kPa for precise pressure measurements. Operates from 10V to 16V supply voltage range. Accuracy is rated ±1%, ensuring reliable readings.
Dual radial barbed ports for differential pressure connections. Compact M-PAK-5 surface mount package measuring 29.85 mm x 29.24 mm. Wide operating temperature range from -40°C to 125°C. RoHS compliant design for environmental safety.
Output voltage ranges from 24 mV to 26 mV. Suitable for industrial, laboratory, HVAC, and embedded sensor applications.
This NXP pressure sensor is ideal for applications demanding high accuracy and stable differential pressure measurements. Discover more Pressure Sensor ICs in EnvMart’s Electronics & Electricals category for your industrial and embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 10 kPa, with an overload capacity of up to 75 kPa.
This model operates within a supply voltage range of 10V to 16V.
The accuracy of this sensor is rated at ±1%.
The typical sensitivity is 2.5 mV/kPa, allowing for precise differential pressure measurements.
The package dimensions are approximately 29.85 mm in length and 29.24 mm in height.
It can function over a wide temperature range from -40°C to 125°C.
The sensor features dual radial barbed ports for reliable differential pressure input connections.
Yes, the design complies with RoHS standards, ensuring environmentally safe manufacturing.
This sensor is suitable for industrial, laboratory instrumentation, process control, HVAC, and embedded sensor applications.
The output voltage ranges from 24 mV to 26 mV.
This model is designed for surface mounting with a 5-pin M-PAK-5 package.
The minimum operating pressure for this sensor is 0 kPa.
