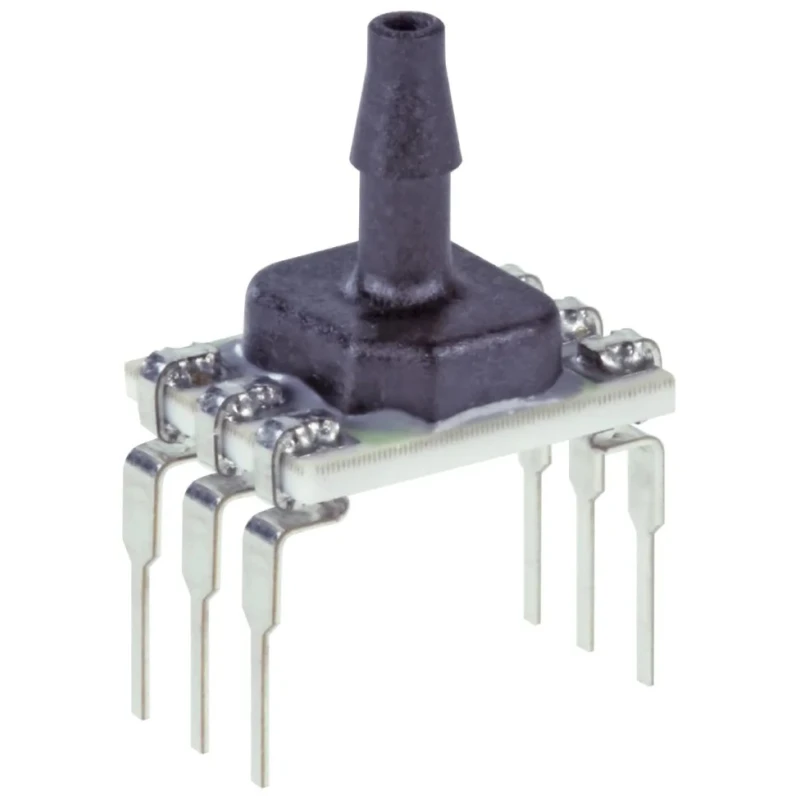

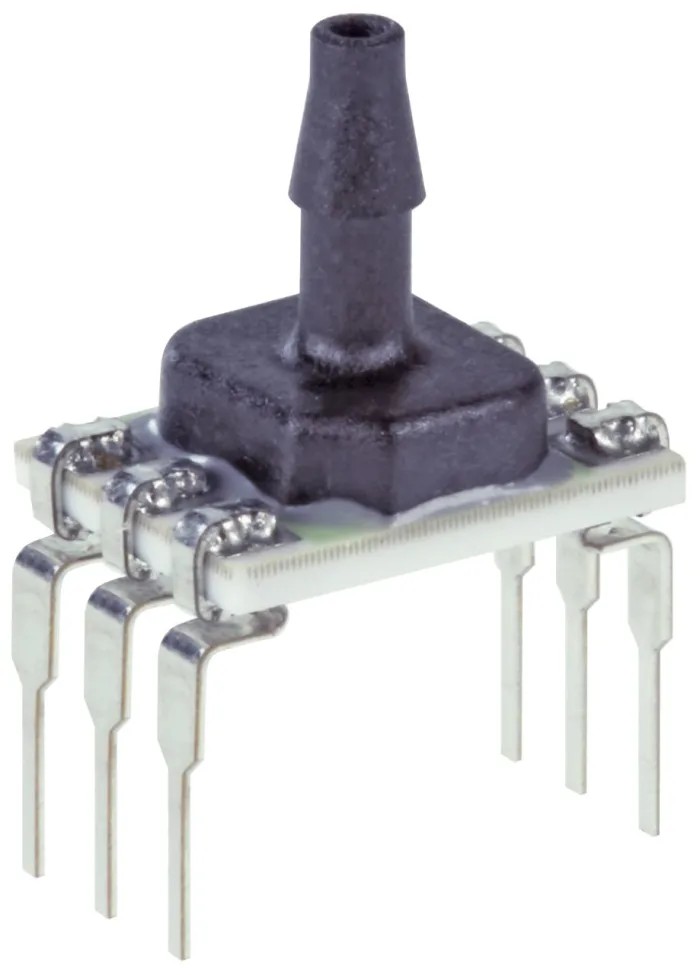

Honeywell Technologies Piezoresistive Board Mount Pressure Sensor 10 Bar Accuracy ±0.25% ABPDANN010BGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 10 bar |
| Height | 3.63mm |
| Length | 7.3mm |
| Model | ABPDANN010BGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 17bar |
Key Features
- Provides ±0.25% accuracy for precise pressure measurement.
- Supports operating voltages from 3.3V to 5V for flexible integration.
- Compact DIP package with 6 pins and board mount configuration.
- Operates from -40°C to +85°C suitable for wide temperature ranges.
- Offers ratiometric analogue and digital outputs with fast update rates.
- BPA free, LFGB and NSF-169 certified versions available for food-contact compliance.
- Suitable for CPAP, ventilators, HVAC transmitters, pneumatic control and drug delivery systems.
- Features sleep mode to reduce current consumption for battery-powered devices.
Product Description
Honeywell Technologies ABPDANN010BGAA5 is a piezoresistive pressure sensor designed for precise board-mounted pressure measurement applications. It offers a maximum operating pressure of 10 bar with an accuracy of ±0.25%, making it ideal for sensitive industrial, medical, and commercial uses.
The sensor operates with supply voltages ranging from 3.3V up to 5V and features a DIP package with 6 pins for easy PCB integration. It delivers ratiometric analogue or 12-bit digital output through I2C or SPI interfaces, providing flexible connectivity with microcontrollers and digital systems.
Engineered with on-chip ASIC calibration and temperature compensation, the ABPDANN010BGAA5 maintains stable and accurate pressure readings over its temperature range from -40°C to +85°C. Its sleep mode allows extremely low current consumption, extending battery lifetime in portable devices.
This pressure sensor withstands up to 17 bar overload pressure, enhancing its durability in demanding environments. Certifications such as BPA Free, LFGB, and NSF-169 enable safe use in food-related applications, while its ISO 9001 automotive standard supports stringent quality requirements.
Applications include CPAP and ventilator pressure monitoring, HVAC transmitter air brake sensing, pneumatic control and valve feedback, fluid dosing, and drug delivery systems. The device handles non-corrosive dry gases or liquids with a silicone gel protected port, broadening its media compatibility.
Provides ±0.25% accuracy for precise pressure control. Supports 1kHz analogue and 2kHz digital update rates for fast response. Low-voltage operation from 3.3V to 5V suits modern electronics. Compact 3.63mm height, 7.3mm length, and 6.3mm width dimensions.
Highly reliable with long-term ±0.25% full scale stability. Sleep mode reduces power consumption to microamp levels. Food-contact certified variants meet BPA Free, LFGB, and NSF-169 standards. ISO 9001 certification ensures automotive-grade quality.
Designed for industrial, laboratory, medical, HVAC, pneumatic, and commercial applications.
Choose the Honeywell ABPDANN010BGAA5 for trusted, high-precision pressure sensing in demanding board mount applications. Explore more Pressure Sensor ICs and related electronics components in our comprehensive EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Honeywell ABPDANN010BGAA5 is 10 bar.
It offers an accuracy of ±0.25%.
This sensor operates with supply voltages ranging from 3.3V to 5V.
The dimensions of this model are 3.63mm in height, 7.3mm in length, and 6.3mm in width.
It provides ratiometric analogue and 12-bit digital outputs through I2C or SPI interfaces.
The operating temperature range is from -40°C to +85°C.
The DIP package has a pin count of 6.
It is certified BPA Free, LFGB, and NSF-169, making it suitable for food-contact applications.
The maximum overload pressure is 17 bar.
This sensor is suitable for applications such as CPAP, ventilators, HVAC transmitters, pneumatic control, and drug delivery systems.
Yes, this model features a sleep mode to reduce current consumption for battery-powered devices.
It is a piezoresistive pressure sensor designed for precise board-mounted pressure measurement applications.
