Bourns Gauge Pressure Sensor 100 psi 3 Pins BPS140-HG100P-1SG

Free Delivery in India | Lowest Global Shipping Charges

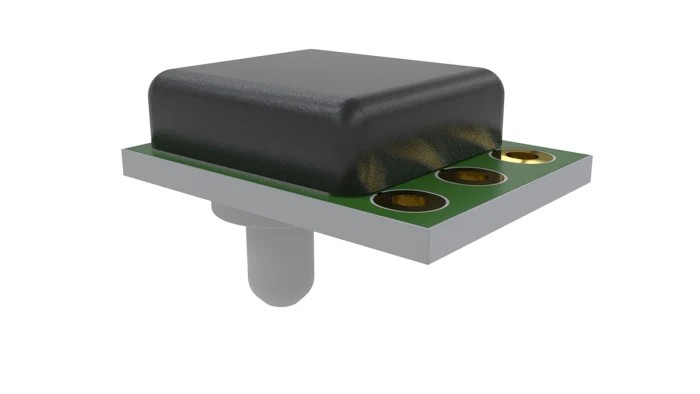

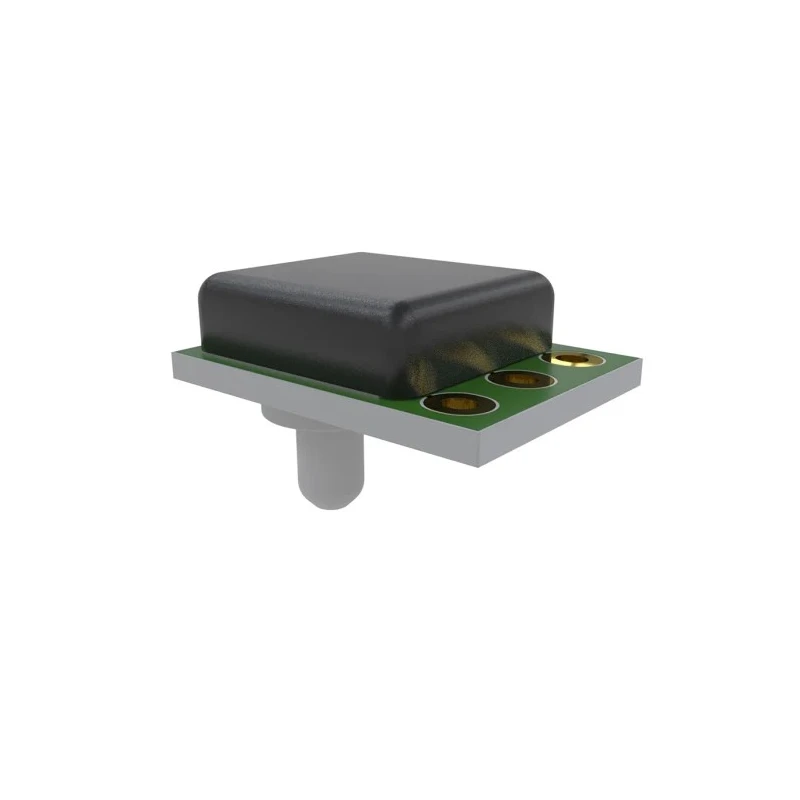

Bourns Gauge Pressure Sensor 100 psi 3 Pins BPS140-HG100P-1SG

Name: Bourns Gauge Pressure Sensor 100 psi 3 Pins BPS140-HG100P-1SG
Brand: BOURNS
SKU: 421305
Price: 81.38 USD
Availability: InStock



Category Pressure Sensor IC Brand BOURNS Condition New

Specifications

Country of Origin	United States
Accuracy	0.25 %FS
Brand	Bourns
Maximum Operating Pressure	100 psi
Height	3.4mm
Length	10.4mm
Model	BPS140-HG100P-1SG
Sensor Type	Gauge Pressure Sensor
Series	BPS140
Maximum Operating Temperature	85°C
Port Type	Single
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS Compliant
Pin Count	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Minimum Operating Pressure	0psi

Key Features

Employs advanced MEMS technology for accurate pressure sensing.
Measures gauge pressure up to 100 psi with 0.25% full scale accuracy.
Operates within supply voltage range of 4.5V to 5.5V.
Compact dimensions of 10.4mm length and 3.4mm height for easy integration.
Single port type sensor suitable for industrial and medical applications.
Wide operating temperature range from -40°C to 85°C.
RoHS compliant with reliable on-board electronics isolation.
Manufactured in the United States ensuring quality and conformity.

Product Description

Bourns BPS140-HG100P-1SG is a high-precision gauge pressure sensor designed for accurate condition reading in a miniature package. It offers a maximum operating pressure of 100 psi and features advanced MEMS technology with embedded piezoresistive elements bonded to a chemically etched silicon diaphragm.

This sensor operates reliably within a supply voltage range of 4.5V to 5.5V with an accuracy of 0.25% full scale. Its compact size with dimensions of 10.4mm length and 3.4mm height allows easy incorporation into various systems. The sensor has a single port type and a 3-pin configuration, ensuring straightforward integration.

The operating temperature range of -40°C to 85°C makes it suitable for diverse environments including industrial refrigerant systems, water level and pressure monitoring, and medical diagnostic equipment with low to medium risk profiles. Its on-board electronics provide isolation for harsh media monitoring, supporting applications in oil and fuel systems or exhaust gas pressure sensing on heavy equipment.

The device complies with RoHS standards and is manufactured in the United States, ensuring quality and environmental compliance. Advanced MEMS-based gauge pressure sensing technology. High accuracy of 0.25% full scale provides dependable readings.

Wide temperature operating range for versatile use cases. Compact size for easy system integration. Single port and 3-pin design facilitate straightforward connectivity. Suitable for industrial, medical, and heavy equipment pressure monitoring.

RoHS compliant ensuring environmental safety. Manufactured in the United States for quality assurance.

This Bourns pressure sensor is ideal for various industrial, laboratory, HVAC, manufacturing, water treatment, agricultural, medical, and commercial applications requiring precise pressure measurements. Explore related products to find sensors suited for your specific needs at EnvMart.
