Gefran LT Series Linear Transducer Connector 60V with Anodised Aluminium and Polyamide 66 F003418/ LT-H-0175-S 0000X000X00

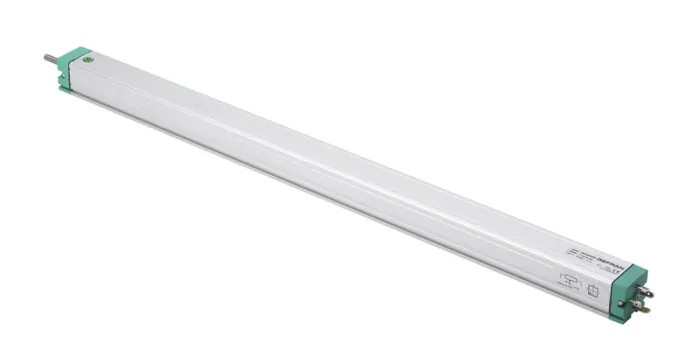

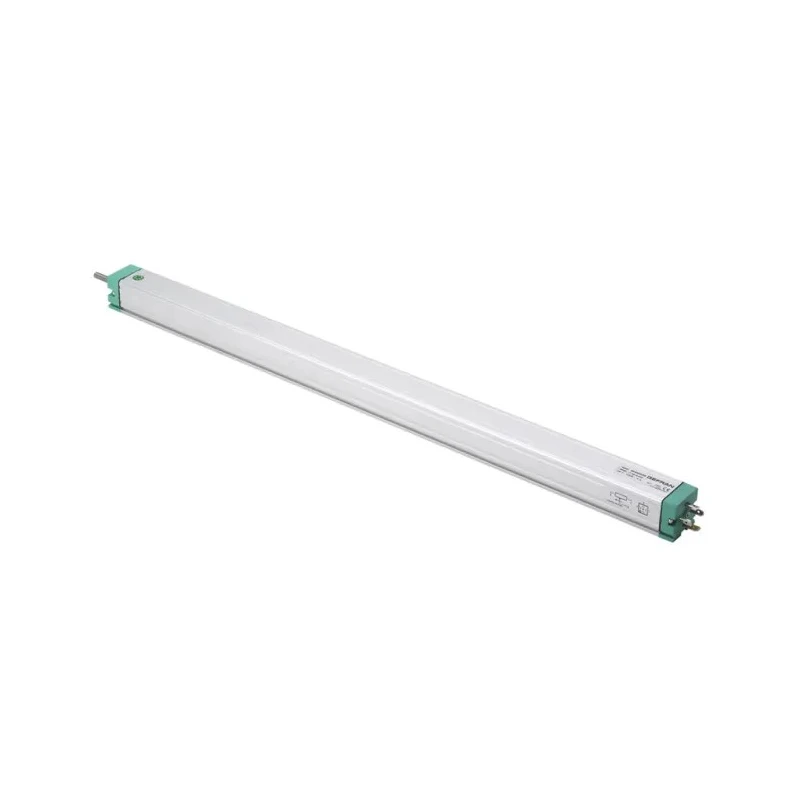

Gefran F003418/ LT-H-0175-S 0000X000X00 Linear Transducer Connector 60V is a high-precision linear movement sensor based on potentiometric technology. Its robust design ensures excellent reliability and durability in industrial environments prone to heavy vibrations.

The transducer incorporates anodised aluminium and polyamide 66 in its housing, offering both mechanical strength and resistance to harsh operating conditions. It is engineered for easy installation, suitable for integration into plastic injection presses, vertical presses, and various processing machines requiring precise displacement measurement.

This product exhibits repeatability to 0.01 mm enabling accurate servo control in cylinder position detection. It features an axle drive with M5 thread size and mounting via mobile stirrups. The electrical output signal remains constant within the theoretical electrical stroke, ensuring dependable signal consistency.

Connector outputs are compliant with DIN 43650 - ISO 4400 standards, employing a 4-pin design optimized for secure connections. The device supports a maximum supply voltage of 60 volts with a resistance of 5kΩ and resistance tolerance of ±20%. The IP60 rating provides moderate protection against dust ingress, suitable for industrial indoor environments. The compact form factor with dimensions 33 mm deep, 34.5 mm high, and 163 mm wide facilitates integration into space-constrained systems.

Conforming to CE and RoHS directives, this Gefran transducer is designed and manufactured in Italy with the highest quality standards. It is particularly well-suited for use in industrial automation, machinery monitoring, and motion control sensor applications, supporting reliable and repeatable linear position detection for diverse manufacturing and processing equipment.

Choose this sensor for advanced linear displacement measurement needs with proven performance in demanding industrial conditions. The transducer features potentiometric technology ensuring reliable performance across various uses.

It is built with anodised aluminium and polyamide 66 housing for enhanced durability. Offers strong resistance suitable for heavy vibration environments. Easy to install and ideal for plastic injection presses, vertical presses, and processing machinery.

Repeatability accuracy up to 0.01 mm ensures precise position sensing. Rated with an IP60 protection class for moderate dust and water resistance. Equipped with a connector interface type DIN 43650 - ISO 4400 4 pins for secure electrical connections.

Supports a maximum supply voltage of 60 volts, with a resistance of 5kΩ and ±20% tolerance. Compact dimensions: depth 33 mm, height 34.5 mm, width 163 mm allow for versatile mounting. Designed and manufactured in Italy, conforming to CE and RoHS standards.
