Gefran LT Series Linear Transducer Connector 60V F003559/ LT-M-0275-S 0000X000X00

Free Delivery in India | Lowest Global Shipping Charges

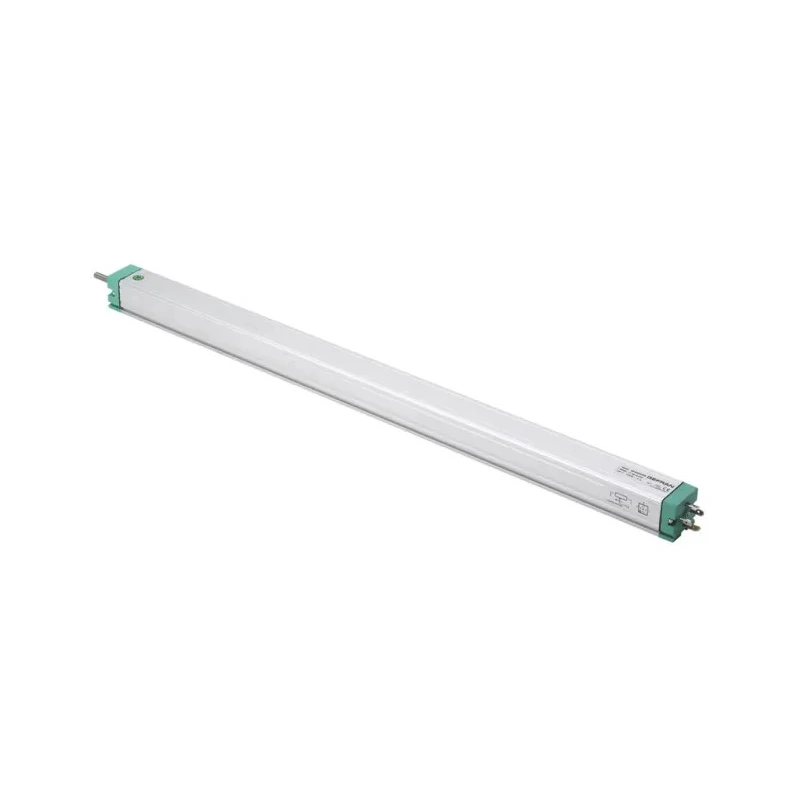

Gefran LT Series Linear Transducer Connector 60V F003559/ LT-M-0275-S 0000X000X00

Name: Gefran LT Series Linear Transducer Connector 60V F003559/ LT-M-0275-S 0000X000X00
Brand: Gefran
SKU: 150581
Price: 332.46 USD
Availability: InStock



Category Transducer Brand Gefran Condition New

Specifications

Country of Origin	Italy
Brand	Gefran
Model	F003559/ LT-M-0275-S 0000X000X00
IP Rating	IP60
Housing Material	Anodised Aluminium, Polyamide 66
Series	LT
Overall Width	670mm
Maximum Operating Temperature	100°C
Resistance	5kΩ
Overall height	34.5mm
Resistance Tolerance	±20 %
Interface Type	Connector
Standards/Approvals	CE, RoHS
Maximum Supply Voltage	60V
Overall Depth	33mm

Key Features

The LT series provides slide movement sensing with high resistance accuracy of 5kΩ ±20%.
Housing is robust with anodised aluminium and Polyamide 66 materials ensuring durability.
IP60 rated protection safeguards the device in industrial environments.
Connector interface adheres to DIN 43650 - ISO 4400 standards with a 4-pin configuration.
Suitable for operation in temperatures up to 100°C, enabling reliable performance under harsh conditions.
The overall compact dimensions include a depth of 33mm, height of 34.5mm, and width of 670mm.
Manufactured in Italy, conforming to CE and RoHS standards for safety and environmental compliance.

Product Description

Gefran F003559/ LT-M-0275-S 0000X000X00 is a Linear Transducer Connector designed for precise linear position sensing applications in industrial automation and motion control systems. This device operates at a maximum supply voltage of 60V and belongs to the LT series known for slide movement detection in servo control cylinders.

The transducer features a resistance of 5kΩ with a tolerance of ±20%, ensuring accurate measurement without variation outside the theoretical electrical stroke. Its housing is constructed from anodised aluminium and durable Polyamide 66, providing robust protection and longevity in demanding environments.

The connector type follows DIN 43650 - ISO 4400 standards with a 4-pin interface, facilitating straightforward installation and compatibility with common control systems. The unit carries an IP60 ingress protection rating, protecting internal components against dust ingress while not suitable for water exposure.

With compact overall dimensions of 33mm depth, 34.5mm height, and 670mm width, it can be easily integrated into space-constrained setups. Operational temperature capability up to 100°C allows for deployment in high-temperature industrial settings.

Manufactured in Italy, the product complies with CE and RoHS directives, ensuring adherence to international safety and environmental guidelines. It is ideal for use in industrial automation, manufacturing plants, laboratory equipment, and machinery requiring precise linear motion feedback.

The LT series offers reliable slide movement sensing for servo control cylinders. Anodised aluminium and Polyamide 66 housing provides enhanced durability. IP60 rating ensures adequate protection from dust ingress. Connector outputs meet DIN 43650 - ISO 4400 standards with a 4-pin design.

Supports maximum supply voltage of 60V for safe operation. Operates reliably at temperatures up to 100°C in industrial environments. Complies with CE and RoHS standards for safety and environmental sustainability. EnvMart offers this advanced linear Transducer connector for professionals requiring precise and durable motion sensing solutions in automation and control applications.
