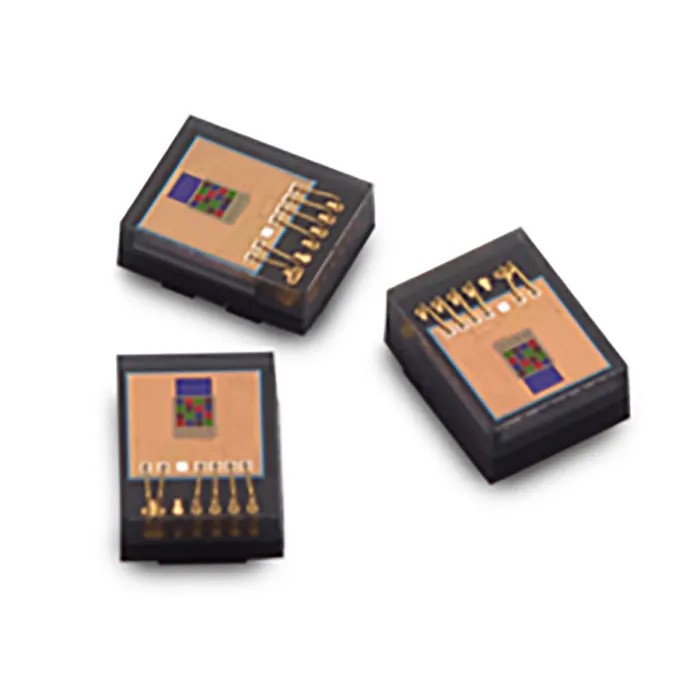

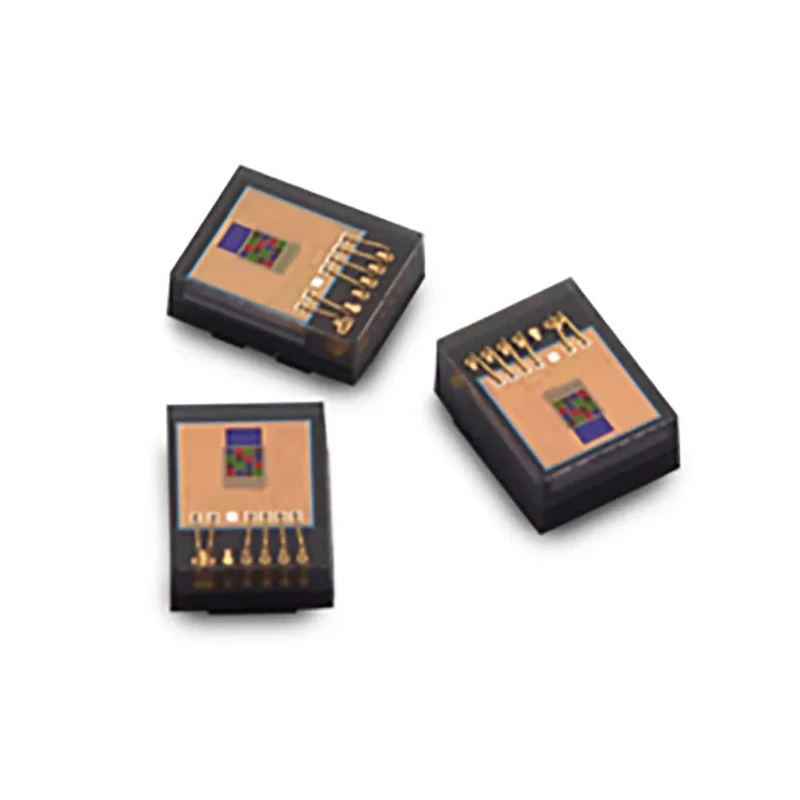

Broadcom Ambient Light Sensor Digital, 8-Pin ODFN, Peak Wavelength 550nm, Model APDS-9251-001
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 20-bit |
| Brand | Broadcom |
| Height | 650μm |
| Length | 2mm |
| Model | APDS-9251-001 |
| Technology | Digital |
| Width | 2mm |
| Mount Type | Surface |
| Series | APDS-9251-001 |
| Maximum Operating Temperature | 85°C |
| Package Type | ODFN |
| Sub Type | Ambient Light |
| Minimum Operating Temperature | -40°C |
| Maximum Frequency | 400kHz |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.7V |
| Peak Wavelength | 550nm |
| Miniature package size | L2.00 x W2.00 x H0.65 mm |
Key Features
- The sensor operates with a peak wavelength of 550 nm suitable for ambient light sensing.
- It features a miniature package size of 2.00 x 2.00 x 0.65 mm for compact applications.
- Supports I2C interface with dedicated interrupt pin and up to 20-bit resolution.
- Includes individual photodiodes for red, green, blue, and infrared channels with integrated IR-blocking filter.
- Operates over a voltage range from 1.7V to 3.6V and a frequency up to 400 kHz.
- Designed for low power consumption and precise measurements under diverse lighting conditions.
- Suitable for OLED display control, RGB LED backlight control, and ambient light colour temperature sensing.
- Operates reliably from -40°C to 85°C for industrial and commercial use cases.
Product Description
Broadcom APDS-9251-001 ambient light sensor is a digital sensor IC designed for precise ambient light measurement with an 8-pin ODFN package. It operates at a peak wavelength of 550 nanometers and offers up to 20-bit resolution for accurate sensing.
The miniature package size of L2.00 x W2.00 x H0.65 mm allows integration into compact electronic designs. It features an I2C compatible interface with a dedicated interrupt pin, enabling efficient communication and system integration.
This sensor includes individually responsive photodiodes for red (R), green (G), blue (B), and infrared (IR) light, with an integrated IR-blocking filter that enhances measurement accuracy under various lighting conditions including challenging environments with dark glass or attenuation materials. The green channel notably approximates human eye response.
Operating with a supply voltage between 1.7V and 3.6V and supporting frequencies up to 400 kHz, this device ensures low power consumption, essential for portable electronics and display applications.
Its operating temperature range of -40°C to 85°C and digital technology suit a variety of industrial, commercial, and consumer applications. Typical uses include OLED display control, RGB LED backlight adjustment, ambient light colour temperature sensing, and general ambient light detection.
The sensor offers high resolution ambient light detection across RGB and IR spectra. Compact size supports integration in space-constrained applications. Low voltage and power requirements optimize battery life in portable devices.
Wide operating temperature range enables usage in diverse environments. Digital output and interrupt functionality facilitate precise and efficient control systems.
Broadcom’s APDS-9251-001 sensor is an industry-grade component valuable for advanced electronic designs requiring accurate and reliable ambient light sensing. Explore EnvMart categories for related electronic and semiconductor components to meet your project requirements.
Explore more products in our Electronic Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor offers a resolution of up to 20 bits, allowing for accurate ambient light measurements.
It operates with a peak wavelength of 550 nm, which is suitable for ambient light sensing applications.
This model operates reliably within a temperature range of -40°C to 85°C, making it suitable for various industrial and commercial applications.
The sensor has a miniature package size of 2.00 mm in length, 2.00 mm in width, and 0.65 mm in height.
It features an I2C compatible interface with a dedicated interrupt pin for efficient communication and system integration.
The sensor operates with a supply voltage ranging from 1.7V to 3.6V.
This model has a total of 8 pins, allowing for various connections and functionalities.
It supports a maximum frequency of up to 400 kHz, facilitating fast data communication.
The sensor includes individual photodiodes for red, green, blue, and infrared light, enhancing its measurement capabilities.
Typical applications include OLED display control, RGB LED backlight adjustment, and ambient light colour temperature sensing.
The APDS-9251-001 is designed for surface mounting, which is ideal for compact electronic designs.
The sensor is manufactured in India, ensuring a specific origin for the product.
