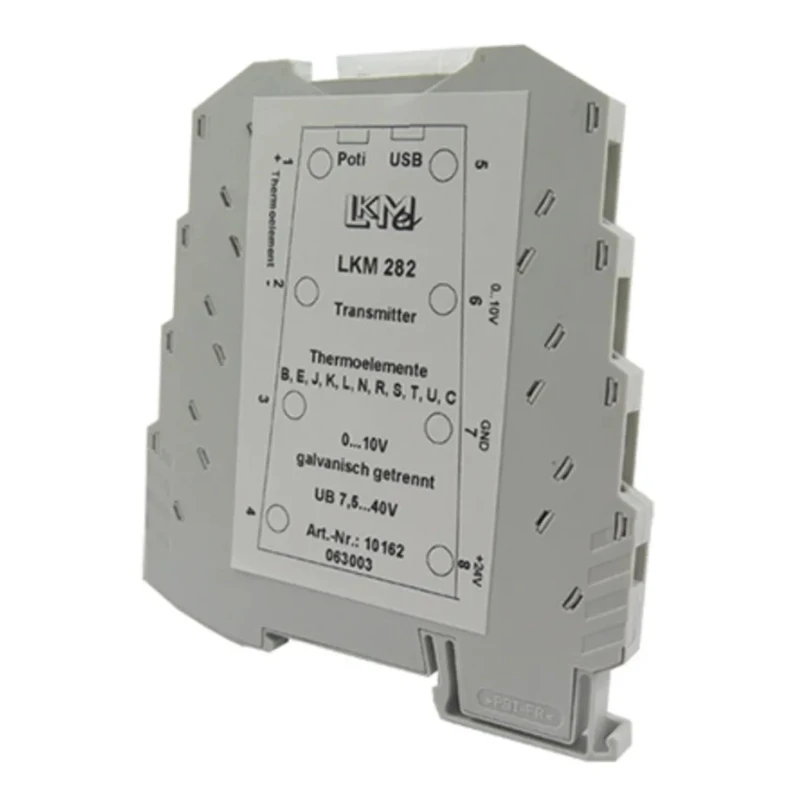

Electrotherm Digital Programmable Measuring Transducer 35V, -40°C to 85°C LKM 282
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Electrotherm |
| Material | polyester |
| Dimensions | 100x6x93mm (HxWxD) |
| Mounting | 35mm DIN-rail |
| Response time | 0.5s |
| Humidity | 95% |
| Measurement error | 0.2% |
| Model | LKM 282 |
| Depth | 93mm |
| Gross Weight | approx.54g |
| Vibration | 147 to 500Hz / 300 m/s² 500Hz to 2K / 200 m/s² |
| Output type | 0 to 10 V |
| Linearity error | 0.3K |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Span | 50K |
| Short Circuit | voltage value for room temperature |
| Galvanic Isolation | 2.5kV |
| Clamping Range | 0.2 to 2.5mm² |
| Maximum Supply Voltage | 35V |
| Standards/ApprovalsEN 61326-1 | 2006EN 61326-2-3:2006 |
| EN 61326-1 | 2006EN 61326-2-3:2006 |
| Error of reference junction | +/- 0.5°C |
| Sensor break | 10V typically 11V |
| TC | 100ppm/K |
| Type of terminals | screw terminals spring-cage terminals are possible |
| Max. current consumption | 15mA at 24VDC |
| EN61326-2-3 | 2006 |
Key Features
- The transducer provides an output voltage ranging from 0 to 10 V with current limitation.
- Designed for galvanically isolated measurement of thermocouples with DIN EN 60584-3 compliance.
- Compact slim 6mm width fits standard 35mm DIN rails and offers robust shock resistance.
- Compatible thermocouple types include K, J, L, T, U, E, N, S, B, R, and C for versatile applications.
- Features a programmable micro USB interface for configuration and temperature compensation.
- Ensures high interference immunity and operates with supply voltage between 8V to 35V DC or 8 to 26 VAC polarity safe.
- Includes galvanic isolation of 2.5 kV, low response time of 0.5 seconds, and sensor fault detection capabilities.
Product Description
Electrotherm LKM 282 is a high-precision digital programmable measuring transducer designed for thermocouple temperature measurements with galvanic isolation and wide operating ranges.
It supports multiple thermocouple types as per DIN EN 60584-3 standards and provides a linearized output signal from 0 to 10 V, adaptable via micro USB programming for diverse industrial requirements.
The transducer operates over a supply voltage range of 8 to 35 V DC and 8 to 26 V AC with polarity protection, consuming a maximum of 15 mA at 24 V DC. Its slim 6 mm design mounts easily on standard 35 mm DIN rails saving panel space and ensuring excellent shock resistance.
Built with a polyester casing and screw or spring-cage terminals, it accepts conductor sizes from 0.2 to 2.5 mm². The device includes galvanic isolation of 2.5 kV ensuring noise-resistant measurements, with response time of 0.5 seconds and sensor break detection.
This transducer meets EN 61326-1:2006 and EN 61326-2-3:2006 standards, making it suitable for industrial Process Control, automotive applications, laboratory instrumentation, HVAC systems, and manufacturing environments requiring reliable temperature measurement and signal isolation.
The transducer provides an output voltage ranging from 0 to 10 V with current limitation. Designed for galvanically isolated measurement of thermocouples with DIN EN 60584-3 compliance. Compact slim 6mm width fits standard 35mm DIN rails and offers robust shock resistance.
Compatible thermocouple types include K, J, L, T, U, E, N, S, B, R, and C for versatile applications. Features a programmable micro USB interface for configuration and temperature compensation. Ensures high interference immunity and operates with supply voltage between 8V to 35V DC or 8 to 26 VAC polarity safe.
Includes galvanic isolation of 2.5 kV, low response time of 0.5 seconds, and sensor fault detection capabilities. Explore more industrial temperature transmitters and automation control gear solutions at EnvMart to streamline process management with trusted brand Electrotherm products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Electrotherm LKM 282 provides an output voltage ranging from 0 to 10 V with current limitation.
This model is compatible with thermocouple types K, J, L, T, U, E, N, S, B, R, and C, adhering to DIN EN 60584-3 standards.
The transducer operates with a supply voltage between 8V to 35V DC or 8 to 26 VAC, and it features polarity protection.
The response time of the LKM 282 is 0.5 seconds, allowing for quick temperature readings.
The dimensions of the Electrotherm LKM 282 are 100 mm in height, 6 mm in width, and 93 mm in depth.
It is designed for mounting on standard 35 mm DIN rails, making installation straightforward.
The maximum operating temperature for the Electrotherm LKM 282 is 85°C.
The maximum current consumption of this model is 15 mA at 24 V DC.
The transducer is constructed with a polyester casing, ensuring robustness for industrial applications.
This model complies with EN 61326-1:2006 and EN 61326-2-3:2006 standards, suitable for industrial applications.
The LKM 282 includes sensor fault detection capabilities, typically outputting 10V for a sensor break.
The transducer features galvanic isolation of 2.5 kV, ensuring noise-resistant measurements.
