Hengstler RI58-O Series Incremental Encoder 30V dc, 1000 ppr, Push Pull Signal, Solid Shaft 10 mm RI58-0/1000EK.42KB

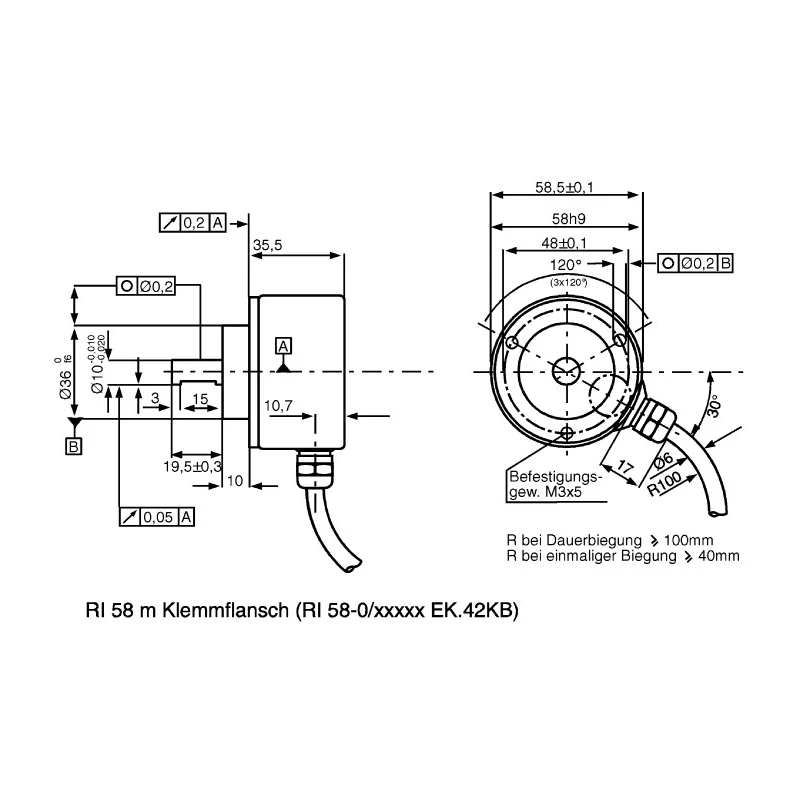

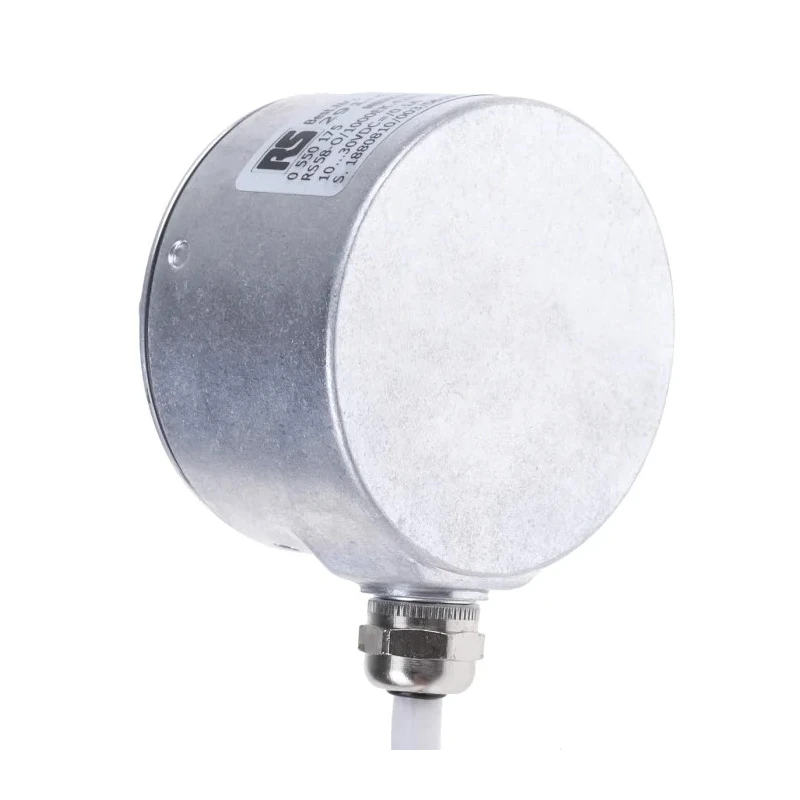

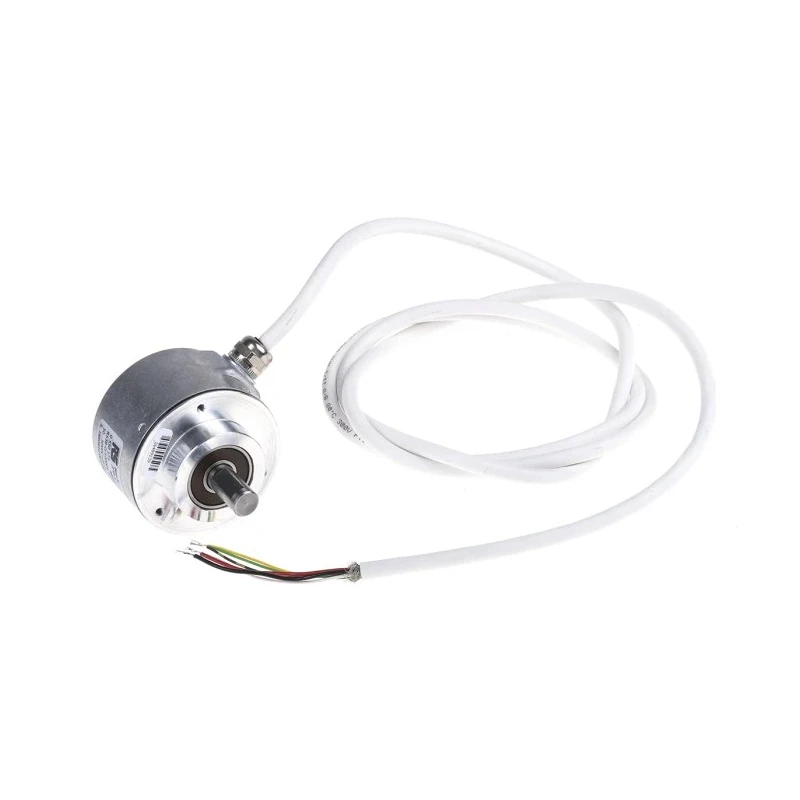

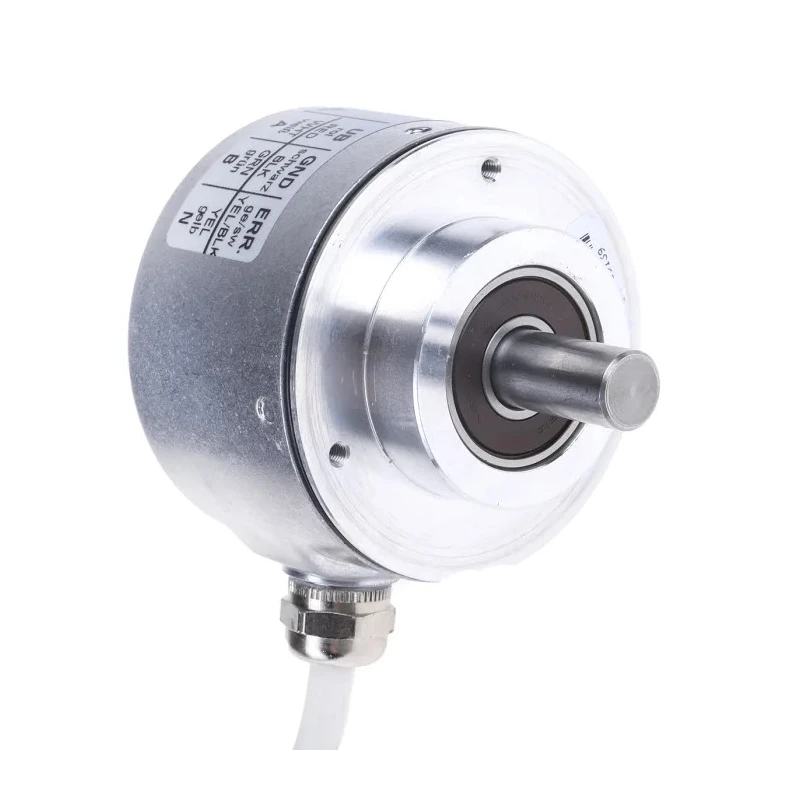

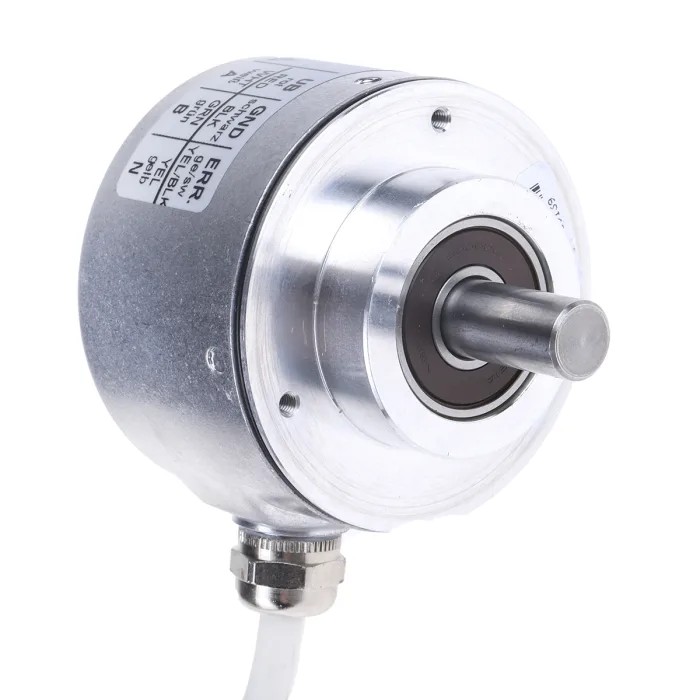

Hengstler RI58-0/1000EK.42KB is a high-performance incremental encoder from the RI58-O series designed for industrial motion control applications. It operates on 30V dc power supply and delivers 1000 pulses per revolution. The encoder is constructed with a robust solid 10 mm diameter shaft ensuring precise motion detection and durability in demanding environments.

Its Push Pull output signal type guarantees reliable signal transmission, suitable for integration into complex automation systems. The device supports up to 10000 rpm, allowing it to handle high-speed rotary equipment efficiently. The encoder features a flange mount type ensuring easy and secure installation on various machinery.

This encoder is rated with IP67, IP65, and IP64 protection standards, making it suitable for use in environments exposed to dust, dirt, and moisture. Designed with OptoAsic technology, it provides enhanced reliability with a stable square wave pulse shape and a 1:1 duty cycle.

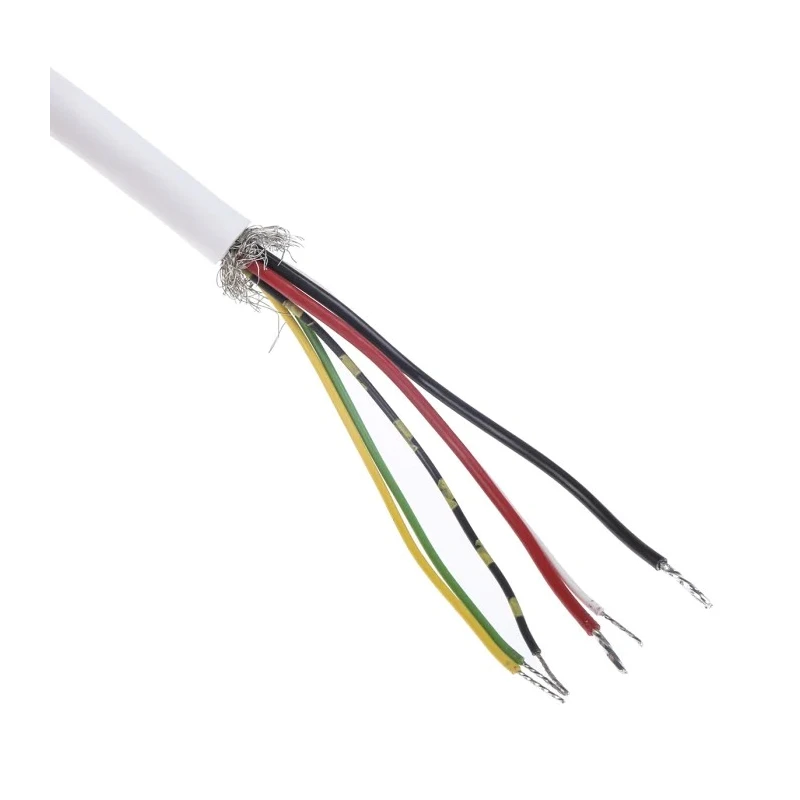

The integral Radial cable termination facilitates straightforward wiring and integration. It is engineered to operate seamlessly within a wide temperature range from -10°C to 70°C, making it suitable for diverse industrial, automation, and manufacturing applications.

Operates with a maximum supply voltage of 30V dc for consistent power delivery. 1000 ppr signal output ensures high-resolution motion detection. Maximum operating revolutions of 10000 rpm accommodates high-speed operations.

Robust solid shaft with 10 mm diameter provides mechanical stability. Rating of IP67, IP65, and IP64 ensures resistance to environmental factors. Flange mounting facilitates easy and secure installation. Advanced OptoAsic technology offers improved reliability and performance.

Square wave pulse shape with 1:1 duty cycle produces precise signal output. Switching frequency of 300kHz supports rapid signal processing needs.

Suitable for industrial automation, motion control systems, manufacturing processes, and other applications requiring precise rotary position feedback. Hengstler's RI58-O series incremental encoders are engineered for durability and accuracy, delivering dependable performance in challenging operational conditions.
