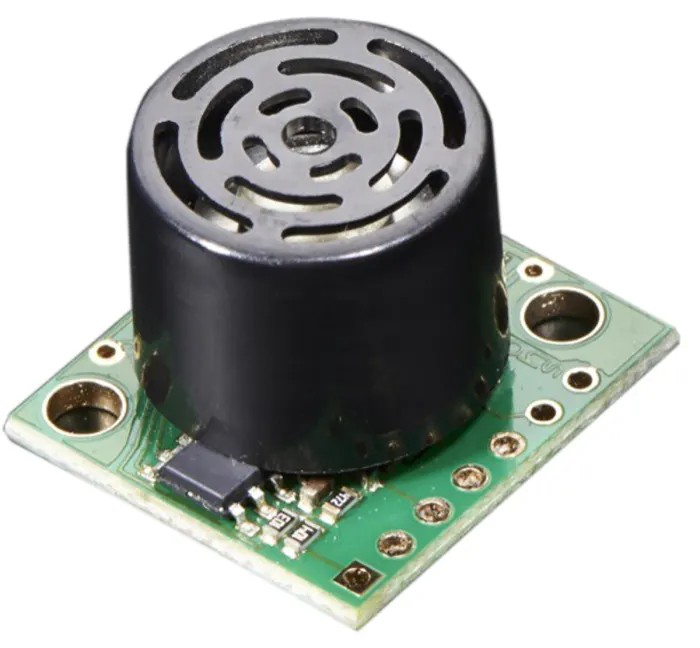

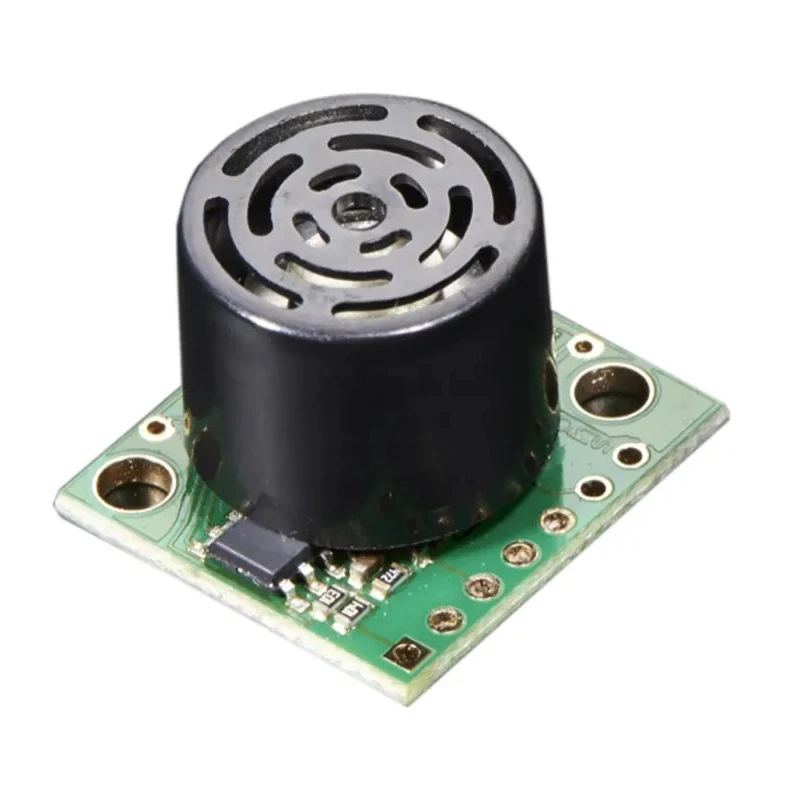

ADAFRUIT INDUSTRIES Ultrasonic Distance Sensor Module for LV-EZ1 Outdoor Ultrasonic Sensors 42kHz 150 to 6000mm 20Hz 172
Specifications
| Country of Origin | India |
|---|---|
| Brand | ADAFRUIT INDUSTRIES |
| Dimensions | 19.9 x 22.1 x 15.5mm |
| Model | 172 |
| Sensor Technology | Ultrasonic Distance Sensor |
| For Use With | Outdoor ultrasonic sensors |
| Max Reading Rate | 20Hz |
| Standards/Approvals | RoHS |
| Kit Classification | Module |
| Featured Device | LV-EZ1 |
| Kit Name | Maxbotix |
| Sensor frequency | 42kHz |
| Object range | 150 to 6000mm |
| Output formats | UART serial, Analogue (Vcc/512)/inch, PWM (147μs/inch) |
Key Features
- Operating frequency of 42kHz ensures accurate object detection.
- Maximum reading rate of 20Hz for rapid sensing updates.
- Module supports UART serial, Analogue, and PWM output formats simultaneously.
- Power supply range from 2.5V to 5.5V DC with typical current draw of 2mA.
- Continuously variable gain allows control and side-lobe suppression for better signal quality.
- Supports triggered single-shot and free-run continuous range measurements.
- Designed for use in protected indoor and outdoor environments.
- Applications include mobile robot navigation, collision avoidance, and security systems.
Product Description
ADAFRUIT INDUSTRIES 172 Ultrasonic Distance Sensor Module for LV-EZ1 provides reliable non-contact distance measurement using ultrasonic waves at 42kHz frequency. This sensor module detects objects within a range of 150 to 6000mm, making it suitable for a variety of industrial and commercial applications requiring precise distance sensing.
The module continuously outputs range data at up to 20Hz with simultaneous active UART serial, analogue voltage, and PWM signal interfaces for flexible system integration. Its compact dimensions of 19.9 x 22.1 x 15.5mm allow easy installation in confined spaces.
Featuring continuously variable gain control and side-lobe suppression, the LV-EZ1 sensor delivers enhanced accuracy and signal quality. It supports triggered operation for single-shot readings as well as free-run mode for continuous measurement. The sensor learns ringdown patterns when activated to optimize performance in various environments.
Powered by a DC supply ranging from +2.5V to +5.5V and consuming approximately 2mA, the module is energy efficient. It is designed for use with outdoor ultrasonic sensor systems and complies with RoHS environmental standards.
Typical use cases include mobile robotic navigation systems, collision avoidance devices, security surveillance setups, and other industrial automation scenarios where accurate distance sensing is crucial. The sensor's immunity to object color or visual characteristics further enhances its reliability in diverse settings.
Operating frequency: 42kHz ultrasonic waves. Object detection range: 150 to 6000mm. Max reading rate: 20Hz. Dimensions: 19.9 x 22.1 x 15.5mm. Power supply: +2.5V to +5.5V DC at 2mA typical. Multiple output formats: UART serial, analogue voltage, PWM signal.
Continuously variable gain and side-lobe suppression. Supports triggered and free-run operation modes. RoHS compliant. Explore our extensive catalog of Ultrasonic Sensors and sensor development tools on EnvMart for specialized industrial, laboratory, and robotics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating frequency of this ultrasonic distance sensor module is 42kHz, which ensures accurate object detection.
This model can detect objects within a range of 150 to 6000mm.
The maximum reading rate of the sensor is 20Hz, allowing for rapid sensing updates.
The sensor supports multiple output formats including UART serial, analogue voltage, and PWM signal simultaneously.
The dimensions of the module are 19.9 x 22.1 x 15.5mm, making it suitable for installation in confined spaces.
The sensor module requires a power supply range from +2.5V to +5.5V DC with a typical current draw of 2mA.
Yes, this model is designed for use with outdoor ultrasonic sensor systems, ensuring reliable performance in various conditions.
Typical applications include mobile robot navigation, collision avoidance, and security systems.
Yes, it features continuously variable gain control and side-lobe suppression for enhanced accuracy and signal quality.
Yes, the sensor module complies with RoHS environmental standards.
The sensor supports both triggered single-shot readings and free-run continuous range measurements.
This sensor uses ultrasonic technology for non-contact distance measurement, utilizing ultrasonic waves.
