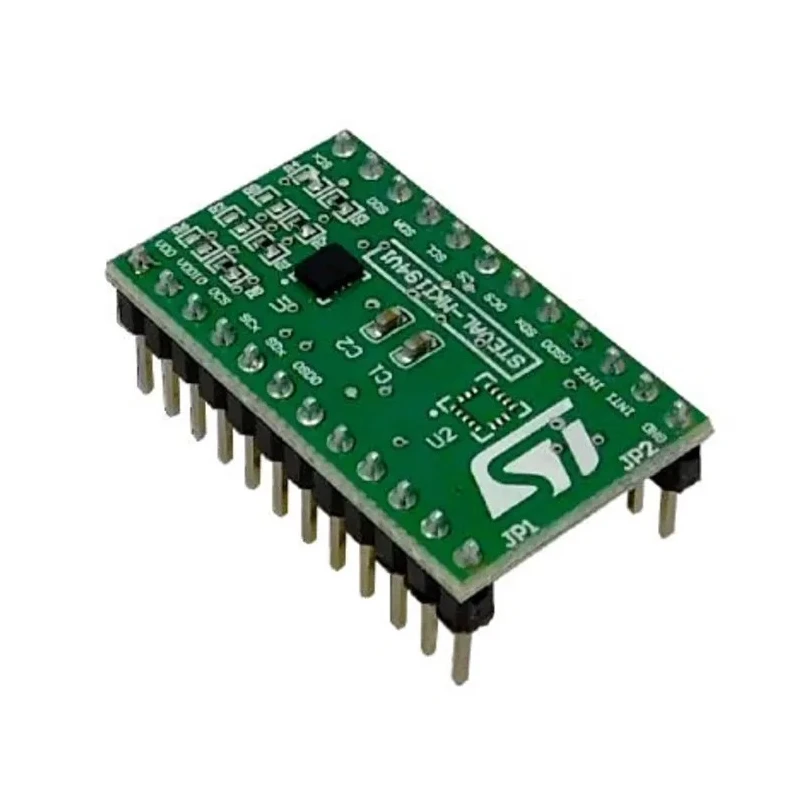

STMicroelectronics Surface Motion Sensor Module DIL-24, 24-Pin STEVAL-MKI194V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-MKI194V1 |
| Technology | Motion Sensor |
| Sensor Type | DCON ASCII Over TCP, COM Port |
| Mount Type | Surface |
| Series | LSM6DSR |
| Maximum Operating Temperature | 85°C |
| Package Type | DIL-24 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, WEEE |
| Pin Count | 24 |
Key Features
- The module supports a standard DIL 24 socket with complete LSM6DSR pinout.
- It includes decoupling capacitors on the VDD power supply line for stable operation.
- Compatible with STEVAL-MKI109V3 motherboard for sensor interface via high-performance 32-bit microcontroller.
- Enables usage of downloadable graphical user interface (Unico GUI) for easy sensor evaluation.
- Operates in temperature range from minus 40 degrees Celsius to 85 degrees Celsius.
- Complies with RoHS and WEEE environmental standards ensuring safe and compliant use.
- Offers plug-and-play functionality to accelerate system prototyping for motion sensing applications.
Product Description
STMicroelectronics STEVAL-MKI194V1 Surface Motion Sensor Module in a DIL-24 package is engineered to facilitate evaluation and prototyping of MEMS motion sensors, specifically within the LSM6DSR series. This adapter board can be plugged into a standard 24-pin DIL socket and provides the complete LSM6DSR pin layout required for rapid system integration. It comes fully equipped with decoupling capacitors on the VDD power line to ensure power stability during usage.
The module supports connection to the STEVAL-MKI109V3 motherboard, which houses a high-performance 32-bit microcontroller serving as a bridge between the sensor and a personal computer. This setup allows users to leverage the downloadable Unico GUI or develop custom software routines for specific applications.
With an operational temperature range from -40°C to +85°C, this module is suitable for a wide range of industrial, laboratory, and commercial environments. It meets environmental directives RoHS and WEEE, ensuring compliance with industry standards. The STEVAL-MKI194V1 is ideal for fast system prototyping and detailed evaluation of motion sensor ICs, supporting various applications including consumer electronics, industrial automation, and embedded systems.
The module fits a standard DIL 24 socket with full LSM6DSR pinout. Includes necessary decoupling capacitors for power line stabilization. Compatible with STEVAL-MKI109V3 and STEVAL-MKI109V2 motherboards. Supports easy interfacing via 32-bit microcontroller bridge for sensor data acquisition.
Operational temperature span of -40°C up to 85°C. Environmentally compliant with RoHS and WEEE regulations. Enables rapid prototyping and sensor evaluation in motion sensing applications.
This Motion Sensor Module finds use in electronics development, industrial controls, embedded devices, robotics, and automotive testing among other engineering applications. Engineers and developers benefit from its ready-to-use form factor and comprehensive connectivity. Browse more STMicroelectronics sensor modules and evaluation boards at EnvMart for integrated solutions tailored to your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational temperature range of the STEVAL-MKI194V1 is from -40°C to +85°C.
This model supports a standard DIL-24 socket with a complete LSM6DSR pinout.
It is compatible with the STEVAL-MKI109V3 and STEVAL-MKI109V2 motherboards.
This module utilizes motion sensor technology, specifically designed for MEMS motion sensors.
The module complies with RoHS and WEEE environmental standards, ensuring safe and compliant use.
It provides output via DCON ASCII Over TCP and COM Port interfaces.
Yes, it includes decoupling capacitors on the VDD power supply line for stable operation.
The pin count of this module is 24 pins.
It is suitable for applications in consumer electronics, industrial automation, embedded systems, robotics, and automotive testing.
It enables usage of the downloadable Unico GUI for easy sensor evaluation and custom software development.
The package type of this model is DIL-24.
It offers plug-and-play functionality to accelerate system prototyping for motion sensing applications.
