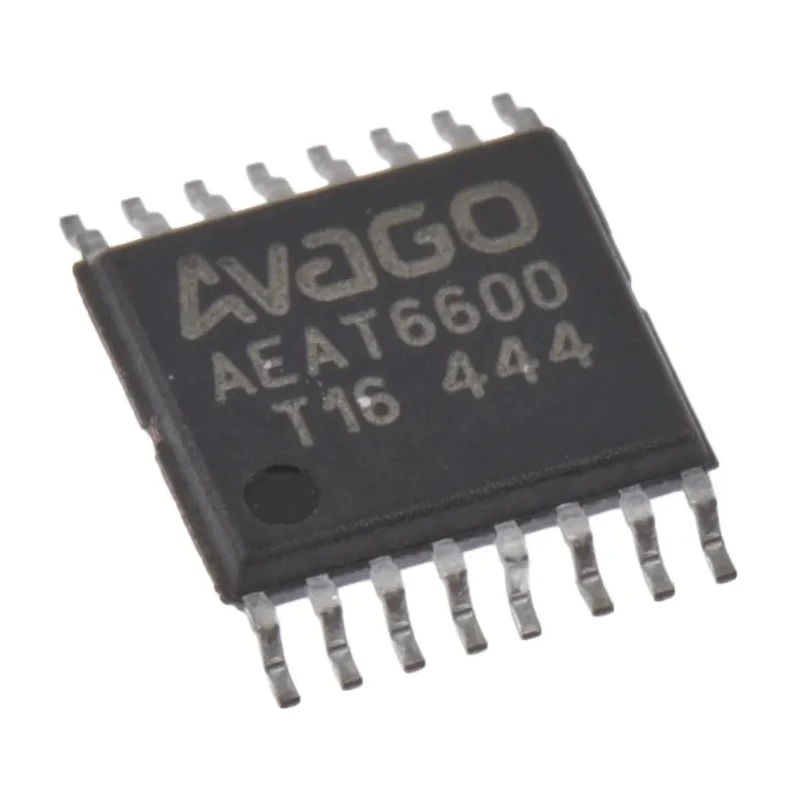

Broadcom 1-Axis Angular Magnetic Encoder Motion Sensor Module 3 V to 5.5 V SSI PWM UVW Interface TSSOP-16 AEAT-6600-T16

Broadcom AEAT-6600-T16 is a 1-axis angular magnetic encoder Motion Sensor Module designed to provide precise rotational position feedback in industrial, automation, and electronic applications. This module utilizes advanced CMOS and Hall Effect sensor technologies combined in a system-on-chip design, offering accurate angle measurements over 360 degrees with an internal voltage regulator for stable operation.

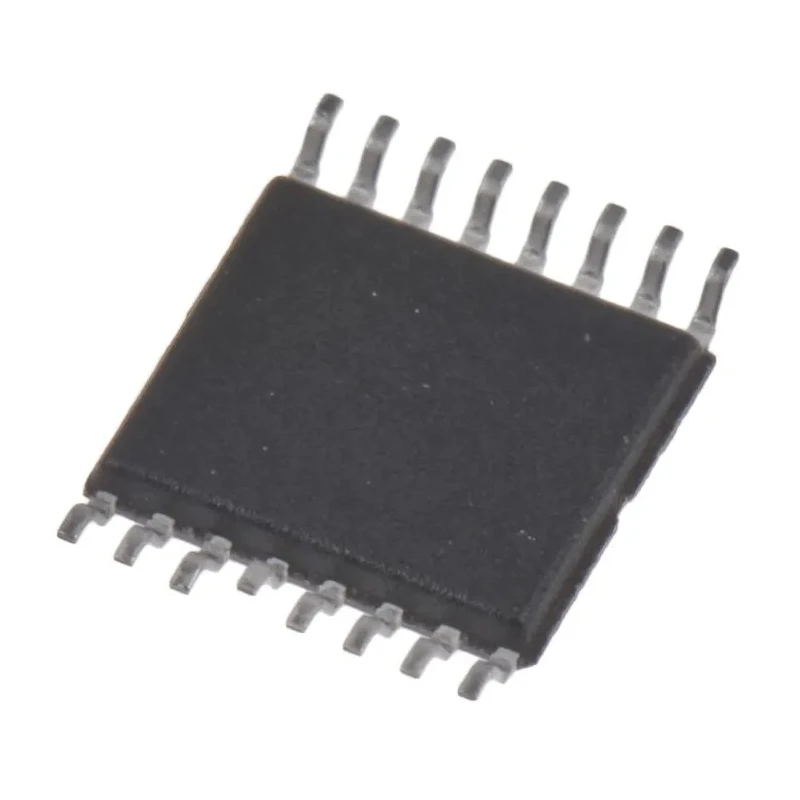

Its compact 16-pin TSSOP-16 package measures 6.4 mm in length and 4.4 mm in width, making it suitable for compact PCB layouts. The device operates on supply voltages ranging from 3 V to 5.5 V and supports multiple output interfaces such as SSI, PWM, and UVW incremental modes, allowing flexible integration for various motor control and position sensing systems.

The AEAT-6600-T16 supports incremental outputs from 8 to 1024 cycles per revolution, enabling high-resolution feedback for applications requiring precise angle detection. The module is rated for operation in harsh industrial environments with temperatures from -40°C to 125°C. It consumes 21 mA of current with a response time of 11 ms, suitable for dynamic motion sensing needs.

This sensor module's configurable zero position and index pulse width provide users with customization options to optimize accuracy and functionality for brushless DC motor commutation, resolver replacement, potentiometer replacements, and various automation and robotics scenarios.

Broadcom's AEAT series is known for reliability, low power consumption, and ease of integration, making this model a preferred choice for industrial controls and electronic instrumentation.

Operates on supply voltage 3 V to 5.5 V with CMOS Hall sensor technology. Output interfaces include SSI, PWM, and UVW incremental output modes. Compact TSSOP-16 package with 16 pins measuring 6.4 mm x 4.4 mm. Industrial temperature range from -40°C to 125°C ensures durability.

Supports up to 512 kHz frequency response and 1024 CPR for precise angle measurement. Low power consumption with 21 mA typical supply current. Suitable for brushless DC motor control, automation, and robotics use cases. Explore more electronic sensor modules and components at EnvMart for your industrial and automation projects.
