STMicroelectronics 6 Axis Surface Motion Sensor Module Gyroscope, Accelerometer 1.71 V to 3.6 V LSM6DSOTR

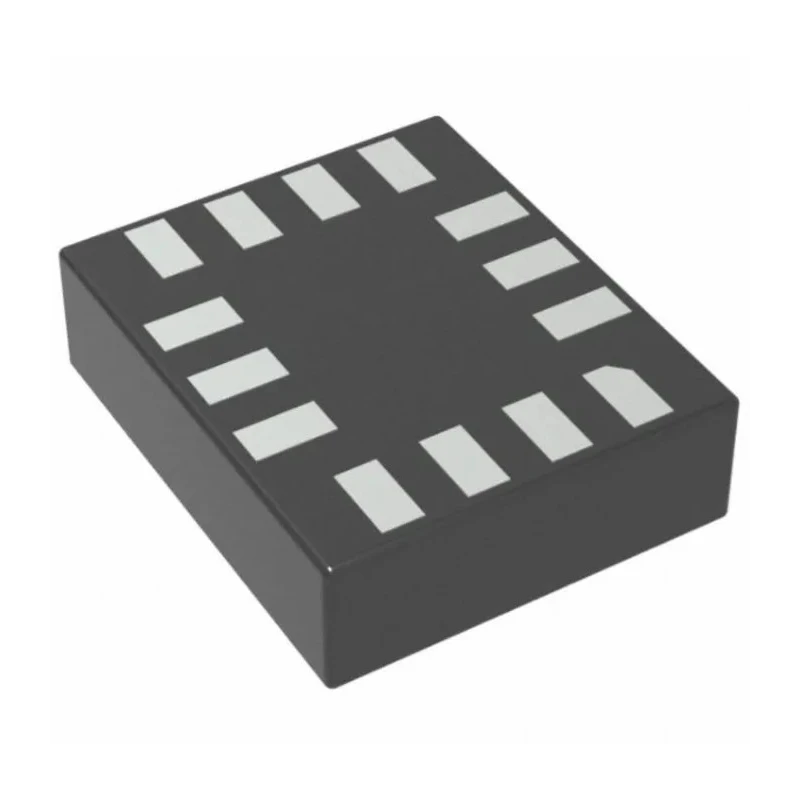

STMicroelectronics LSM6DSOTR 6 Axis Surface Motion Sensor Module combines a gyroscope and accelerometer sensor in a compact LGA-14L package measuring 3 mm in length, 2.5 mm width, and 0.83 mm height. It supports industrial temperature ranges from -40°C to 85°C and operates on a supply voltage range from 1.71 V to 3.6 V, making it suitable for diverse electronic applications including smartphones, wearable devices, and IoT solutions.

This sensor module leverages CMOS technology and supports multiple communication interfaces such as I2C, MIPI I3CSM, and SPI, allowing versatile integration options. The device features a low power consumption of approximately 0.55 mA in combined high-performance mode, enabling "always-on" sensing capabilities.

Key functional capabilities include selectable accelerometer full scales of ±2/±4/±8/±16 g and gyroscope scales of ±125/±250/±500/±1000/±2000 dps, addressing a wide range of motion sensing needs. A smart FIFO buffer of 9 Kbyte supports dynamic data batching for efficient data handling and power management.

Additional embedded functionalities include an advanced pedometer, step and significant motion detectors, tilt detection, and an integrated temperature sensor, enhancing the sensor’s applicability in health monitoring and motion analysis. The auxiliary SPI interface supports Output Image Stabilization (OIS) data output for both sensors.

This module complies with RoHS standards and is designed for surface mount applications in industrial, consumer electronics, wearable technology, and robotics sectors, improving device responsiveness and system performance.

Operates with low power consumption of 0.55 mA in combined mode. Embedded advanced motion detection algorithms. Compact footprint supports high-density PCB layouts. Supports multiple communication protocols for flexible integration.

Wide operating temperature range enhances reliability in harsh environments. RoHS compliant ensuring environmental safety and regulatory alignment. Provides precise motion sensing with high sensitivity (0.06 mg/LSB). Explore the full range of STMicroelectronics Motion Sensor Modules on EnvMart for demanding industrial, laboratory, and consumer electronics applications.
