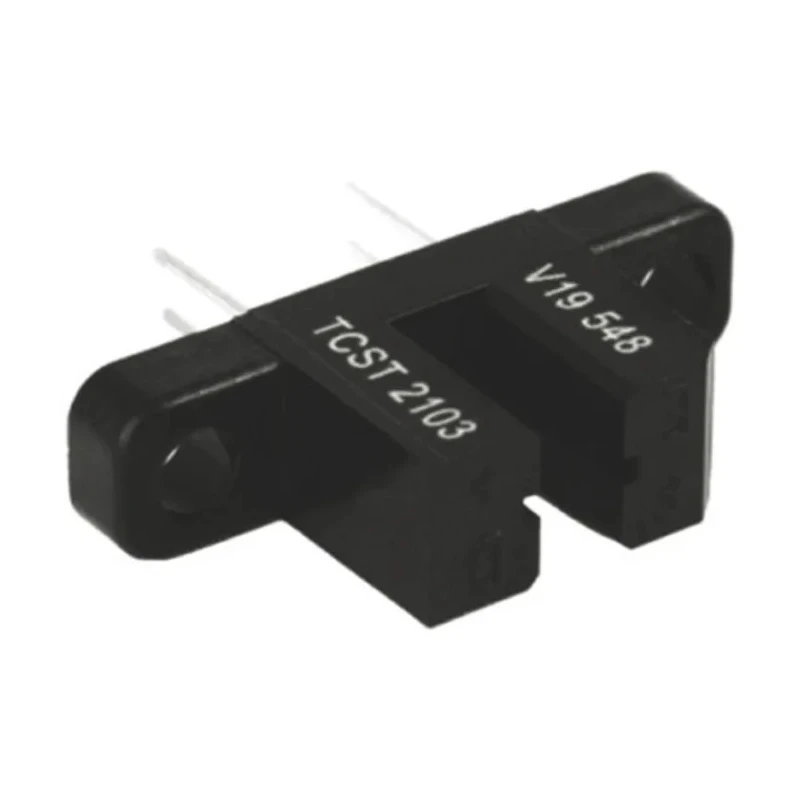

Vishay Through Hole Slotted Optical Switch, Phototransistor Output TCST2103
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 11.1mm |
| Length | 24.5mm |
| Model | TCST2103 |
| Packaging | Tube |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Detector Type | phototransistor |
| Maximum Operating Temperature | 85°C |
| Package Type | Leaded |
| Minimum Operating Temperature | -55°C |
| Slot Width | 3.1mm |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS |
| Number of Pins | 4 |
| Typical Rise Time | 10μs |
| Typical Fall Time | 8μs |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- Miniature slotted optical switch with integrated infrared emitter and phototransistor.
- Leaded through-hole mount package suitable for easy PCB insertion.
- Slot width of 3.1 mm enabling precise optical object interruption sensing.
- Operating temperature range from -55°C to 85°C for robust industrial use.
- Typical rise time of 10 microseconds and fall time of 8 microseconds for fast switching.
- Typical output current of 4 mA under test conditions ensures reliable signal detection.
- RoHS compliant and lead (Pb)-free soldering compatible for environmental safety.
Product Description
Vishay TCST2103 is a miniature slotted optical switch designed for precise object detection in various industrial and electronic applications. This device integrates an infrared emitter and a phototransistor aligned face-to-face within a leaded through-hole package, effectively blocking visible light to ensure accurate optical switching.
The TCST2103 model features a slot width of 3.1 mm, making it suitable for detecting interruptions in light beams, which is essential in applications such as counters, encoders, and photo interrupters.
The device supports a wide operating temperature range from -55°C to 85°C, allowing it to function reliably in harsh environmental conditions. Its typical rise and fall times of 10 µs and 8 µs respectively enable fast and responsive switching performance.
The compact dimensions of 24.5 mm (length) x 6.3 mm (width) x 11.1 mm (height) allow for easy integration into printed circuit boards and equipment where space is limited. The TCST2103 has a typical output current of 4 mA, providing a strong phototransistor output signal suitable for electronic control systems.
It is RoHS compliant and suitable for lead-free soldering processes, supporting environmentally responsible manufacturing practices. Miniature slotted optical switch with integrated infrared emitter and phototransistor. Leaded through-hole mount package suitable for easy PCB insertion.
Slot width of 3.1 mm enabling precise optical object interruption sensing. Operating temperature range from -55°C to 85°C for robust industrial use. Typical rise time of 10 microseconds and fall time of 8 microseconds for fast switching.
Typical output current of 4 mA under test conditions ensures reliable signal detection. Compact dimensions of 24.5 mm length, 6.3 mm width, and 11.1 mm height. RoHS compliant and lead-free soldering compatible.
This slotted optical switch is widely used in industrial automation, optical encoders, counters, mechanical position sensors, and other electronic instrumentation requiring precise, non-contact optical sensing.
Explore more Vishay sensor products and similar Slotted Optical Switches available at EnvMart for reliable sensor integration in your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TCST2103 operates within a temperature range of -55°C to 85°C, making it suitable for robust industrial applications.
This model features a slot width of 3.1 mm, allowing for precise optical object interruption sensing.
The typical rise time is 10 microseconds and the fall time is 8 microseconds, enabling fast switching performance.
Under test conditions, the TCST2103 has a typical output current of 4 mA, providing a reliable signal detection.
The dimensions of this model are 24.5 mm in length, 6.3 mm in width, and 11.1 mm in height.
This optical switch supports a through-hole mount type, making it suitable for easy PCB insertion.
The emitter wavelength of this model is 950 nm, which is typical for infrared applications.
Yes, the TCST2103 is RoHS compliant, ensuring it meets environmental safety standards.
This model has 1 channel, designed for single optical detection applications.
The TCST2103 utilizes a phototransistor as its output device, allowing for effective signal processing.
The TCST2103 is packaged in a tube, which facilitates easy handling and integration into electronic systems.
This optical switch is widely used in applications such as counters, encoders, and mechanical position sensors that require precise, non-contact optical sensing.
