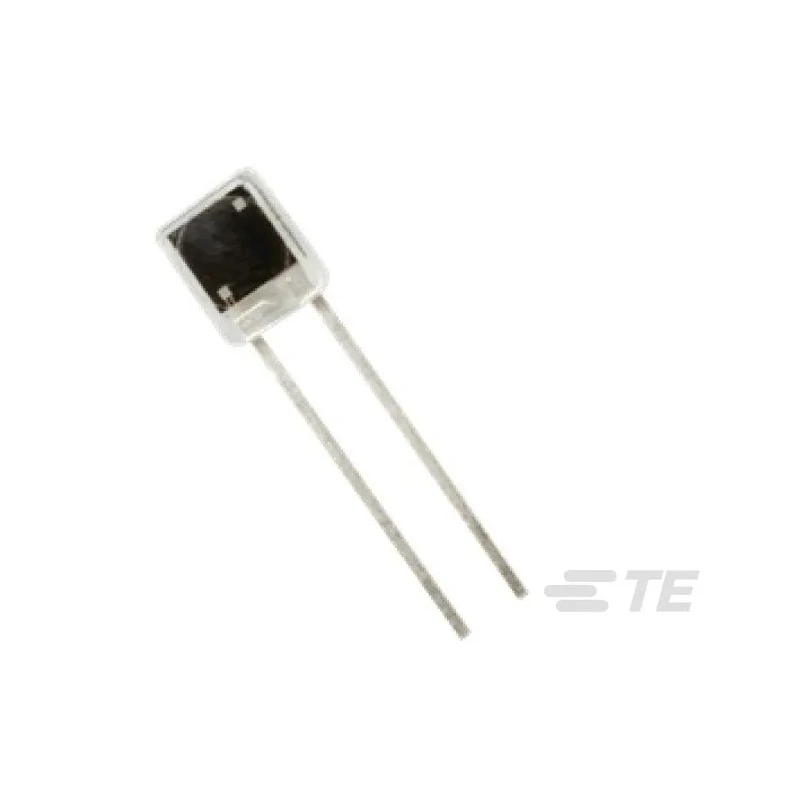

TE Connectivity Biometric Sensor, Optical Technology, 2-Pin, Through Hole Mount, Lead Frame Based Package 20-0696
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 70μm |
| Length | 200μm |
| Model | 20-0696 |
| Width | 170μm |
| Mount Type | Through Hole |
| Series | EPM-4001 |
| Maximum Operating Temperature | 80°C |
| Package Type | Lead frame Based |
| Sensor Technology | Optical |
| Minimum Operating Temperature | -25°C |
| Pin Count | 2 |
| Maximum Supply Voltage | 700mV |
| Active Area | 8.07mm2 |
Key Features
- The sensor utilizes optical technology for accurate biometric sensing.
- It has a 2-pin configuration with through hole mount type.
- Lead frame based package ensures durability and compact form factor.
- Operating temperature ranges from -25°C to 80°C for versatile use.
- Maximum supply voltage is 700 mV supporting efficient power consumption.
- Designed with a compact size of 200μm length, 170μm width, and 70μm height.
- Active sensing area covers 8.07mm² for optimal detection sensitivity.
- Sensor is spectrally matched to 660nm emitters for reliable SpO2 measurement.
Product Description
TE Connectivity 20-0696 is a high-precision biometric sensor featuring optical sensor technology, designed specifically for medical applications requiring accurate oxygen level detection.
This model utilizes a 2-pin lead frame based package with through hole mount for easy integration on printed circuit boards. It operates reliably within a temperature range from -25°C to 80°C and supports a maximum supply voltage of 700mV.
Compact dimensions, with length of 200μm, width 170μm, and height 70μm, and an active area of 8.07mm² enable superior performance in small medical devices. The sensor has a fast response and is matched to specific emitter assemblies with a wavelength of 660nm, enhancing SpO2 measurement accuracy.
Typical applications include pulse oximetry in finger and ear reusable probes, disposable strip probes, and butterfly probes commonly used in acute medical monitoring and post-operative care.
The sensor employs optical technology for precise biometric sensing. 2-pin through hole mounting facilitates robust PCB integration. Lead frame based packaging offers compactness and durability. Wide temperature operating range ensures suitability for diverse environments.
Low supply voltage optimizes power efficiency in medical devices. Compact sensor dimensions support integration in miniature devices. Includes a spectrally matched active area optimized for SpO2 detection. Applications cover both reusable and disposable probe designs.
Manufactured in China, adhering to quality standards.
This product is ideal for use in industrial, medical device manufacturing, laboratory instrumentation, and healthcare applications requiring reliable biometric sensing. Browse the extensive range of sensor ICs and biometric sensors at EnvMart to find complementary components and advanced technology solutions from TE Connectivity.
Explore more products in our Biometric Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -25°C to 80°C.
The maximum supply voltage for this sensor is 700 mV.
This model has dimensions of 200μm in length, 170μm in width, and 70μm in height.
It utilizes a through hole mount type for easy integration onto printed circuit boards.
The active sensing area of this model is 8.07 mm², optimized for detection sensitivity.
This sensor employs optical technology for accurate biometric sensing.
Typical applications include pulse oximetry in finger and ear reusable probes, disposable strip probes, and butterfly probes used in medical monitoring.
This biometric sensor has a 2-pin configuration.
This model is part of the EPM-4001 series.
This product is manufactured in China.
The lead frame based package ensures durability and a compact form factor for the sensor.
