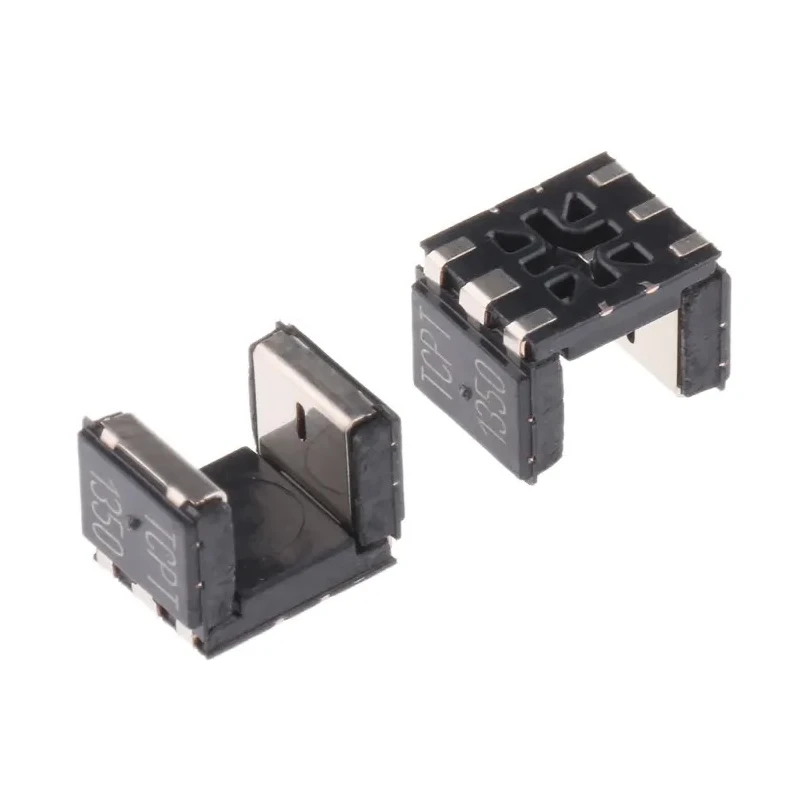

Vishay Surface Slotted Optical Switch, Transistor Output, Leaded Package, 6 Pins, 125°C Max Operating Temperature TCPT1350X01

Vishay TCPT1350X01 is a miniature surface-mounted slotted optical switch featuring a built-in infrared emitter and phototransistor detector arranged face-to-face to block visible light interference. This transistor-output sensor operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial, automotive, and electronics applications.

The device comes in a leaded package with 6 pins designed for easy surface mounting. Its compact dimensions (24.5 x 6.3 x 10.8 mm enclosure, with a slot width of 3.1 mm) enable integration into space-constrained assemblies. The typical rise time of 9 μs and fall time of 16 μs allow swift switching operation critical in counting, positioning, and encoder feedback systems.

Featuring a typical emitter wavelength of 950 nm and a daylight blocking filter, the TCPT1350X01 ensures precise optical detection with minimal interference. It complies with RoHS standards and meets AEC-Q101 automotive quality requirements, making it reliable for transportation and industrial controls.

The sensor is supplied in tape and reel packaging, facilitating automated production lines. Its typical output current under test conditions supports varied application needs. Common use cases include optical switches, photo interrupters, electronic counters, and rotary encoders used in manufacturing equipment, laboratory instruments, and automation systems.

Manufactured in the Philippines by Vishay, a renowned leader in optoelectronics, this component guarantees high product quality and consistent performance. Its robust construction and precise sensing capabilities make it an ideal solution for modern electronic sensor applications.

Equipped with phototransistor detector and transistor output in a leaded package. Compact dimensions ideal for tight assembly spaces and surface mounting. Wide temperature operating range from -40°C to 125°C for versatility.

Fast response times with 9 μs rise and 16 μs fall times. Compliant with RoHS and automotive AEC-Q101 standards. Emitter wavelength of 950 nm ensures precise optical sensing. Suitable for optical switching, counting, and encoder applications.
