Digital ORP Probe HI2004-1810, Platinum Sensor, PTFE, RS485, PVDF Body | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-10m (32.8')

Name: Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-10m (32.8')
Brand: Hanna
SKU: 72351
Price: 619 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Condition	New
Body Material	PVDF
Operating Temperature	-5 to 100 °C
Dimensions	140 (L) x 22.5 (OD) mm
Environment	Industrial, Laboratory, Water Treatment, Process Applications
Model	HI2004-1810
Cable Length	10 m
Temperature Sensor	Pt100
Max. Pressure	6 bar 87 psi
Connector Type	Direct wire connection
Type of Electrolyte	polymer
Matching Pin	yes
Series	HI2000 Digital Process ORP Probes
Sensor Material	Platinum
MPN	HI2004-1810
Reference Junction	PTFE, Double Junction

Key Features

HI2000 Series HI2004-1810 Digital Process ORP Probe with platinum sensor, PTFE junction, and a 10 meter cable for industrial inline use.

Engineered for high-precision oxidation-reduction potential (ORP) measurement in demanding industrial and process environments.
Features a platinum sensor with chemically resistant PTFE reference junction for reliable performance and extended probe life.
Supports a broad measurement range of ±2000 mV, suitable for water treatment, chemical processing, and effluent monitoring.
Rugged PVDF body with 3/4" NPT threaded insertion mounting for inline or submersion applications.
Equipped with built-in PT100 temperature sensor for compensating temperature variations.
Digital RS485 output for seamless integration with process controllers including the HI510 Universal Process Controller.
Double junction design and polymer electrolyte minimize contamination and maintenance frequency.
Direct wire connection ensures robust industrial data transmission with automatic probe detection.
Operating temperature from -5°C to 100°C, accommodates a wide range of process conditions.
Maximum pressure supported up to 6 bar (87 psi).

Product Description

The HI2000 Series HI2004-1810 Digital Process ORP Probe is a specialized industrial sensor designed for precise measurement of oxidation-reduction potential (ORP) in harsh monitoring and control applications. This probe is equipped with a high-purity platinum sensor and a chemically resistant PTFE reference junction to provide both reliability and extended operational longevity in environments with aggressive chemicals or contaminants. The housing is constructed from robust PVDF, which ensures mechanical strength and compatibility with various process fluids.

This probe supports a broad measurement range of ±2000 mV, making it suitable for water treatment, chemical process industries, laboratory systems, and wastewater applications. It features a built-in PT100 temperature sensor for automatic compensation, guaranteeing accurate ORP readings across its operating temperature range of -5°C to 100°C. The HI2004-1810 is designed for easy installation using a ¾” NPT threaded connection, allowing for both inline and submersion mounting in process lines.

Platinum sensor element with PTFE double reference junction for precision and chemical durability.

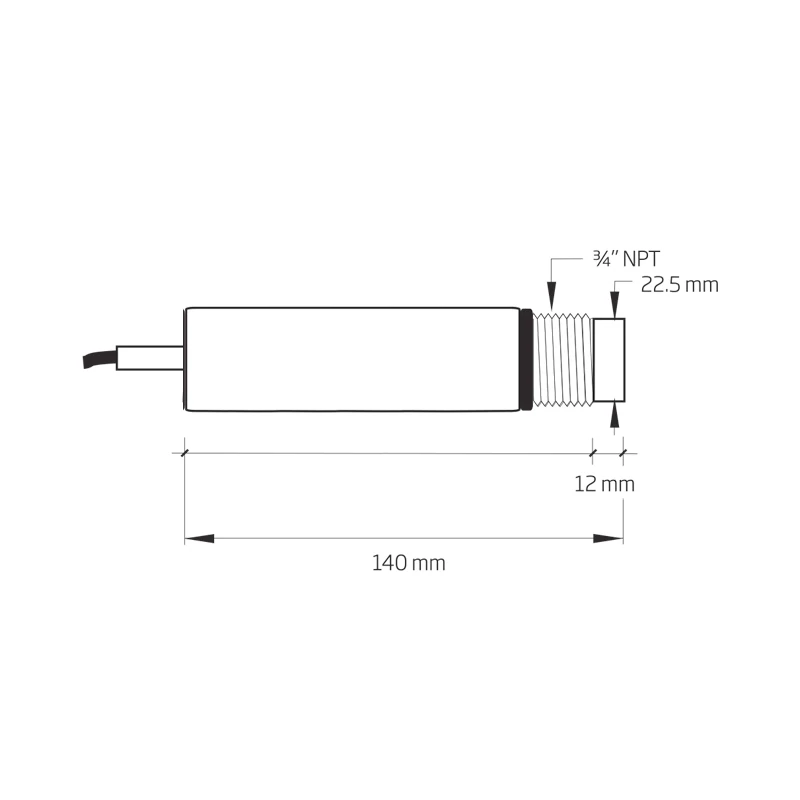

Body length of 140 mm and outside diameter of 22.5 mm ensures compact, robust installation, even in tight piping runs.
Polymer electrolyte technology and double junction design minimize fouling and maintenance downtime.
Direct wire RS485 digital output supports long-distance communication with industrial controllers and automatic probe detection.
Maximum supported pressure is 6 bar (87 psi), with a recommended flow rate through the junction for optimal performance.

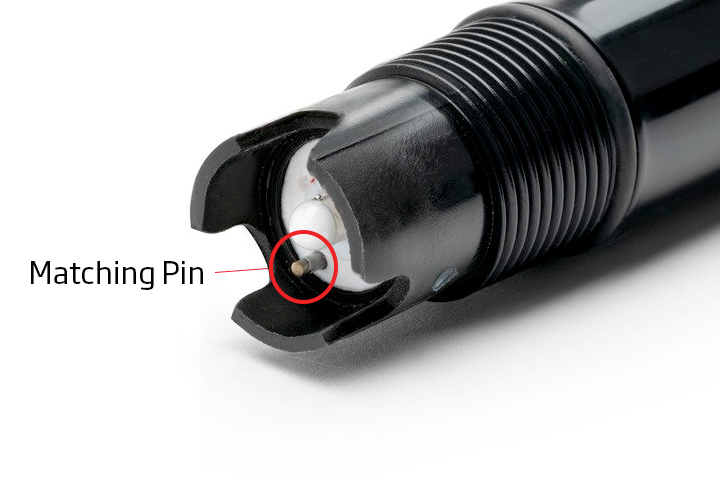

Integrated matching pin and built-in PT100 temperature sensor for advanced process diagnostics and compensation.
Chemically resistant PVDF construction backed with a PTFE junction extends service life in aggressive media.

This probe is fully compatible with advanced process controllers such as the HI510 Universal Process Controller, allowing automatic device recognition and digital data communication. Suitable for continuous monitoring in industrial, water treatment, chemical plants, and laboratory process control environments.
