Digital Process ORP Probe Platinum PTFE Double Junction 15m PVDF RS485 HI2000 Series | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-15m (49.2')

Name: Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-15m (49.2')
Brand: Hanna
SKU: 72352
Price: 742.46 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF
Product Type	Digital Process ORP Probe

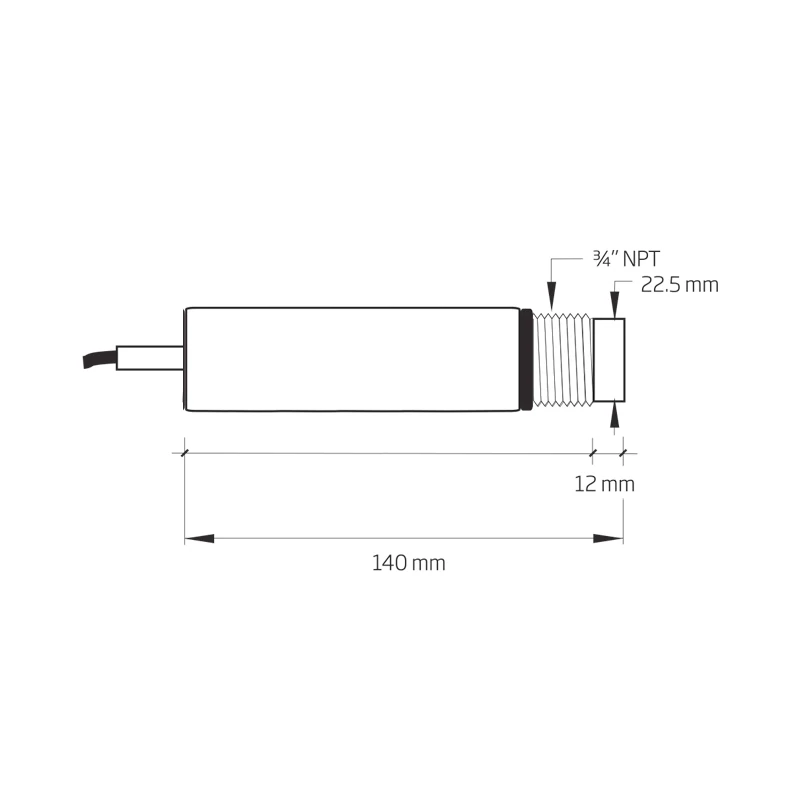

Outer Diameter	22.5 mm
Cable Length	15 m
Temperature Sensor	Pt100
Type of Electrolyte	polymer
Matching Pin	yes
Max Pressure	6 bar
Overall Length	140 mm
Series	HI2000 Series
Junction Type	Double PTFE
Sensor Material	Platinum
Product Condition	New
Environment Temperature Range	-5 to 100 °C
Max Pressure (psi)	87 psi
Environment Temperature Range (F)	23 to 212 °F
Direct Wire Connection	Yes

Key Features

Digital process ORP probe from the HI2000 Series with platinum sensor, PTFE double junction, PVDF body, 15m direct wire cable, and RS485 output for industrial and laboratory monitoring.

Features a platinum measuring sensor for accurate ORP measurement.
Double PTFE junction offers excellent chemical resistance in harsh environments.
Equipped with a built-in pt100 temperature sensor for real-time temperature correction.
PVDF body construction provides durability and corrosion resistance.
Supplied with a 15m (49.2 ft) cable for flexible installation.
Digital output via RS485 ensures reliable signal transmission for automation.
3/4 inch NPT threaded design allows in-line or submersion mounting with a probe holder.
Measures a wide ORP range of ±2000 mV, suitable for a variety of industrial processes.
Operates in challenging environments from -5 to 100 ºC and pressures up to 6 bar (87 psi).
Chemically resistant construction for harsh water treatment, chemical, and process applications.

Product Description

This digital process ORP probe from the HI2000 Series is designed for precise oxidation-reduction potential (ORP) measurements in industrial, water treatment, and laboratory environments. The probe features a platinum sensor for reliable and accurate ORP detection, with a double PTFE reference junction optimized for chemical resistance in demanding process applications.

Measuring range of ±2000 mV enables compatibility with diverse monitoring and control requirements.
PVDF body offers corrosion resistance and the ability to withstand tough industrial environments.
Equipped with a built-in pt100 temperature sensor for automatic temperature compensation.
Direct wire connection and a 15-meter (49.2 ft) cable provide ample installation flexibility.
Digital communication via RS485 for seamless integration with controllers such as the HI510 Universal Process Controller.
3/4 inch NPT threaded connection for both in-line and submersion installation using suitable holders.
Probe mounting and design engineered for easy serviceability and reliable long-term operation.
Double reference junction (PTFE) enhances performance with aggressive sample types and elevated process flow rates.
Rated for use in environments from -5 to 100 ºC and maximum pressure of 6 bar (87 psi).
Polymer electrolyte and PVDF material construction further expand chemical compatibility for process control, wastewater treatment, and laboratory automation.

Applications include automation in water treatment facilities, chemical process industries, environmental laboratories, and integration into SCADA, PLC, or universal process controller systems requiring robust, high-performance ORP monitoring.
