HI2004-1825 Digital Process ORP Probe, Platinum, PTFE Junction, PVDF Body, 25m | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-25m (82.0')

Name: Hanna HI2000 Series Digital Process ORP Probes-Platinum-PTFE-25m (82.0')
Brand: Hanna
SKU: 72353
Price: 944.95 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF
Operating Temperature	-5 to 100 ºC
Outer Diameter	22.5 mm
Model	HI2004-1825
Cable Length	25 m
Temperature Sensor	Pt100
Connector Type	Direct wire connection

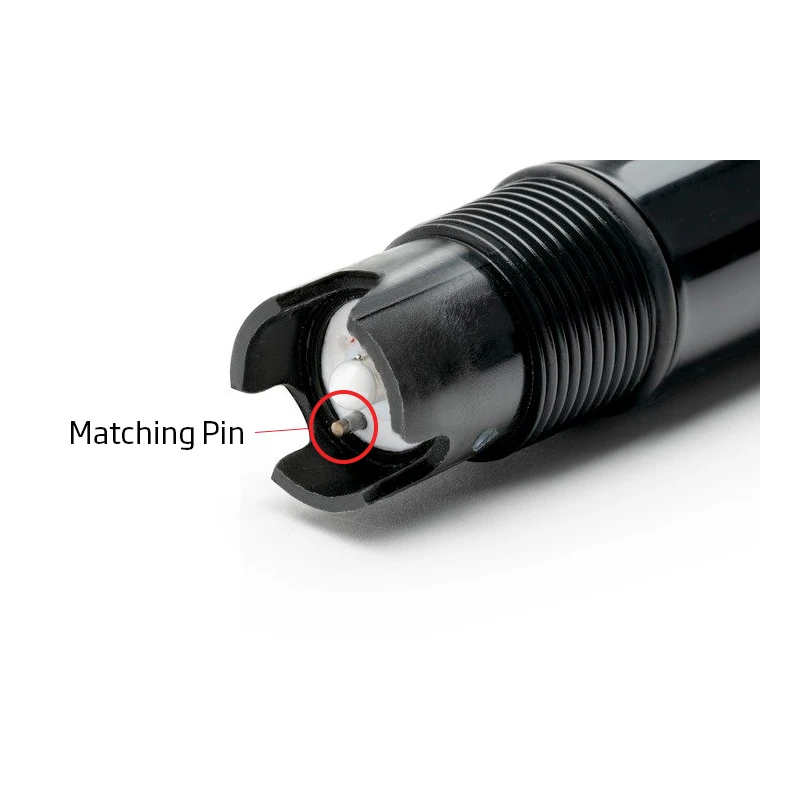

Matching Pin	yes
Operating Pressure	87 psi
Sensor Type	Platinum
Max Pressure	6 bar
Overall Length	140 mm
Product Condition	New
MPN	HI2004-1825
Electrolyte Type	Polymer
Reference Junction	Double PTFE
Junction/Flow Rate	Double junction

Key Features

HI2004-1825 Digital Process ORP Probe designed for precise industrial monitoring and control applications.

Features a platinum sensor and double PTFE reference junction for high chemical resistance.
Constructed with a robust PVDF body with 22.5 mm outer diameter for enhanced durability.
Equipped with built-in Pt100 temperature sensor for accurate temperature compensation.
Operates in harsh environments from -5 to 100 ºC and up to 6 bar pressure.
Direct wire digital RS485 output for reliable data transmission and automatic probe detection.
Measures ORP ranges from ±2000 mV with high stability.
Complete with 25 m (82.0') cable for flexible installation in process systems.
Mountable via standard 3/4" NPT threaded connector for in-line or submersion use.
Compatible with HI510 Universal Process Controller for integrated process automation.
Polymer electrolyte reduces maintenance and extends lifespan in industrial operation.

Product Description

The HI2004-1825 Digital Process ORP Probe is specifically designed for demanding industrial and laboratory applications, featuring a platinum sensor and double PTFE reference junction. Its PVDF body delivers excellent chemical resistance, and the 22.5 mm outer diameter ensures robust performance in continuous process environments.

A built-in Pt100 temperature sensor provides real-time temperature compensation, enabling highly accurate ORP measurements over a wide operational range from -5 to 100 ºC and up to 6 bar (87 psi) pressure. The probe outputs via a digital RS485 interface for direct integration with the HI510 Universal Process Controller and other process devices, ensuring reliable data transfer.

Platinum sensing element with double PTFE junction for superior accuracy and corrosion resistance.
PVDF chemically resistant body for long-term operation in aggressive industrial conditions.
3/4" NPT threaded fitting supports both in-line and submersion mounting options.
Measures a wide ORP range of ±2000 mV, suitable for a variety of monitoring and control systems.
Polymer electrolyte and double junction design minimize contamination and maintenance requirements.
Comes with a 25 meter cable (82.0'), supporting flexible installation strategies.
Direct wire, digital RS485 communication enables remote monitoring and automated detection.
Operating environment: -5 to 100 ºC (23 to 212 ºF); pressure to 6 bar (87 psi).

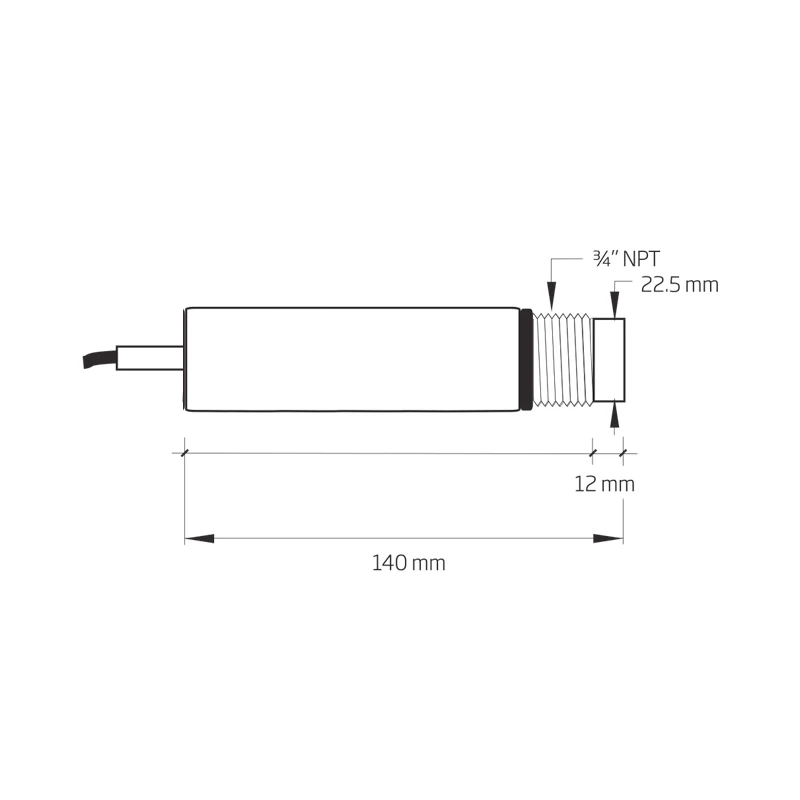

Overall length: 140 mm; outer diameter: 22.5 mm; body material: PVDF.

Applications include water treatment plants, chemical processing industries, research laboratories, and manufacturing environments where reliable, high-accuracy ORP measurement is required. Compatible with universal process automation systems and designed for rigorous industrial use.
