Hanna HI2000 Series Digital Process ORP Probes-Platinum-Ceramic-15m (49.2')
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | 1 ORP probe with 25m cable |
| Measurement Range | ±2000 mV |
| Body Material | PVDF |
| Operating Temperature | -5 to 100 °C 23 to 212 °F |
| Product Type | Digital Process ORP Probe |
| Environment | Industrial/Laboratory/Water Treatment |
| Outer Diameter | 22.5 mm |
| Cable Length | 25 m |
| Temperature Sensor | Pt100 |
| Max. Pressure | 6 bar 87 psi |
| Connector Type | Direct wire connection |

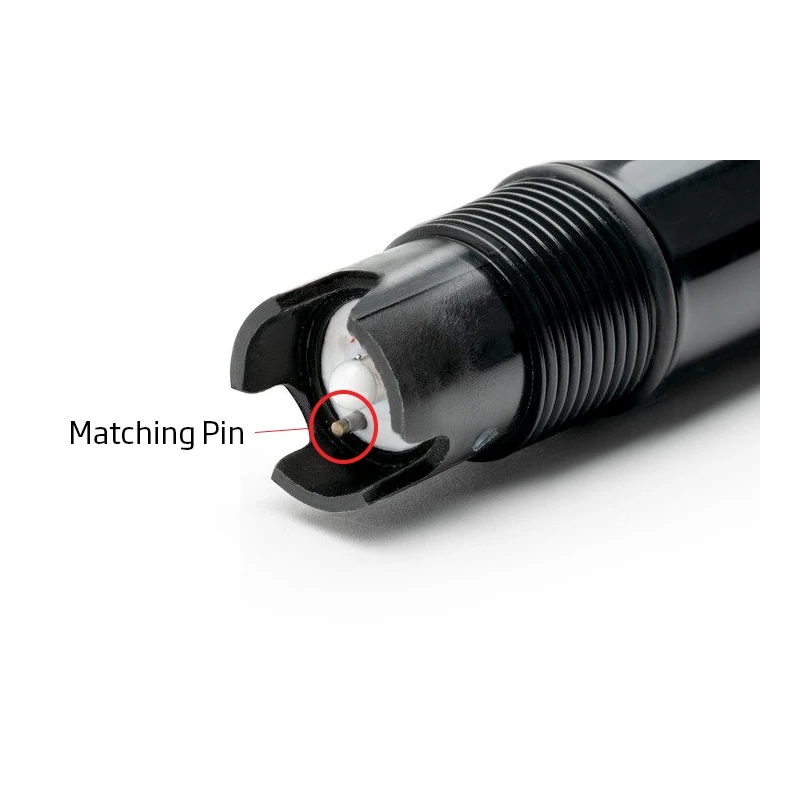

| Matching Pin | yes |
| Body Length | 140 mm |
| Sensor Material | Platinum |
| Product Condition | New |
| Electrolyte Type | Polymer |
| Reference Junction | Ceramic, Double Junction |
Key Features
Digital process ORP probe with platinum sensor, ceramic junction, PVDF body, and RS485 digital output for industrial monitoring and control applications.
- Features a platinum sensor for accurate oxidation-reduction potential (ORP) measurement.
- Chemically resistant PVDF (polyvinylidene fluoride) body suitable for harsh industrial environments.
- Ceramic reference junction designed for reliable performance and low maintenance.
- Integrated Pt100 temperature sensor ensures temperature-compensated readings.
- Double junction design enhances longevity and resists contamination.
- Supports digital RS485 communication protocol for easy integration with process controllers.
- Direct wire connection for secure signal transmission.
- Mounts via 3/4" NPT threaded connection, suitable for in-line or submersion installation.
- Measures a wide ORP range of ±2000 mV, suitable for diverse water treatment and industrial applications.
- Maximum pressure rating of 6 bar (87 psi) and an operating temperature range from -5 to 100°C.
Product Description
This digital process ORP probe features a platinum sensing element, ceramic reference junction, and durable PVDF body with integrated Pt100 temperature sensor. Designed for industrial process monitoring and control, it accurately measures oxidation-reduction potential (ORP) in water treatment, manufacturing, chemical processing, and laboratory environments. The double junction and polymer electrolyte increase reliability and extend service life, while the RS485 digital output enables seamless communication with modern universal process controllers.
- Platinum sensor delivers high-precision ORP measurement with wide ±2000 mV range.
- Chemically resistant PVDF body withstands aggressive chemicals and high temperatures up to 100°C.
- Ceramic junction ensures stable reference and minimal clogging during continuous operation.
- Integrated Pt100 temperature sensor provides temperature-compensated output for improved accuracy.
- Digital RS485 interface allows for automated detection, data transmission, and compatibility with the HI510 Universal Process Controller and other industrial control systems.
- Direct wire connection reduces risks of signal loss or interference in demanding environments.
- Threaded 3/4" NPT mounting supports both in-line and submersion installations, offering installation versatility.
- Double junction reference system with polymer electrolyte enhances sensor resistance to contamination, ensuring longevity in challenging process streams.
- Supports operation between -5°C and 100°C with maximum pressure of 6 bar (87 psi).

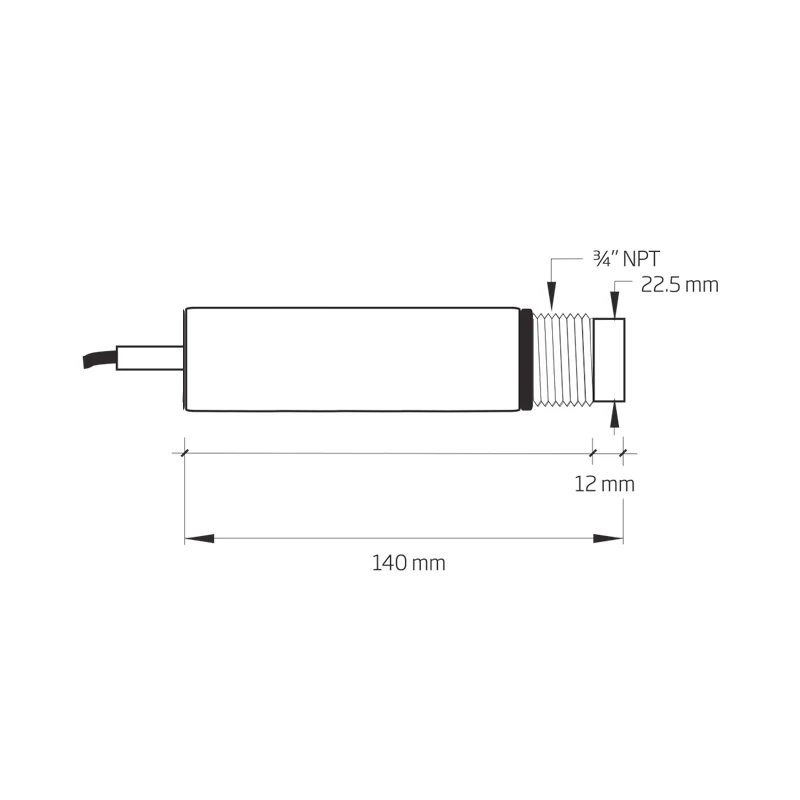

- Outer diameter 22.5 mm; overall body length 140 mm; supplied with robust 25 m (82 ft) cable for flexible installation.
Typical use cases include industrial water and wastewater monitoring, laboratory process control, chemical and pharmaceutical manufacturing, and water treatment plants. Compatible with automatic, remote, and digital process control systems using RS485.
Explore more sensors and laboratory electrodes in the ORP Electrodes category on EnvMart.
