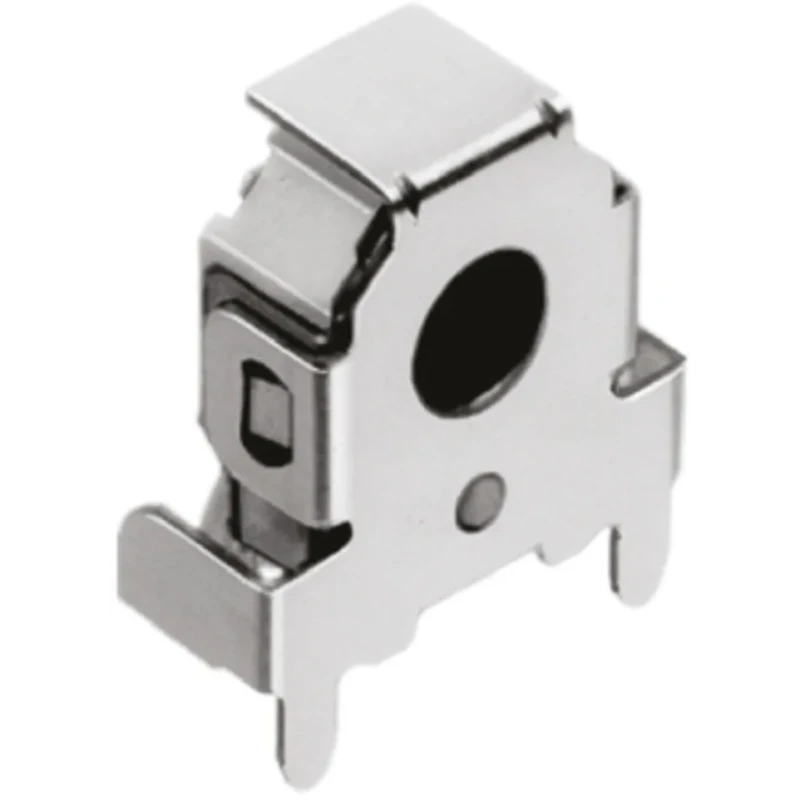

Alps Alpine 12 ppr Pulse Incremental Mechanical Rotary Encoder with 2 mm Hollow Shaft Bracket Mount EC05E1220202

Alps Alpine EC05E1220202 Mechanical Rotary Encoder provides reliable mechanical incremental encoding with 12 pulses per revolution and a 2 mm hollow shaft. Designed for precise position sensing, this encoder is ideal for use in electronic devices, industrial machinery, and automation applications where accurate pulse feedback is essential.

The bracket mount design facilitates secure and stable installation on surfaces. With a mounting hole diameter of 1.5 mm, it fits common mounting schemes without complexity. The encoder features a robust current rating of 0.55mA and complies with RoHS environmental standards, ensuring sustainability and safety.

Operating reliably within a wide temperature range from -30 to +85 degrees Celsius, the product delivers consistent performance in demanding industrial environments. The EC05E series employs proprietary Alps DRUMCODE™ technology, combining compact mechanical design with long-lasting operation - rated at 100,000 cycles typically.

This pulse incremental rotary encoder provides incremental output signals, facilitating precise angular position measurement without index signals. Ideal for various applications including manufacturing automation, motor feedback systems, robotics, and other electronic sensor implementations.

The encoder features 12 pulses per revolution providing accurate position feedback. It incorporates a 2 mm hollow shaft for compact and easy installation. Bracket mount style enables stable and secure surface mounting. Designed with a 1.5 mm mounting hole diameter compatible with standard fittings.

The incremental encoder operates with 0.55mA current rating ensuring low power consumption. Complies with RoHS standards ensuring environmentally safe construction. Operating temperature range from -30 to +85 degrees Celsius for robust performance.

Constructed using Alps DRUMCODE™ technology offering reliable mechanical encoding. Typical recommended operating voltage is 5V DC with a long operating life of approximately 100,000 cycles. Manufactured in Japan ensuring high quality and precision engineering.

This product is suited for industrial, electronic equipment manufacturing, laboratory instrumentation, automation systems, and related fields requiring accurate rotary position sensing.
