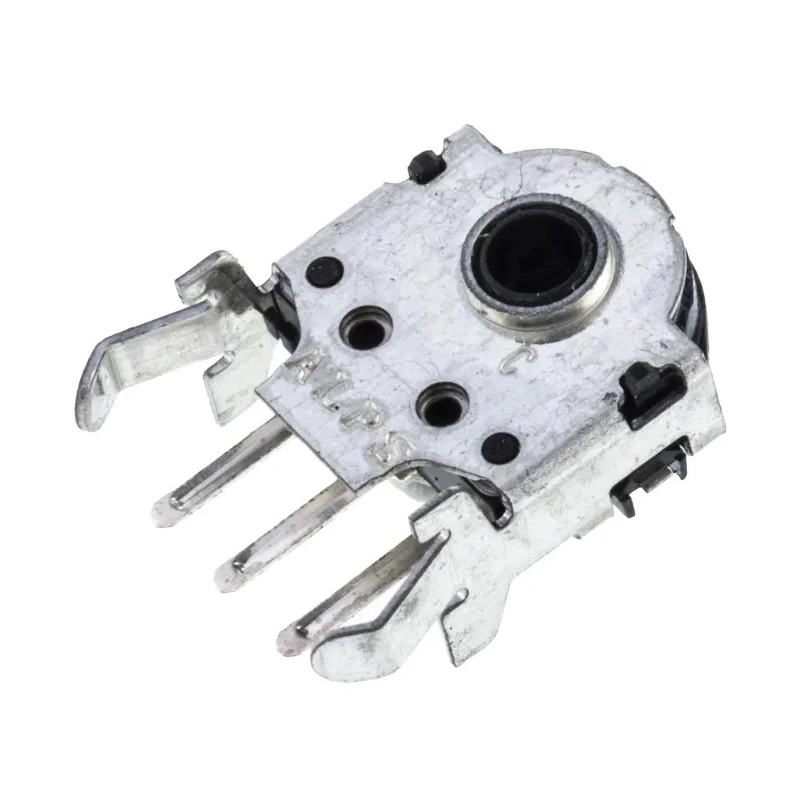

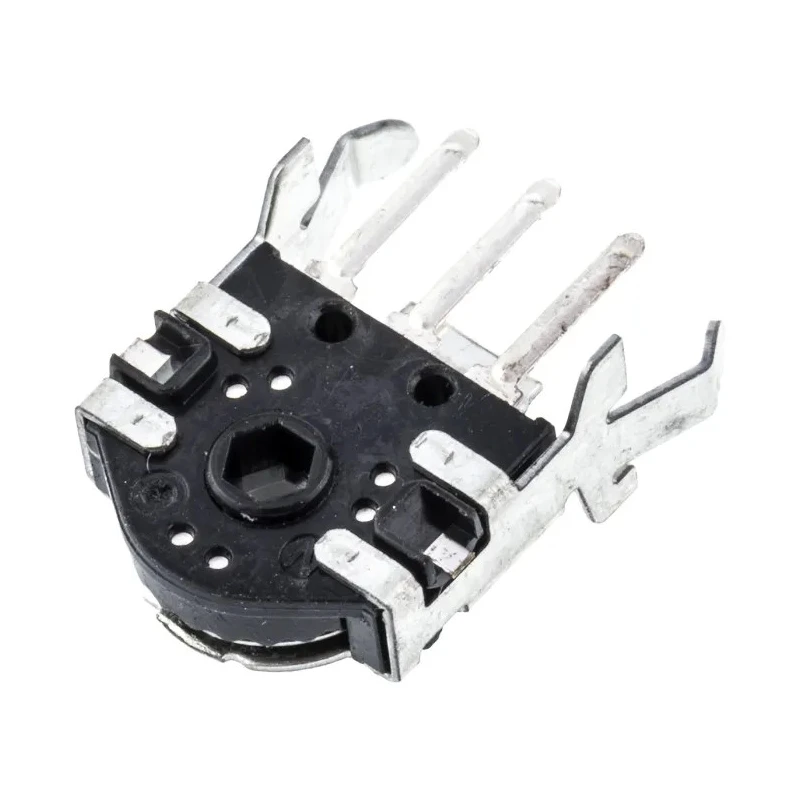

Alps Alpine 12 ppr Pulse Incremental Mechanical Rotary Encoder with 3.6 mm Hollow Shaft, Not Indexed, Through EC10E1220505
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | EC10E1220505 |
| Mount Type | Through Hole |
| Current Rating | 1mA |
| Series | EC10 |
| Shaft Diameter | 3.6mm |
| Shaft Length | 10mm |
| Pulses per Revolution | 12ppr |
| Standards/Approvals | RoHS |
| Shaft Style | Hollow |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Index Output | Not Indexed |
Key Features
- Compact 10 mm hollow shaft design suitable for rotary sensing applications.
- Produces 12 pulses per revolution for accurate positional feedback.
- Not indexed, suitable for incremental position measurement.
- Through hole mounting style ensures secure mechanical attachment.
- Digital square wave output signal compatible with standard incremental encoder interfaces.
- Rated for 1 mA current and RoHS compliant for environmental safety.
- Operating temperature range from minus 30 to plus 85 degrees Celsius.
- Manufactured in Japan ensuring high quality and reliability.
Product Description
Alps Alpine EC10E1220505 is a 12 ppr Pulse Incremental Mechanical Rotary Encoder featuring a 3.6 mm hollow shaft and a through hole mounting design. This encoder provides incremental position feedback through a digital square wave signal, designed for precision rotational measurement in various industrial and electronic applications.
This compact encoder delivers 12 pulses per revolution, enabling fine positional resolution and accurate speed control in automation, robotics, and measurement instruments. The 10 mm hollow shaft provides a robust mechanical interface, while the through hole mount ensures secure installation.
Designed with durability in mind, this encoder boasts an operational lifespan of 100,000 cycles and an operating temperature range from -30°C to +85°C, making it suitable for demanding industrial environments. The unit operates at a typical rating of 5 V DC and is capable of handling a current rating of 1 mA.
The EC10E1220505 is RoHS compliant, reflecting adherence to environmental regulations. Its not indexed output means it is ideal for incremental applications where absolute position referencing is not required.
Compact 10 mm hollow shaft design for flexible installation. Generates 12 pulses per revolution for precise positional feedback. Digital square wave output compatible with incremental encoders. Through hole mount style enables stable mechanical fitting.
Rated current capacity of 1 mA ensures low power consumption. Long operational life of up to 100,000 cycles supports durability. Wide operating temperature range from -30°C to +85°C suits harsh conditions. RoHS compliant for environmentally responsible usage.
Manufactured in Japan for high reliability and quality assurance. Applicable in industrial automation, robotics, and measurement instruments.
This mechanical rotary encoder is ideal for industrial, laboratory, manufacturing, and electronic sensor applications requiring reliable incremental rotary position sensing. Explore further quality Alps Alpine sensors and components in our Electronics & Electricals Sensors category at EnvMart.
Explore more products in our Rotary Encoders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model generates 12 pulses per revolution, providing precise positional feedback for incremental position measurement.
It produces a digital square wave output signal, which is compatible with standard incremental encoder interfaces.
The shaft diameter of this encoder is 3.6 mm, designed for a compact and efficient mechanical interface.
This unit operates effectively within a temperature range of -30°C to +85°C, suitable for various industrial environments.
The encoder has a current rating of 1 mA, ensuring low power consumption during operation.
It features a through hole mounting style, which ensures a secure mechanical attachment during installation.
No, the output is not indexed, making it suitable for applications where absolute position referencing is not required.
This encoder is manufactured in Japan, ensuring high reliability and quality assurance.
It is applicable in industrial automation, robotics, and measurement instruments requiring reliable incremental rotary position sensing.
The operational lifespan of this model is rated for up to 100,000 cycles, supporting its durability in various applications.
The EC10E1220505 is RoHS compliant, reflecting adherence to environmental safety regulations.
It provides incremental encoder readings, which are essential for applications requiring positional feedback without absolute referencing.
