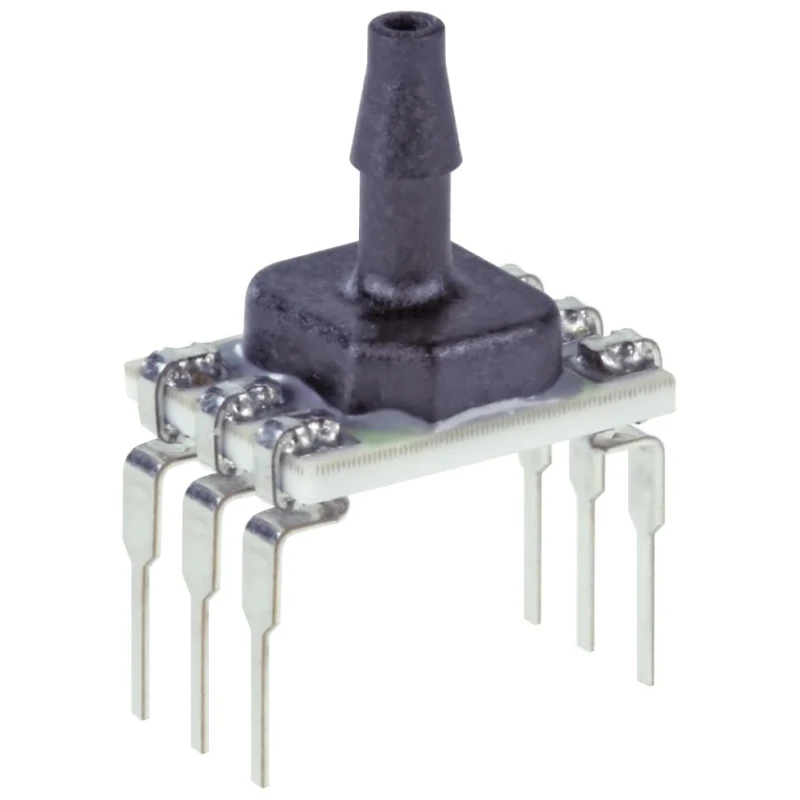

Honeywell Technologies Piezoresistive Pressure Sensor Board 6 DIP 30 psi Operating Pressure ABPDANT030PG0D3

Honeywell Technologies ABPDANT030PG0D3 is a high-precision piezoresistive pressure sensor board featuring a 6 DIP pin package designed for low-pressure measurement applications. This sensor supports gauge and differential pressure sensing with a maximum operating pressure of 30 psi and delivers outputs via ratiometric analog or 12-bit digital interfaces compatible with I2C or SPI. It functions reliably over a wide temperature range from -40 °C to +85 °C, making it suitable for diverse industrial, medical, HVAC, and commercial settings.

The sensor's onboard signal processing enables pressure reading updates at a rate of up to 1kHz analog and 2kHz digital, providing responsive and accurate pressure monitoring. Its compact board mount design facilitates PCB integration, and its 6-pin DIP package with single axial barbed port allows versatile mounting and connection options.

Manufactured under ISO 9001 processes, the ABPDANT030PG0D3 sensor uses food-safe certified materials that ensure compliance with BPA Free, LFGB, and NSF-169, enabling its use in consumer-facing products and medical devices. It includes robust overload protection rated to 413 kPa to prevent sensor damage and maintain measurement integrity under stress.

Typical applications include CPAP and ventilator pressure monitoring, pneumatic control systems, valve position feedback, blood analysis equipment, HVAC and process gas monitoring, and commercial appliances such as coffee makers. Variants with silicone-based gel coatings support measurement of non-corrosive liquids and condensates, while dry-gas only options are also available.

This sensor combines precision, reliability, and robust construction in a compact footprint, making it ideal for embedded pressure sensing across industrial, laboratory, medical, and commercial domains.

Compact 6-pin DIP board-mount package for easy PCB integration. ±0.25% accuracy with total error band ±1.5% FSS across compensated range. Operating temperature range of -40 °C to +85 °C for versatile environments. Compatible with 3.3 V or 5 V supplies for design flexibility.

Food-safety certified with BPA Free, LFGB, and NSF-169 standards. Overload protection up to 413 kPa for enhanced device safety. High update rates: 1 kHz analog and 2 kHz digital outputs. Suitable for medical, HVAC, pneumatic, and commercial appliance applications.
