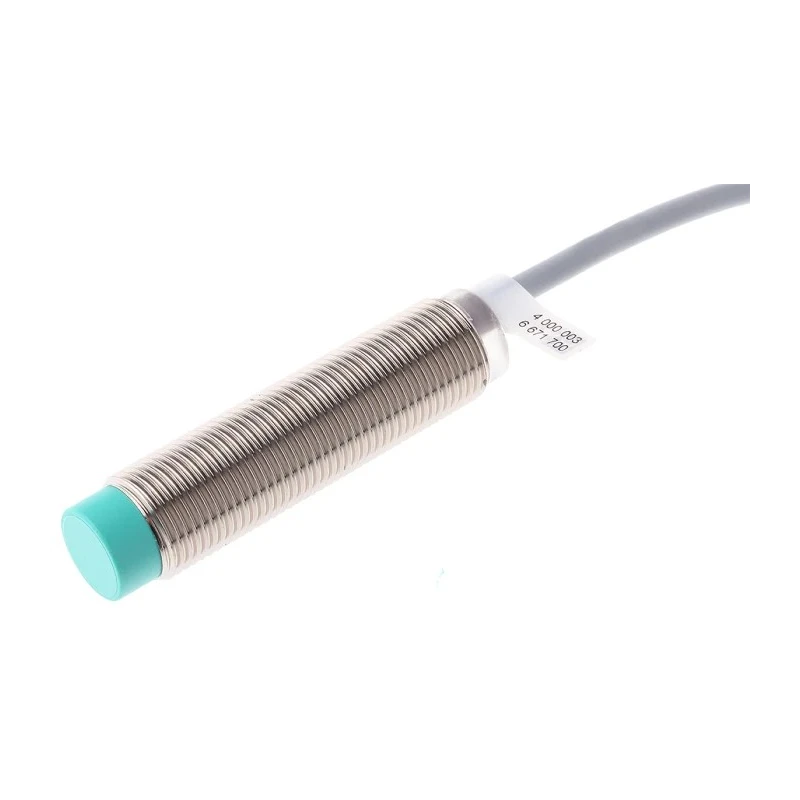

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 36 V DC 200mA 4mm NBN4-12GM50-E0
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 50mm |
| Model | NBN4-12GM50-E0 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | NPN |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2.65kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 4mm |
| SENSOR, INDUCTIVE, PROXIMITY, CYLINDRICAL, SENSING DISTANCE 4MMBrand | Pepperl + Fuchs |
Key Features
- Threaded barrel body style with M12 thread size and 50 mm length.
- Brass white bronze coated housing with PBT sensing face for durability.
- Operates at 36 V DC with 200 mA maximum switching current.
- Unshielded sensor design requiring non-flush mounting for 4 mm sensing distance.
- IP68 rated for dust and water ingress protection suitable for harsh environments.
- Pre-cabled terminal type with 3-wire DC output configuration.
- Operating temperature range from -40°C to 85°C for diverse industrial applications.
- Complies with DNV GL classification rules for maritime standards.
Product Description
The Pepperl + Fuchs NBN4-12GM50-E0 is a high-quality threaded barrel inductive proximity sensor designed for industrial applications requiring reliable metal object detection without contact.
This model features an M12 thread size with a body length of 50 mm and a body diameter of 12 mm, housed in a durable brass white bronze coated casing that ensures long-term robustness.
Equipped with a 3-wire DC output configuration and a pre-cabled terminal, it operates efficiently at 36 V DC with a switching current capacity of 200 mA. The sensor has an unshielded design, enabling a maximum sensing range of 4 mm, which requires non-flush mounting to avoid interference from surrounding metal.
The sensor conforms to the IP68 ingress protection rating, making it suitable for use in environments prone to dust and water ingress, thereby enhancing its durability in harsh conditions.
The operating temperature range from -40°C to 85°C permits versatile applications across diverse industrial settings, including automation systems, manufacturing, and control gear installations.
It complies with DNV GL classification rules, affirming its suitability for maritime and shipbuilding sectors that demand stringent safety and operational standards. With a maximum switching frequency of 2.65 kHz, the sensor supports rapid switching cycles, enhancing automation precision.
Manufactured in Vietnam, this product is ideal for various industrial automation, manufacturing, and control signaling tasks where non-contact detection of metal components is crucial.
The sensor uses nickel-plated brass housing with a PBT sensing face for a reliable yet cost-effective solution compared to stainless steel alternatives. Unshielded design offers greater sensing distance but requires non-flush mounting to avoid premature triggering.

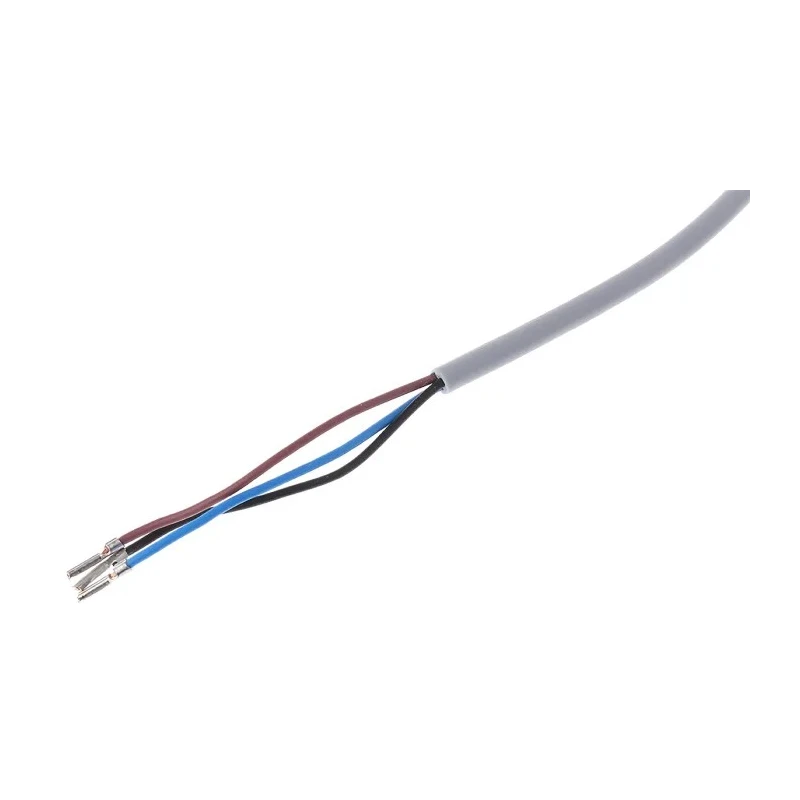

Pre-wired versions include a 2-meter PVC cable for easy installation. Explore more Pepperl + Fuchs sensors and industrial automation solutions at EnvMart for enhanced productivity and quality assurance.
Explore more products in our Inductive Proximity Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing distance of this model is 4 mm, and it requires non-flush mounting due to its unshielded design.
This sensor operates at a maximum voltage of 36 V DC.
The maximum switching current for this unit is 200 mA.
The sensor has an IP68 rating, indicating it is protected against dust and water ingress, making it suitable for harsh environments.
It operates within a temperature range of -40°C to 85°C, allowing for diverse industrial applications.
This model features an NPN output type with a pre-cabled terminal configuration.
The sensor has a threaded barrel body style with an M12 thread size.
The maximum switching frequency is 2.65 kHz, supporting rapid switching cycles.
The housing is made of brass white bronze coated material, providing durability.
This inductive proximity sensor is manufactured in Vietnam.
It complies with DNV GL classification rules for maritime standards, ensuring suitability for shipbuilding applications.
The body diameter of this model is 12 mm.
