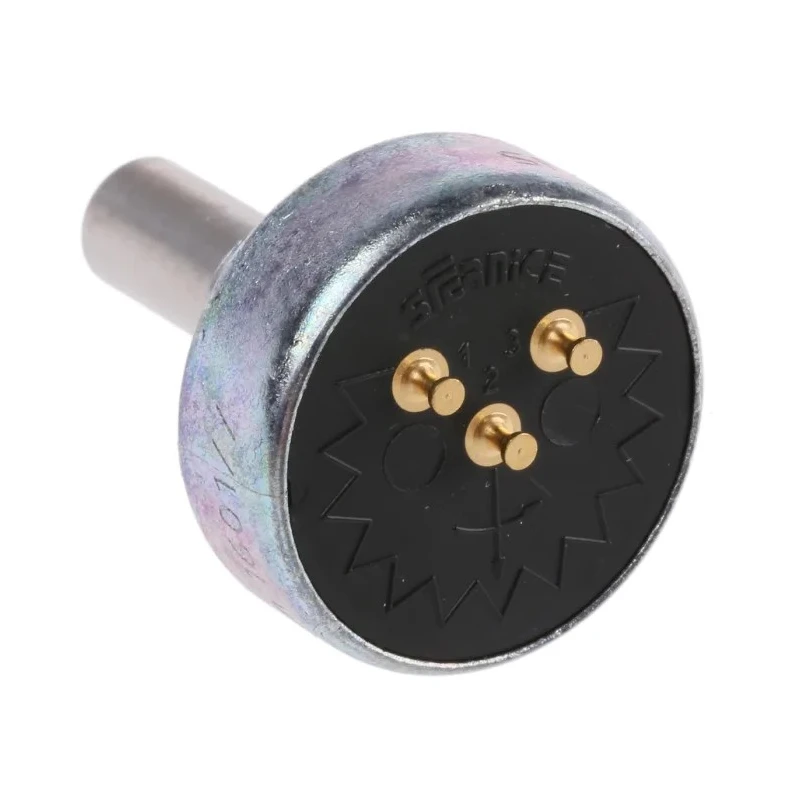

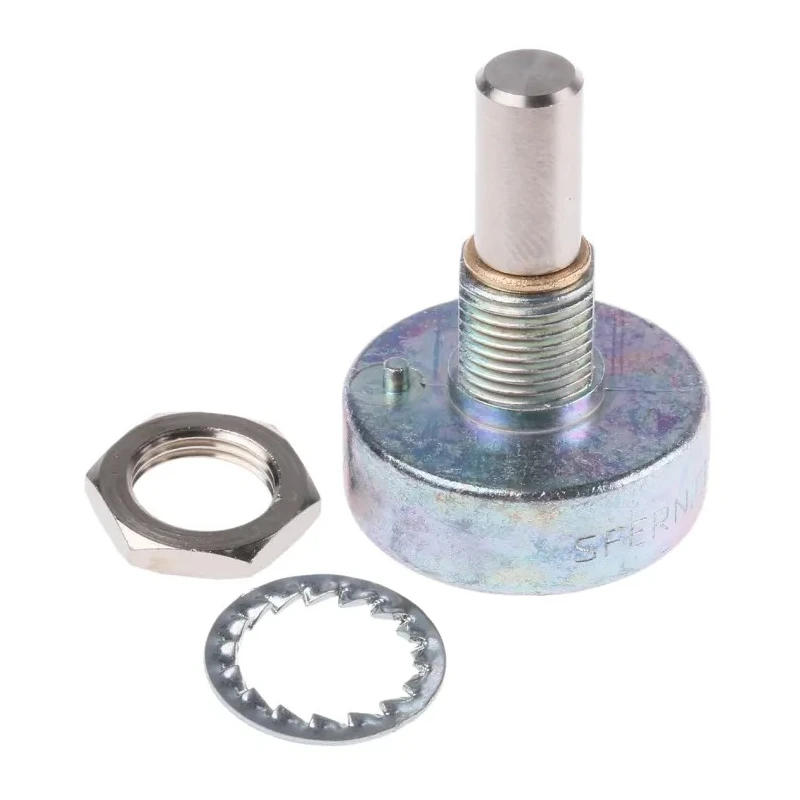

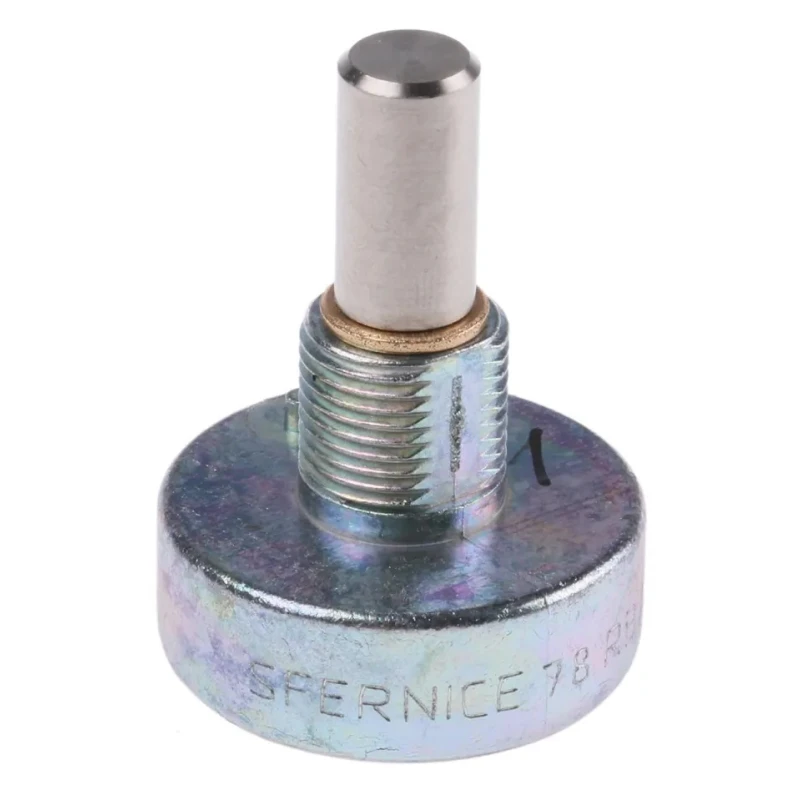

Vishay ECS Series Linear Measuring Encoder, Turrets Signal Output, 6.35 mm Shaft Diameter ECS78RBA103

Vishay ECS78RBA103 Linear Measuring Encoder is a high-precision sensor designed to accurately detect single-turn rotational movement without mechanical stops. With a robust plastic track technology and voltage division mode operation, the encoder ensures reliable measurement performance even across a wide temperature range from -55°C to 125°C. The unit features a 6.35 mm shaft diameter and is mounted via bush mounting, facilitating easy panel installation. Its compact dimensions of 22.2 mm width and 30.2 mm height make it suitable for integration into various motion control sensor systems.

This encoder outputs signals through turret terminals, providing a secure and straightforward electrical connection. The maximum operational revolution is 150 rpm, making it ideal for applications in automation, industrial machinery, and precision measurement equipment. It is especially applicable in scenarios demanding high measurement accuracy and temperature stability.

Constructed by Vishay, a reputed brand in sensor technology, this ECS series linear measuring encoder is suitable for use in electronics and electrical industries focusing on automation and control, robotics, and manufacturing processes where precise linear position feedback is critical.

Single-turn rotational sensor with no mechanical stop offers continuous sensing capability. Plastic track technology for enhanced mechanical durability and signal stability. Voltage division operation ensures measuring accuracy is not impacted by temperature fluctuations.

Turret style terminal connections facilitate reliable wiring and installation. Wide operational temperature range from -55°C to 125°C for versatile industrial use. Compact form factor with 22.2 mm width and 30.2 mm height.

Maximum rotational speed rating of 150 rpm suits dynamic applications. Perfect for precision motion control, automation, and sensor integration tasks.

This product is new and manufactured in India. Enhance your industrial and automation projects with the Vishay ECS78RBA103 encoder, available at EnvMart's comprehensive catalog of sensors and measuring instruments.
