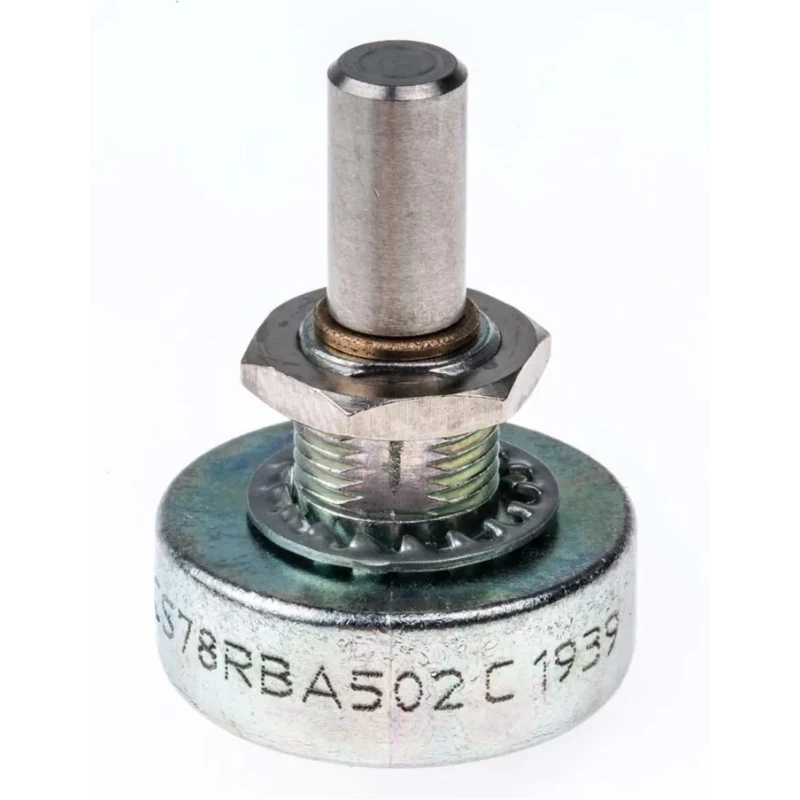

Vishay ECS Series Linear Measuring Encoder Turrets Signal 6.35mm Shaft ECS78RBA502
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | ECS78RBA502 |
| Mount Type | Bush |
| Series | ECS |
| Overall Width | 22.2mm |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Shaft Diameter | 6.35mm |
| Overall height | 30.2mm |
| Terminal type | Turret |
| Overall Depth | 22.2mm |
| Encoder Technology | Linear Measuring |
| Maximum Revolutions | 150rpm |
| Output Signal Type | Turrets |
| Vishay EncoderBrand | Vishay |
Key Features
- This linear measuring encoder operates up to a maximum of 150 rpm.
- It features turret output signal type with solder terminal connections for easy panel mounting.
- The robust design supports an operating temperature range from -55°C to 125°C.
- Compact dimensions include 30.2 mm height, 22.2 mm width, and 22.2 mm depth.
- It utilizes plastic track technology to achieve accurate voltage division unaffected by temperature changes.
- The shaft diameter is standardized at 6.35 mm for compatibility with common setups.
- No mechanical stop with single-turn sensing enhances versatility in industrial applications.
Product Description
Vishay ECS78RBA502 is a high-precision linear measuring encoder designed for accurate rotational movement detection in industrial environments.
Utilizing linear measuring technology and plastic track construction, this encoder delivers stable performance unaffected by temperature variations thanks to voltage division operation mode.
Designed as a bush-mounting device, it connects via turret solder terminals enabling secure panel installation. Its mechanical design allows single-turn rotational detection without mechanical stops, providing continuous measurement capability up to 150 rpm maximum speed.
Key physical dimensions include a 6.35 mm shaft diameter, 22.2 mm width, 22.2 mm depth, and 30.2 mm overall height, making it suitable for tight integration in automation and motion control systems.
The device is engineered for industrial use cases such as factory automation, motion control, robotics, and position sensing applications requiring reliable, repeatable positional feedback within harsh operating temperature ranges between -55°C and 125°C.
This linear measuring encoder operates up to a maximum of 150 rpm. It features turret output signal type with solder terminal connections for easy panel mounting. The robust design supports an operating temperature range from -55°C to 125°C.
Compact dimensions include 30.2 mm height, 22.2 mm width, and 22.2 mm depth. It utilizes plastic track technology to achieve accurate voltage division unaffected by temperature changes. The shaft diameter is standardized at 6.35 mm for compatibility with common setups.
No mechanical stop with single-turn sensing enhances versatility in industrial applications. This product is ideal for industrial, manufacturing, laboratory, and control automation environments requiring high-accuracy linear position measurement.
Explore the extensive range of Vishay Encoders and motion control sensors on EnvMart to find the right solution for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder operates up to a maximum speed of 150 rpm.
It supports an operating temperature range from -55°C to 125°C.
The encoder has overall dimensions of 30.2 mm in height, 22.2 mm in width, and 22.2 mm in depth.
It features a turret output signal type.
This model is designed for bush mounting and connects via turret solder terminals.
The shaft diameter is standardized at 6.35 mm for compatibility with common setups.
It utilizes linear measuring technology with plastic track construction to achieve accurate voltage division.
No, this encoder does not have a mechanical stop, allowing for single-turn sensing and continuous measurement capability.
It is suitable for factory automation, motion control, robotics, and position sensing applications.
The encoder is manufactured by Vishay.
The country of origin for this encoder is India.
It uses turret terminal connections for easy panel mounting.
