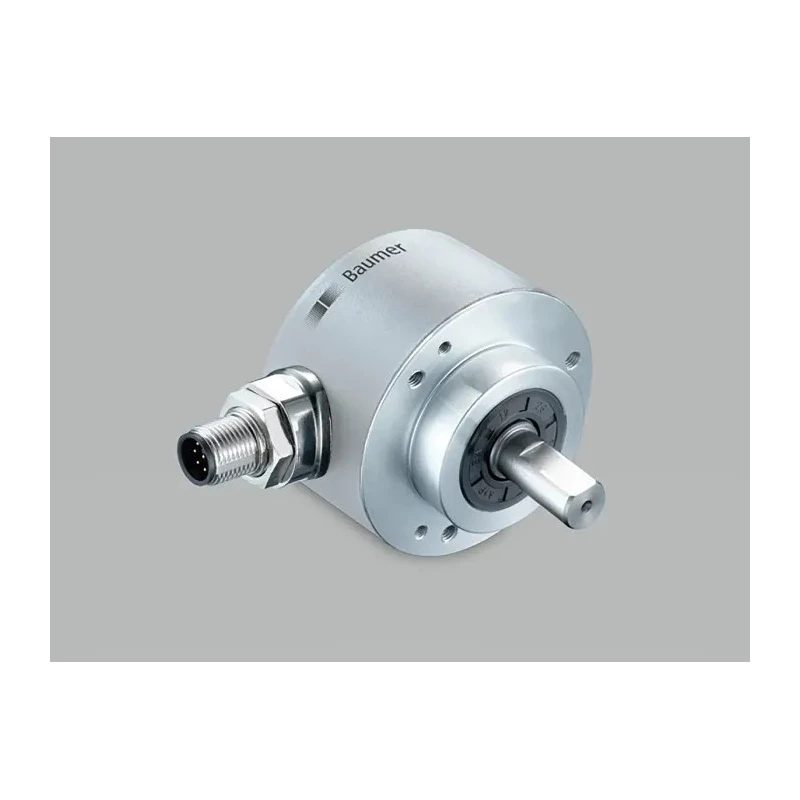

Baumer Magnetic Absolute Encoder EAM580 Series 30V, 4096ppr, Push Pull Signal, Solid Shaft 10mm EAM580

Baumer EAM580 is a high-performance magnetic absolute encoder designed for precise angular position measurement. The encoder operates at a maximum supply voltage of 30V and delivers 4096 pulses per revolution (ppr), enabling fine resolution ideal for industrial automation and motion control applications.

This model features a solid shaft with a 10 mm diameter and includes a clamping flange mount to ensure secure and stable installation in demanding environments. Equipped with a Push Pull output signal type and a CANopen interface, it facilitates reliable communication within industrial network systems.

The encoder is rated with an IP65 ingress protection, safeguarding against dust and water intrusion, essential for harsh industrial conditions. It is engineered to operate dependably over a broad temperature range from -40°C to 85°C, making it suitable for varied environmental settings.

The compact dimensions with an overall width of 58 mm and depth of 33 mm allow integration in tight spaces. It supports a switching frequency up to 350 kHz, enabling rapid signal processing for dynamic control tasks. The robust magnetic sensing technology ensures high resistance to shock and vibrations, providing stable and accurate measurements.

Applications for the Baumer EAM580 magnetic absolute encoder include industrial automation, robotics, packaging machinery, conveyor systems, and other motion control scenarios requiring exact position feedback.

Features magnetic encoder technology for reliable absolute position measurement. Generates 4096 pulses per revolution for fine resolution. Push Pull output signal ensures robust signal integrity. Includes a solid shaft design with a 10 mm diameter for secure mounting.

Supports CANopen interface with an industrial M12 flange connector. Rated IP65 for protection against dust and water ingress. Operates reliably within temperature range from -40°C to 85°C. Compact dimensions: 58 mm width and 33 mm depth.

Supports switching frequency up to 350 kHz for fast operations. Mount type is clamp, offering secure installation. Explore the range of precision sensors and Encoders at EnvMart for industrial and manufacturing solutions.
