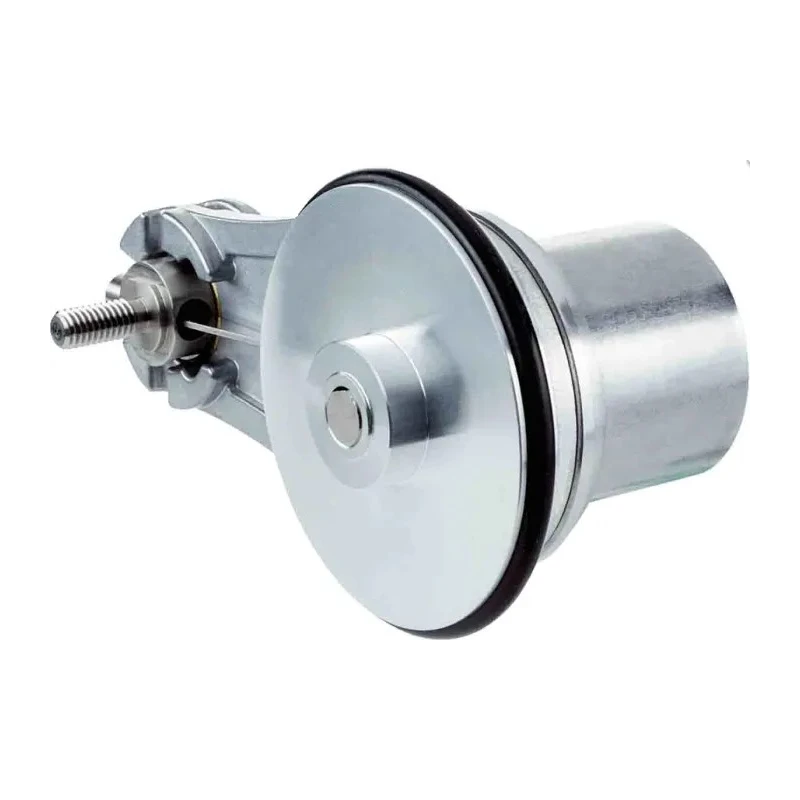

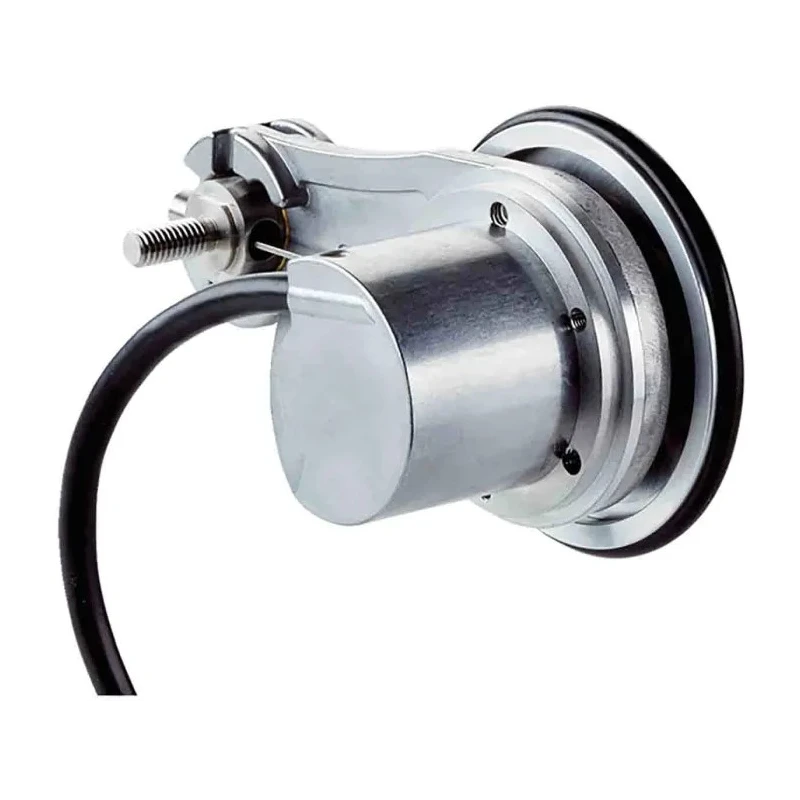

SICK DBV50 Core Series Linear Measuring Encoder 5.5V DC, 2000 PPR, TTL Signal, Measuring Wheel Type DBV50
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Model | DBV50 |
| IP Rating | IP65 |
| Mount Type | Flange |
| Series | DBV50 Core |
| Overall Width | 110mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Overall height | 60mm |
| Switching Frequency | 300kHz |
| Shaft Type | Measuring Wheel |
| Interface Type | Incremental |
| Pulses per Revolution | 2000ppr |
| Standards/Approvals | EN 61000-6-2 and EN 61000-6-3 (class A) |
| Maximum Supply Voltage | 5.5V dc |
| Overall Depth | 54.7mm |
| Encoder Technology | Linear Measuring |
| Maximum Revolutions | 3000rpm |
| Output Signal Type | TTL |
Key Features
- The encoder uses a robust incremental linear measuring technology.
- It provides TTL output signals compatible with industrial control systems.
- Features a measuring wheel shaft type ensuring accurate motion detection.
- Sealed to IP65 for protection in harsh industrial environments.
- Supports a maximum speed of 3000 rpm for high-speed applications.
- Operating temperature ranges from -20°C to 85°C suitable for varied conditions.
- Compact dimensions enable easy flange mounting and integration.
- Includes built-in standards compliance EN 61000-6-2 and EN 61000-6-3 (class A).
Product Description
SICK DBV50 Core Series Linear Measuring Encoder DBV50 is a precision incremental encoder with a 5.5V DC supply voltage designed for reliable linear measurement tasks in industrial automation. With a resolution of 2000 pulses per revolution and TTL output signals, it enables accurate position feedback for motion control applications.
The encoder features a measuring wheel shaft type combined with an NBR70 wheel and spring assembly facilitating easy mounting and adjustment. It is sealed to IP65, making it resistant to dust and water ingress, suitable for demanding environments such as manufacturing, automation, and process control.
The device operates effectively within a temperature range from -20°C to 85°C and supports speeds up to 3000 rpm. Its flange mount type and compact dimensions (Overall Width 110mm, Height 60mm, Depth 54.7mm) allow for seamless integration into existing systems.
Compliant with EN 61000-6-2 and EN 61000-6-3 (class A) standards, the encoder maintains electromagnetic compatibility. The switching frequency of 300 kHz enhances signal accuracy, making it ideal for high-performance industrial use cases.
An optional L-Bracket accessory (RS Stock No. 201-3666) can further simplify installation. The included 1.5m cable offers flexibility in routing for various applications. The encoder uses robust incremental linear measuring technology.
Provides TTL output signals suited for industrial interfaces. Measures via a resilient NBR70 measuring wheel and spring assembly. Offers IP65 protection for harsh environments. Supports operating temperatures from -20°C to 85°C.
Compact flange mount for easy installation. Switching frequency rated to 300 kHz. Complies with EN 61000-6-2 and EN 61000-6-3 (class A) EMC standards. Includes a 1.5 m cable with multi-directional routing.
This encoder is well suited for industrial automation, manufacturing processes, machine tool control, and other linear measurement applications requiring high precision and reliability. Explore the full range of SICK motion control sensors at EnvMart for compatible solutions.
Explore more products in our Encoders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SICK DBV50 encoder has a resolution of 2000 pulses per revolution (PPR).
It provides TTL output signals, which are compatible with industrial control systems.
This model supports a maximum speed of 3000 revolutions per minute (rpm).
The encoder operates effectively within a temperature range from -20°C to 85°C.
This encoder has an IP65 rating, making it resistant to dust and water ingress.
The overall dimensions of the encoder are 110 mm in width, 60 mm in height, and 54.7 mm in depth.
It features a flange mount type, allowing for easy installation and integration into existing systems.
The encoder complies with EN 61000-6-2 and EN 61000-6-3 (class A) standards for electromagnetic compatibility.
The switching frequency of the DBV50 encoder is rated at 300 kHz, enhancing signal accuracy.
It uses robust incremental linear measuring technology for accurate position feedback.
This model features a measuring wheel shaft type combined with an NBR70 wheel and spring assembly.
Yes, it includes a 1.5 m cable for flexibility in routing and an optional L-Bracket for simplified installation.
