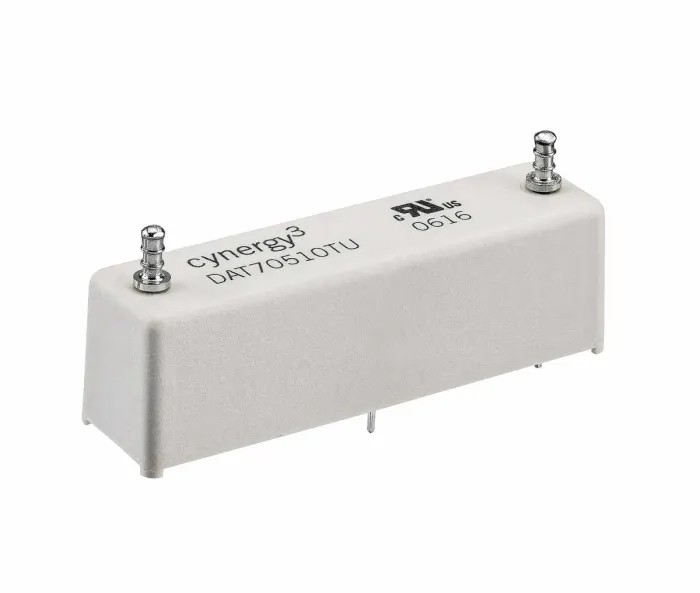

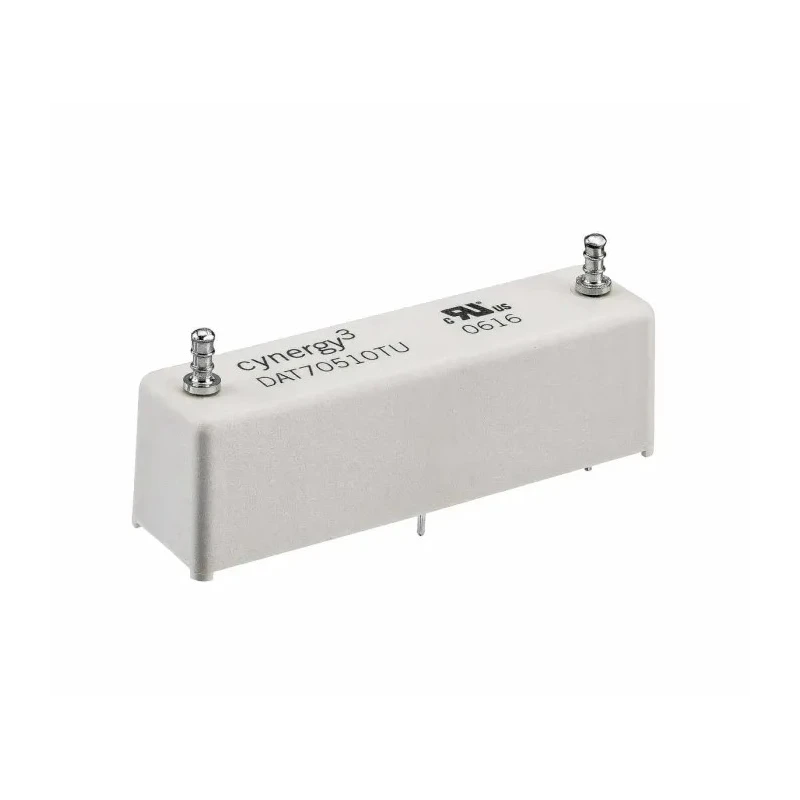

Cynergy3 PCB Reed Relay, 24V DC Coil, SPNC Contact Configuration, 7000V DC Max, 2A Max, 925Ω Coil Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 2ms |
| Mount Type | PCB |
| Series | DBT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPNC |
| Minimum Operating Temperature | -20°C |
| Terminal type | Wire Wrap |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UR |
| Coil Resistance | 925Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- Designed for PCB mounting with wire wrap terminal type.
- Coil power rating of 50W with coil resistance of 925Ω.
- Operating temperature range from -20°C to 70°C ensuring reliable performance.
- Low contact resistance of 250mΩ supports efficient switching.
- High isolation voltage rated up to 17kV between coil and contact.
- Fast operating time of 2ms for rapid switching applications.
- Non-latching relay suitable for high reliability electronic circuits.
- Compact dimensions with length 60mm and height 18.5mm for space-saving designs.
Product Description
Cynergy3 DBT72405TU is a high-voltage PCB Reed Relay featuring a 24V DC coil with SPNC contact configuration. It supports a maximum switching voltage of 7000V DC and a maximum current of 2A, making it suitable for demanding electronic applications requiring high voltage isolation and reliability.
This relay is designed for PCB mounting and uses wire wrap terminals, providing easy integration into circuit boards. With a coil power of 50W and coil resistance of 925Ω, it maintains efficient power usage. The device operates reliably in temperatures ranging from -20°C to 70°C, covering typical industrial and laboratory environments.
Its very low contact resistance at 250mΩ ensures minimal voltage drop across contacts, enhancing circuit efficiency. The excellent isolation between coil and contact rated at 17kV provides outstanding protection against voltage spikes and electrical noise. The relay has an operating time of just 2 milliseconds, allowing fast signal switching.
Non-latching construction suits applications requiring momentary switching without retention. Dimensions of 60mm length and 18.5mm height support compact circuit design. The relay complies with UR standards, ensuring quality and safety. Its high vacuum tungsten or rhodium contacts support very high voltage applications such as cardiac defibrillators, test equipment, and high voltage power supplies.
Ideal for industrial, laboratory, and medical electronics, the Cynergy3 DBT72405TU relay delivers dependable performance in high voltage DC and low current environments with long service life and excellent switch characteristics.
Designed for PCB mounting with wire wrap terminals. Coil rated at 24V DC and 50W power. Maximum switching voltage of 7000V DC and current of 2A. Isolation voltage up to 17kV between coil and contact. Operating temperature range from -20°C to 70°C.
Fast operating time of 2 milliseconds. Non-latching mechanism for reliable switching. Low contact resistance minimizing power loss. Explore more Reed Relay models and related relay products including control relays and power relays at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage for this relay is 7000V DC.
The coil resistance of this model is 925Ω.
The operating temperature range for this relay is from -20°C to 70°C.
This relay features an SPNC (Single Pole Normally Closed) contact configuration.
The operating time of this relay is 2 milliseconds, allowing for rapid switching.
This model is designed for PCB mounting and uses wire wrap terminals.
The contact resistance of this relay is 250mΩ, which supports efficient switching.
The coil power rating for this relay is 50W.
This relay complies with UR standards, ensuring quality and safety.
The dimensions of this relay are 60mm in length and 18.5mm in height.
This relay is suitable for high voltage applications such as cardiac defibrillators, test equipment, and high voltage power supplies.
The isolation voltage between the coil and contact is rated at up to 17kV, providing excellent protection against voltage spikes.
