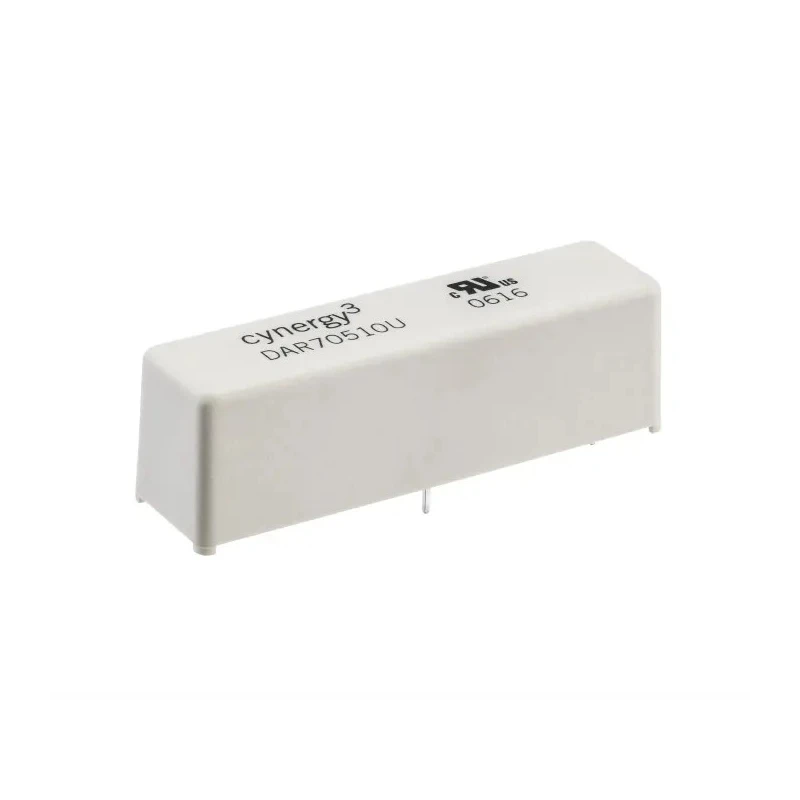

Cynergy3 PCB Reed Relay 12V DC Coil 50W Power SPST 3A 7000V DC Max
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL Approved |
| Coil Resistance | 150Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- This relay has a compact size of 60mm length, 18.5mm height, and 15.8mm depth for PCB mounting.
- It features a normally open SPST contact configuration with a 3 amp maximum switching current.
- The coil operates at 12 volts DC with 50 watts coil power and 150 ohms coil resistance.
- It offers a fast operating time of 3 milliseconds for quick response in circuits.
- The relay supports a wide operating temperature range from -20°C to +70°C.
- It withstands isolation coil to contact voltages up to 17 kV ensuring high voltage insulation.
- The relay is UL approved for quality and safety standards compliance.
- Contact resistance is low at 250 milliohms for reliable conductivity.
Product Description
Cynergy3 DAT71210U/RS PCB Reed Relay is a high-quality component designed for precision and reliability on printed circuit boards. It features a 12V DC coil with a coil power rating of 50W, a contact configuration of SPST (single pole single throw), and a maximum switching current of 3A. The relay is built with tungsten contacts that provide excellent resistance to heat and mechanical impact, making it suitable for demanding industrial, medical, and instrumentation applications requiring high voltage switching.
This relay offers compact dimensions of 60mm length, 18.5mm height, and 15.8mm depth, allowing its installation in space-constrained PCB layouts. Its operating temperature range of -20°C to +70°C supports deployment in diverse environmental conditions.
The isolation voltage between coil and contact is rated at 17kV, ensuring excellent electrical insulation and safety in high-voltage circuits. The relay has a fast response time of 3 milliseconds, providing rapid switching performance critical for automation and control applications.
With an electrical service life rated for one billion dry switching operations, this relay provides long-lasting, dependable performance. Its UL approval certifies adherence to strict safety and quality standards.
Installation is straightforward with PCB terminal type pins designed for direct mounting onto circuit boards. This product is manufactured in the United Kingdom and supplied in new condition.
Compact size for PCB mounting in tight spaces. SPST contact configuration with a 3A maximum current. 50W coil power at 12V DC with 150 Ω coil resistance. Fast 3ms operating time ideal for automation use. Tungsten contacts for durability in heat and impact conditions.
Wide operating temperature range from -20°C to 70°C. High isolation voltage of 17kV between coil and contacts. UL approved for reliable and safe operation. Low contact resistance of 250mΩ ensuring efficient conductivity.
Made in the United Kingdom and supplied new.
Ideal for industrial, laboratory, medical instrumentation, and high-voltage control applications. Browse similar Cynergy3 Reed Relays and PCB components in the Electronics & Electricals section at EnvMart for complete solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 3A.
This model operates at a coil voltage of 12V DC with a power rating of 50W.
The relay has dimensions of 60mm in length, 18.5mm in height, and 15.8mm in depth.
It features a normally open SPST (single pole single throw) contact configuration.
The operating temperature range is from -20°C to +70°C.
The isolation voltage between the coil and contacts is rated at 17kV.
The relay has a fast operating time of 3 milliseconds.
The contact resistance is low at 250 milliohms.
This model uses PCB terminal type pins for direct mounting onto circuit boards.
Yes, this relay is UL approved, ensuring compliance with safety and quality standards.
It is suitable for industrial, laboratory, medical instrumentation, and high-voltage control applications.
This relay is manufactured in the United Kingdom.
