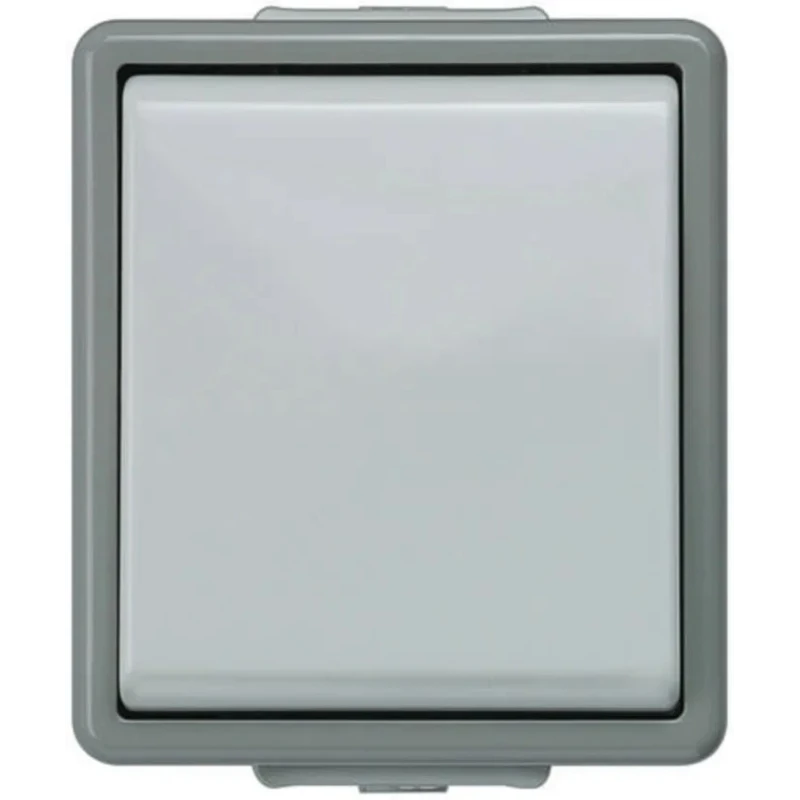

Siemens Grey 1 Way Push Button Light Switch 1 Gang Surface Mount 230V 10A DELTA 5TD4707

Name: Siemens Grey 1 Way Push Button Light Switch 1 Gang Surface Mount 230V 10A DELTA 5TD4707
Brand: Siemens
SKU: 427398
Price: 1746 INR
Availability: InStock



Category Light Switch Brand Siemens Condition New

Specifications

Country of Origin	Spain
Voltage	230V
Range	DELTA
Brand	Siemens
Material	Plastic
Colour	Grey
Height	75mm
Model	5TD4707
Depth	82mm
IP Rating	IP44
Finish	Gloss
Number Of Ways	1
Width	52mm
Mount Type	Surface
Contact Material	cadmium- and nickel-free
Current Rating	10A
Switch Type	Push Button
Series	DELTA
Terminal type	Screw
Number of Poles	1
Number of Gangs	1
Fixing Standard	VDE
Screwed/Screwless	Screwed
Siemens Grey, 1 Way Push Button, 1 Gang, DELTABrand	Siemens

Key Features

The switch features a single gang and one way push button mechanism.
It has an IP44 splash-proof rating, suitable for protected indoor environments.
Constructed from impact-resistant plastic with a gloss finish for durability and aesthetics.
Includes a screw terminal type with cadmium- and nickel-free contact materials.
Designed with a surface mount type and conforms to VDE fixing standards.
The product includes optional interchangeable white windows for Light, Bell, Door Opener, and Neutral functions.
Equipped with a one-change button that can be used as either break or make.
Comes with 5TG7 332 neon indicator lamp and offers separate feedback loop versions.

Product Description

Siemens 5TD4707 is a grey, 1 gang, 1 way push button light switch designed for surface mounting in domestic and commercial electrical installations. It operates at 230V with a current rating of 10A, making it suitable for typical light switching applications.

Part of the DELTA series, this push button switch offers splash-proof protection with an IP44 rating, ensuring enhanced durability and safe operation in environments prone to moisture. The switch's housing is made from impact-resistant plastic with a gloss finish, combining aesthetics with toughness.

The switch uses screw terminals for secure wiring connections and employs cadmium- and nickel-free contact materials to ensure safety and corrosion resistance. It features a one-change button mechanism that allows the switch to function as a break or make contact.

This model includes enclosed window sets available for Light, Bell, Door Opener, and Neutral, enhancing usability in various signaling and control scenarios. Additionally, it integrates the 5TG7 332 neon indicator lamp for visual feedback and complies with DIN 49200 standards, assuring reliable performance.

The dimensions of this switch are 75mm in height, 52mm in width, and 82mm in depth, designed according to VDE fixing standards for easy surface mounting. The switch features a single gang and one way push button mechanism.

IP44 degree of protection offers splash-proof housing. Plastic housing is impact-resistant with a gloss finish. Contact materials are cadmium- and nickel-free, enhancing safety. Surface mount type with screw terminal connections.

Includes interchangeable enclosed windows for various control symbols. Equipped with 5TG7 332 neon indicator lamp for feedback. Conforms to DIN 49200 and VDE fixing standards. Dimensions: 75mm height, 52mm width, 82mm depth.

Manufactured in Spain, ensuring high manufacturing quality.

This Siemens DELTA push button switch is ideal for domestic installation light control, offering robust build quality, safety features, and compliance with industry standards. Suitable for use in residential, commercial, and industrial environments where reliable surface-mounted Light Switching is required. Browse EnvMart for more Siemens electrical switches and components to complete your installation needs.
