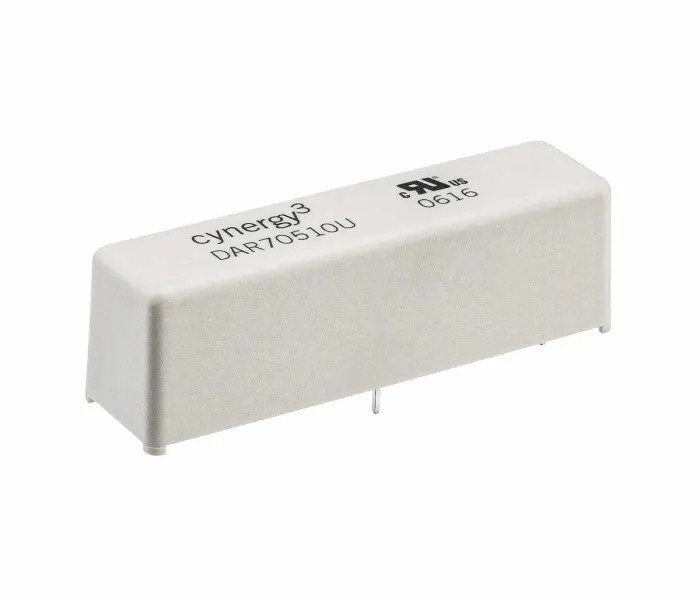

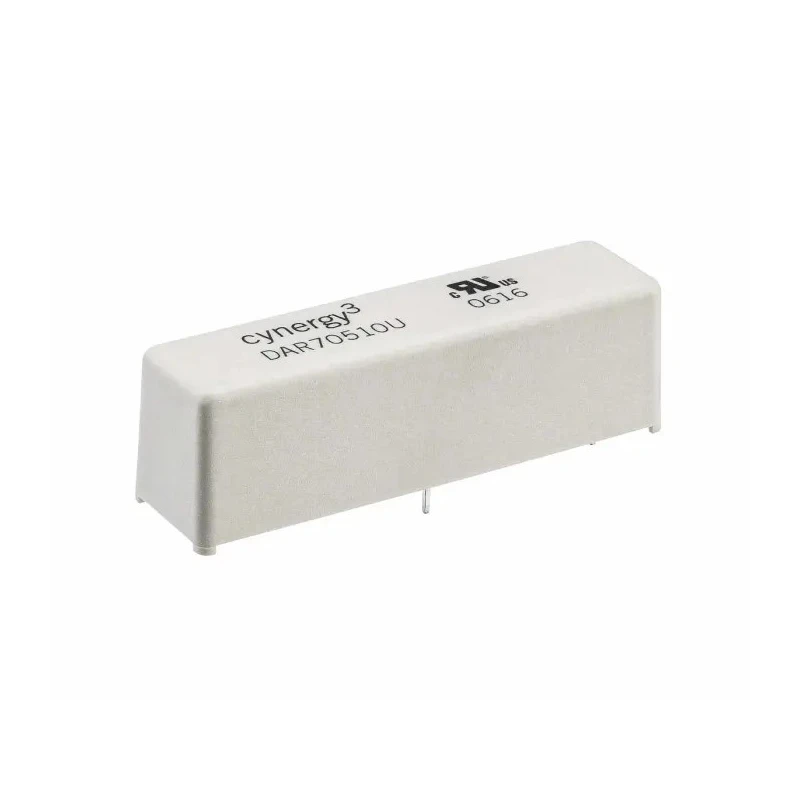

Cynergy3 PCB Reed Relay with 12V DC Coil, SPNC Contact Configuration, 7000V DC Max Isolation, 2A Max Current, 240 Ω Coil
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 2ms |
| Mount Type | PCB |
| Series | DBT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPNC |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UR |
| Coil Resistance | 240Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- The relay features a SPNC contact configuration suitable for PCB mounting.
- Coil operates at 12V DC with a resistance of 240 ohms.
- Maximum switching voltage is 7000V DC, with a max current of 2A.
- Operating temperature ranges from -20°C to 70°C ensuring durability in harsh environments.
- Fast operating time of 2 milliseconds supports rapid switching needs.
- High isolation voltage of 17kV coil to contact improves safety and performance.
- Contact resistance is low at 250 milliohms, allowing efficient conduction.
- Compact relay with dimensions of 60mm length and 18.5mm height.
Product Description
Cynergy3 DBT71205U is a high reliability PCB Reed Relay designed for industrial and electronic use, featuring a 12V DC coil and SPNC contact configuration. This relay supports maximum voltages up to 7000V DC and a current capacity of 2A, making it suitable for high voltage and precision switching applications.
Its construction includes high vacuum reed switches with Tungsten or Rhodium contacts, ensuring excellent AC characteristics and low contact resistance of 250 milliohms, which enhances switching efficiency and reliability.
The relay offers outstanding isolation between coil and contacts at 17kV, meeting stringent safety requirements in industrial, laboratory, and medical equipment sectors, including cardiac defibrillators and high voltage power supplies.
Mounting is designed for PCB installation, with compact dimensions of 60mm length and 18.5mm height. The relay operates effectively within a temperature range of -20°C to 70°C and exhibits a fast operating time of 2 milliseconds.
Terminal options include PCB terminals optimized for ease of assembly and reliable electrical connections. Coil power rating is 50 watts with a coil resistance of 240 ohms, ensuring compatible energy consumption for consistent operation.
The relay features a SPNC contact configuration suitable for PCB mounting. Coil operates at 12V DC with a resistance of 240 ohms. Maximum switching voltage is 7000V DC, with a max current of 2A. Operating temperature ranges from -20°C to 70°C ensuring durability in harsh environments.
Fast operating time of 2 milliseconds supports rapid switching needs. High isolation voltage of 17kV coil to contact improves safety and performance. Contact resistance is low at 250 milliohms, allowing efficient conduction.
Compact relay with dimensions of 60mm length and 18.5mm height. Ideal for applications including cardiac defibrillators, test equipment, and high voltage power supplies. This relay is suitable for use in industrial automation, medical devices, test instrumentation, HVAC systems, and power supply controls.
Explore the full range of high-quality Reed Relays from Cynergy3 in the EnvMart catalog designed to meet demanding applications.
