TE Connectivity PCB Reed Relay 5V DC Coil 50mW 500Ω Coil Resistance SPST Contact 200V DC Max 1A Max V23100V4005A010

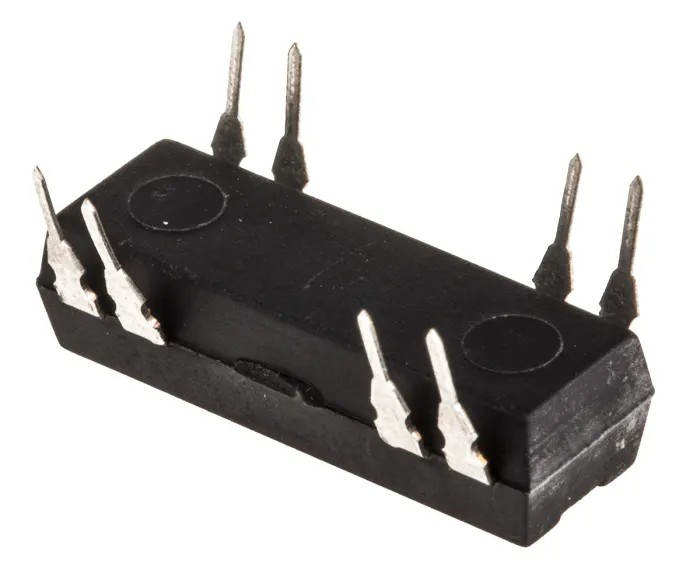

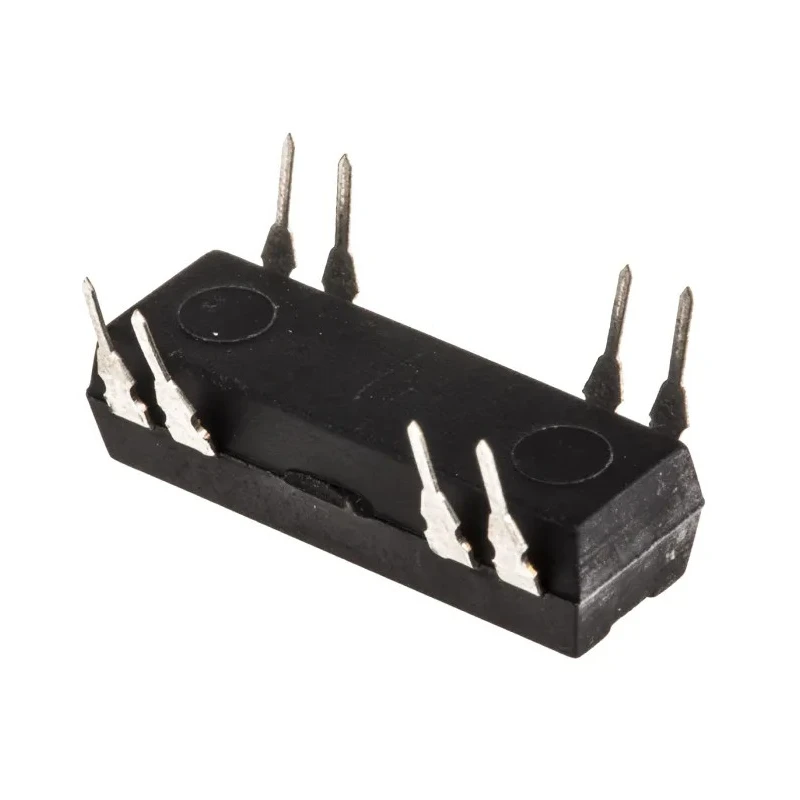

TE Connectivity V23100V4005A010 PCB Reed Relay is a high-quality, monostable reed relay designed for PCB mounting with a robust 5V DC coil and SPST contact configuration. This relay features a low coil power of 50mW and a coil resistance of 500Ω, making it energy efficient and suitable for applications requiring minimal power consumption.

With the ability to switch voltages up to 200V DC and currents up to 1A, this relay provides reliable control in compact electronic circuits. Its operating time of 0.75 milliseconds enables quick switching responses essential for automation and control systems.

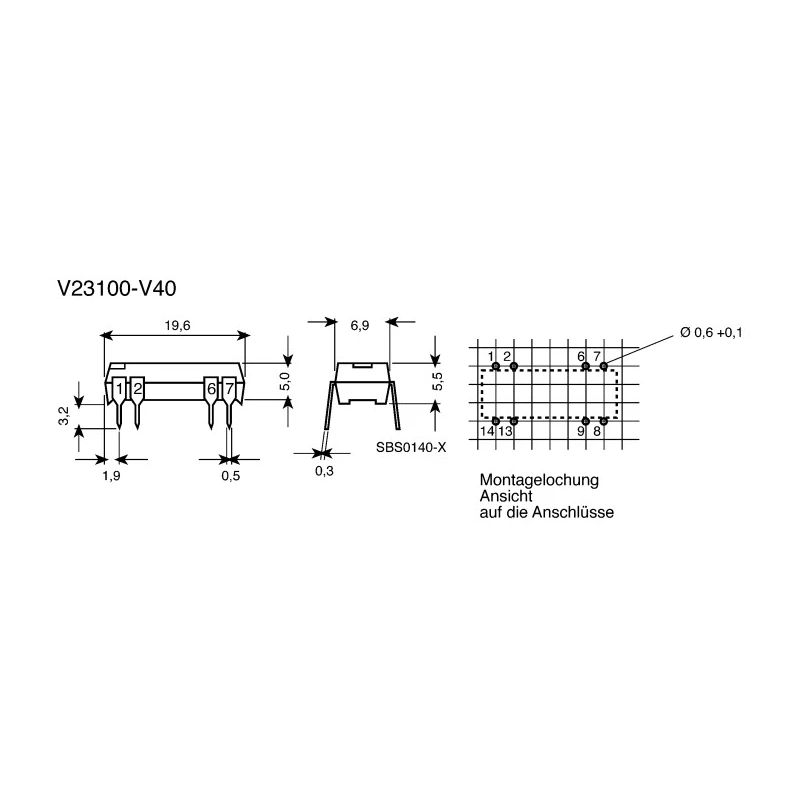

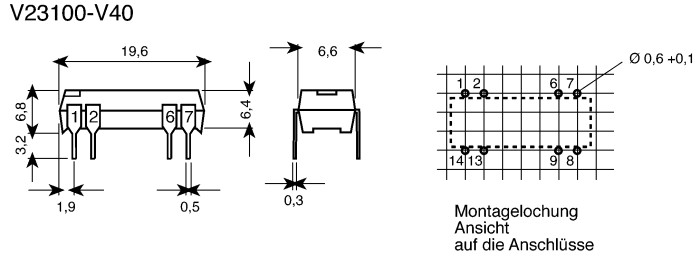

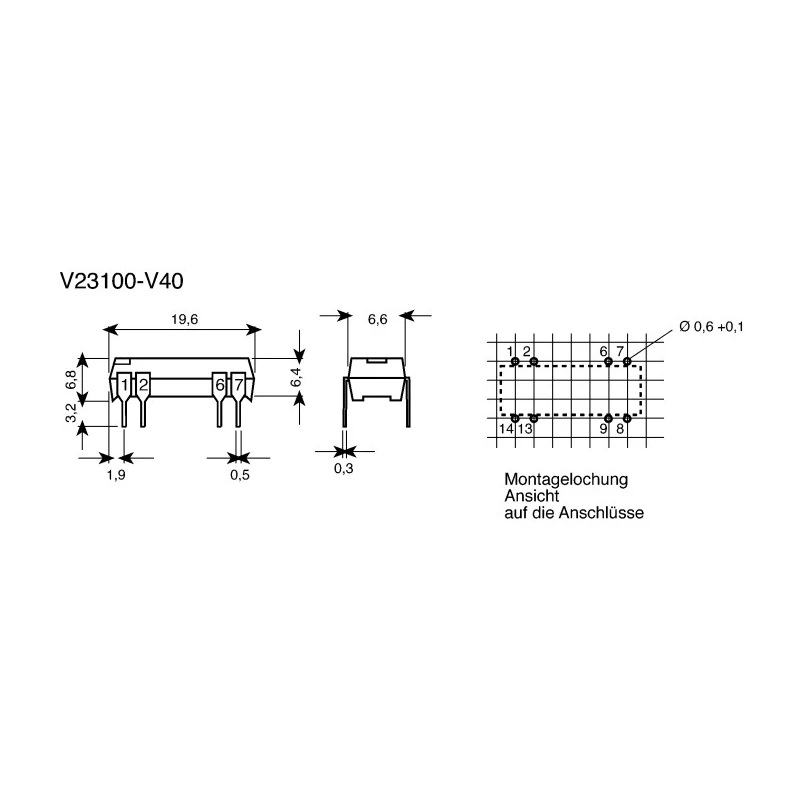

The relay’s physical dimensions are tailored for efficient PCB integration, measuring 19.3 mm in length and 5.7 mm in height, and it features solder terminals to ensure secure mounting. It performs consistently in extreme environments, operational between -40°C and 85°C, highlighting its suitability for industrial and automotive electronics where temperature resilience is critical.

The contact resistance is maintained at a low 150 milliohms, reducing signal degradation, while the coil-to-contact isolation voltage of 1.5 kV DC ensures protection against electrical interference. This device complies with UL standards, guaranteeing adherence to high safety and performance benchmarks.

Manufactured in Germany, this product reflects precise engineering and quality assurance consistent with TE Connectivity’s reputation. Features a coil resistance of 500Ω and maximum coil power of 50mW. Supports a maximum switching voltage of 200V DC and current of 1A.

Offers a fast operating time of 0.75 milliseconds for efficient switching. Constructed with a compact design measuring 19.3mm in length and 5.7mm in height. Operates reliably within a temperature range of -40°C to 85°C. Includes solder terminal type designed for PCB mounting applications.

Provides an isolation voltage of 1.5kV DC between coil and contacts for enhanced safety. Low contact resistance of 150 milliohms ensures minimal signal loss. Complies with UL standards and is manufactured in Germany.

This TE Connectivity PCB Reed Relay is ideal for use in electronics, automation, signal conditioning, and control systems requiring reliable and low-power switching. Explore more products in the Reed Relay category on EnvMart for comprehensive solutions.
