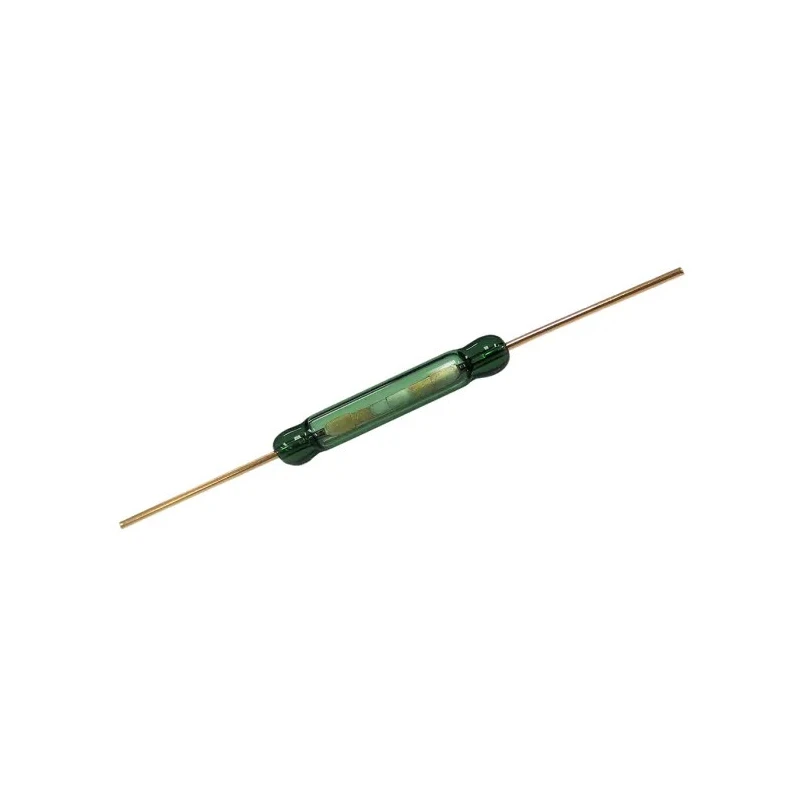

Assemtech SPNO PCB Reed Switch 3 A 400 V ac/dc GC3817 (60-70AT)

Assemtech GC3817 (60-70AT) SPNO PCB Reed Switch is a precision electronic component designed for reliable switching applications in electrical and automation systems. It is hermetically sealed within a gas-filled glass envelope, protecting the magnetic reeds and ensuring stable operation over time. The switch features single pole, single throw normally open contacts with rhodium plating for excellent contact resistance and longevity.

With a maximum switching current of 3 A and switching power of 60 W, this reed switch is suitable for controlling moderate load electrical circuits at 400 V ac/dc voltage. The wire terminals and PCB mount type design facilitate easy integration on electronic circuit boards.

The operating temperature range from -40°C to 125°C makes it suitable for demanding industrial and HVAC environments where temperature extremes occur. The magnetic actuation allows it to be triggered by an electromagnet or permanent magnet, with fast response times including a 0.1 ms maximum release time and 0.5 ms operating time including bounce.

The AT value range of 60 to 70 AT provides variable magnetic sensitivity to tailor the switch actuation based on the application's magnetic field strength. This product belongs to the GC series and complies with ISO standards, ensuring quality and performance consistency.

This reed switch is hermetically sealed within a gas-filled glass envelope ensuring high reliability. It features single pole, single throw normally open contacts plated with rhodium for durability. The switch supports a maximum switching power of 60 W and switching current of 3 A.

Operating temperature range is from -40°C to 125°C, suitable for various industrial environments. The terminal type is wire and designed for PCB mounting with dimensions 24.5 mm length and 3.8 mm width. The switch is actuated magnetically by an electromagnet or permanent magnet, providing fast response times.

Maximum release time is 0.1 ms, and operating time including bounce is 0.5 ms. The AT value range of 60 to 70 AT allows sensitivity tuning for different applications. Standard compliant with ISO and series GC ensuring quality and compatibility.

This reed switch is ideal for use in industrial automation, electrical switching circuits, instrumentation, HVAC systems, and other commercial applications requiring precise and reliable contact switching. It offers robust mechanical life and stable electrical performance suitable for demanding environments.
