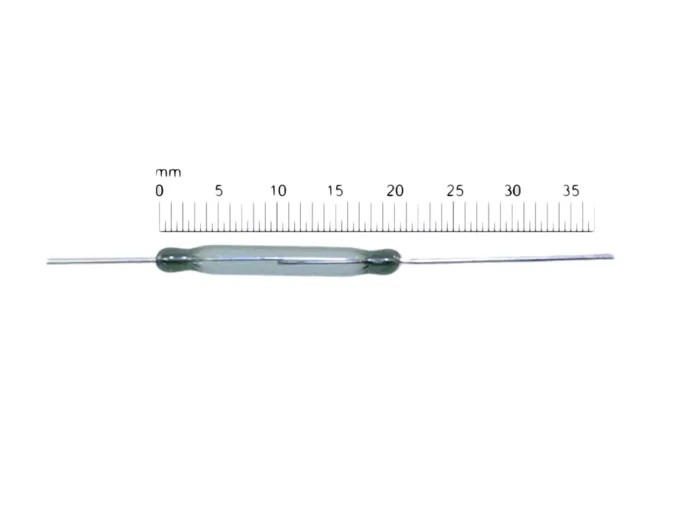

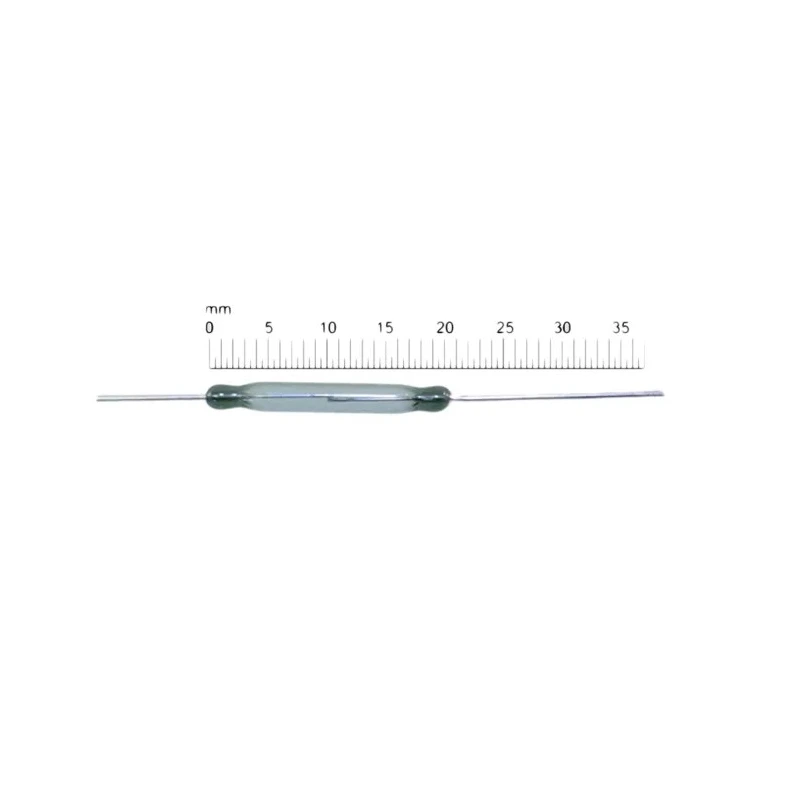

Assemtech SPST-NO PCB Reed Switch 1 A 200 V ac/dc RI-46B

Assemtech RI-46B SPST-NO PCB Reed Switch is a high-quality hermetically sealed reed switch designed for robust electrical switching applications. Rated for a maximum switching current of 1 ampere and maximum switching voltage up to 200 volts ac/dc, it delivers reliable performance in both AC and DC circuits.

The switch features a single pole single throw normally open contact configuration, housed within a gas-filled glass envelope that ensures tight sealing and long-term durability. The contact surfaces are plated with ruthenium on gold, providing excellent conductivity and resistance to oxidation.

With an operating temperature range from -55°C to 125°C, the RI-46B reed switch can function effectively in harsh industrial, electrical, automation, and electronics environments. Its compact dimensions of 2.7 mm width and 20.5 mm length make it suitable for printed circuit board mounting, simplifying integration into various equipment.

The Reed Switch supports fast switching with a maximum release time of 30 microseconds and operating time including bounce of 0.35 milliseconds, enabling precise control in automation systems.

Mechanical life extends to 10^8 operations, ensuring long service life under repeated cycling. Its low contact resistance of 90 milliohms reduces power loss and enhances efficiency.

Installation is straightforward using wire terminal types designed for PCB mounting. The device complies with ISO standards and originates from Belgium, meeting stringent quality requirements.

Typical industrial applications include electrical switching in control panels, automation systems, and electronic instrumentation. The hermetic sealing makes it ideal for use in environments requiring contamination protection and reliable performance.

Single pole single throw normally open contact configuration ensures precise operation. Hermetically sealed glass envelope offers excellent durability and protection. Contact material is ruthenium on gold for enhanced conductivity and corrosion resistance.

Operating temperature range from -55°C to 125°C suitable for diverse environments. Compact dimensions with 2.7 mm width and 20.5 mm length for PCB mounting. Fast maximum release time of 30 microseconds improves switching performance.

Mechanical life rated at 108 operations guarantees long service life. Low contact resistance of 90 milliohms minimizes power loss. Wire terminal type facilitates easy installation on PCB. Wide AT value range from 24 to 51 AT enables sensitivity selection.
