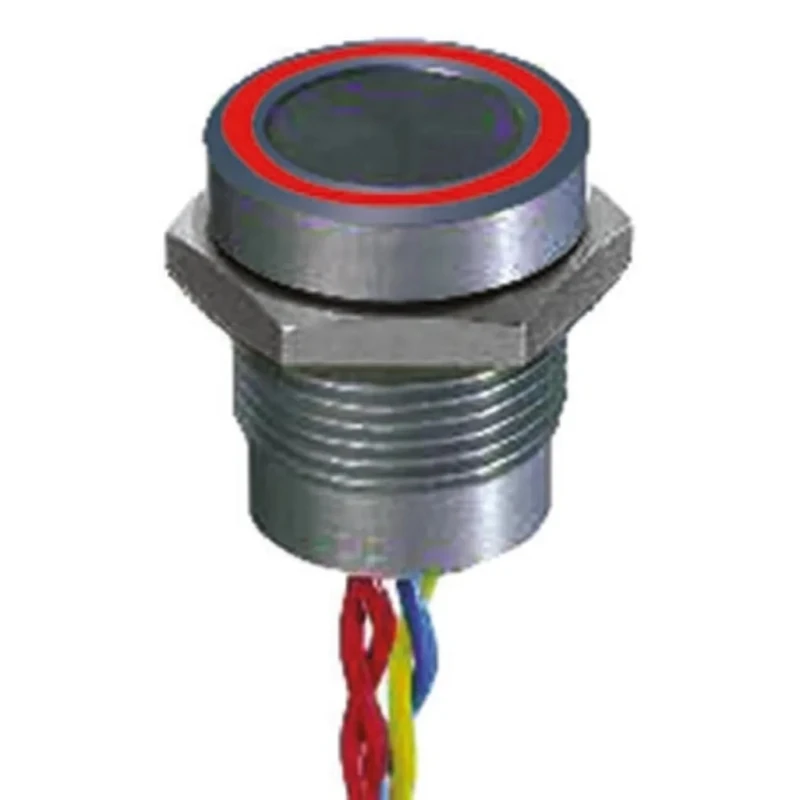

APEM Illuminated Momentary Piezo Switch, SPST, IP68, Flying Lead, 200mA, -40°C to 75°C

Free Delivery in India | Lowest Global Shipping Charges

APEM Illuminated Momentary Piezo Switch, SPST, IP68, Flying Lead, 200mA, -40°C to 75°C

Name: APEM Illuminated Momentary Piezo Switch, SPST, IP68, Flying Lead, 200mA, -40°C to 75°C
Brand: APEM
SKU: 351423
Price: 11552.65 INR
Availability: InStock



Category Piezo Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	IP68
IP Rating	IP68
Series	PBA
Maximum Operating Temperature	75°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Panel Cutout Size	19 mm
Terminal type	Flying Lead
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	691-9666Brand: APEMManufacturers Part No.: PBAR9AFB000A2A
LED Colour	Red, Green
Switch Operation	Momentary
Contact DC Voltage	24V dc
Switch Contact Current	200mA
Contact AC Voltage	24V ac
Sealed to IP68	APEM Piezo switches are sealed to IP68 standards, ensuring protection against dust and water immersion. This makes them highly resistant to environmental factors, making them suitable for use in demanding applications

Key Features

This piezo switch is sealed to IP68 standards, providing resistance to dust and water immersion.
The switch features a durable metal surface that is easy to clean and resist contaminants.
It has a solid-state output ensuring a mechanical life of up to 50 million cycles.
The SPST contact supports a current rating of 200mA at 24V AC/DC.
Operating temperature ranges from -40°C to 75°C, suitable for demanding industrial environments.
LED illumination is available in red and green colours for clear status indication.
Terminal connection is provided via flying leads for flexible wiring.
The switch requires a 19 mm panel cutout for mounting.

Product Description

APEM PBAR9AFB000A2A Illuminated Momentary Piezo Switch is a highly reliable electronic switch designed for industrial and demanding applications. Featuring a single pole single throw (SPST) contact configuration with a momentary operation, this switch is sealed to IP68 standards, guaranteeing protection against dust ingress and water immersion. This makes it ideal for harsh environments where equipment cleanliness and durability are critical.

The entirely sealed all-metal surface allows for effortless cleaning and prevents liquids or contaminants from affecting switch performance. With a solid-state output, this piezo switch offers an exceptional mechanical life of up to 50 million cycles, significantly reducing maintenance and replacement needs.

Rated for a maximum contact current of 200mA and suitable for 24V AC/DC operation, the switch supports standard panel mounting through a 19 mm cutout and connects via flying lead terminals, providing installation flexibility. Its operating temperature range from -40°C to 75°C enables use in extreme conditions often found in food processing, medical equipment, and mining industry equipment.

The piezo switch includes red and green LED illumination options, enhancing visual feedback and operational clarity for users in automated and manual control applications. This switch is IP68 sealed, ensuring dust and water resistance for industrial endurance.

The one-piece metal actuation surface simplifies cleaning and prevents ingress of contaminants. The solid-state output design provides a mechanical life expectancy of 50 million cycles for longevity. Momentary SPST switch operation suitable for various control applications.

Supports 200mA contact current at 24V AC/DC with flying lead wiring. Panel cutout size of 19 mm for standard mounting compatibility. Operating temperature range from -40°C to 75°C suits harsh environments. Red and green LED illumination available for enhanced visibility.

Applications include food processing, medical devices, and mining equipment controls. Explore more industrial electrical switches and Piezo Switch solutions in EnvMart's electronics and electrical category for your specific application needs.
