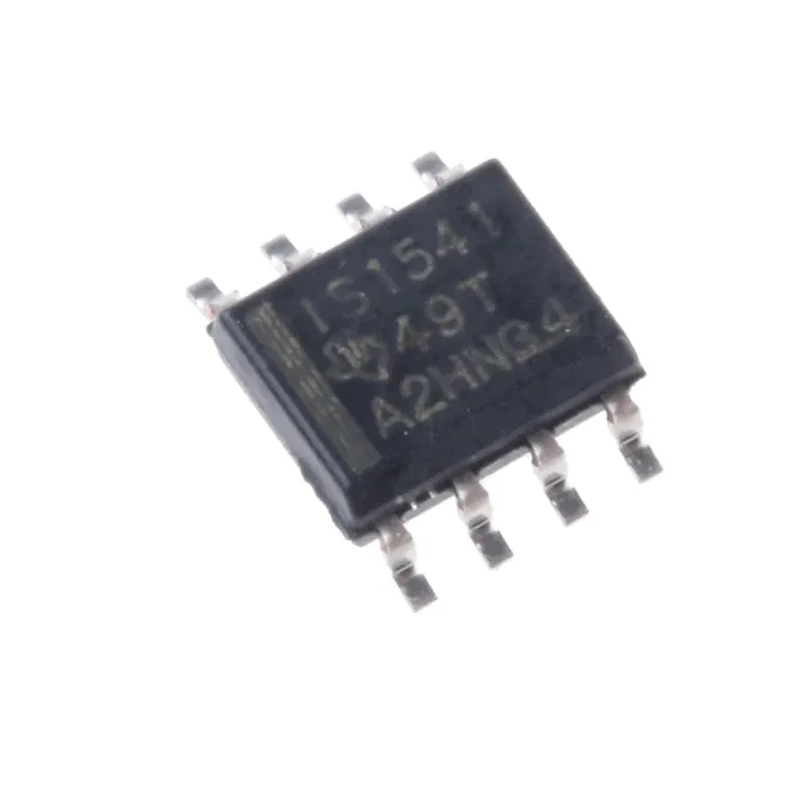

Texas Instruments 2-Channel I2C Digital Isolator 1 Mbps, 2500 Vrms Isolation, 5.5V Supply, 8-Pin SOIC ISO1541D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Length | 367mm |
| Model | ISO1541D |
| Depth | 35mm |
| Width | 367mm |
| Mount Type | Surface |
| Series | ISO |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 303mA |
| Number Of Channels | 2 |
| Power Dissipation | 85mW |
| Supply Voltage | 5.5V |
| Standards/Approvals | UL, CSA |
| Number of Pins | 8 |
| Maximum Data Rate | 1Mbps |
| Propagation Delay Time | 65ns |
| Package Style | SOIC |
Key Features
- Supports 2 communication channels for data isolation.
- Maximum data rate of 1 Mbps for fast digital signal transfer.
- Isolation voltage of 2500 Vrms ensures robust noise immunity.
- Compact 8-Pin SOIC surface-mount package suitable for PCB integration.
- Power dissipation rating of 85 mW for energy-efficient operation.
- Propagation delay time of 65 ns for low latency data isolation.
- Operates within temperature range of -40°C to 125°C for wide environmental conditions.
- Meets UL and CSA standards for electrical safety compliance.
Product Description
Texas Instruments ISO1541D 2-Channel I2C Digital Isolator operates at a maximum data rate of 1 Mbps, providing efficient isolation between digital circuits while supporting I2C communication protocols. Designed with a maximum isolation voltage of 2500 Vrms, it ensures signal integrity and noise immunity in harsh electrical environments. The device is supplied at 5.5V with a low power dissipation of 85 mW, making it suitable for energy-conscious applications.
The 8-Pin SOIC compact surface-mount package facilitates easy PCB assembly and space-saving integration. With a propagation delay time of just 65 ns, the isolator delivers low latency signal release ideal for time-sensitive industrial and electronic applications. Operating temperatures span from -40°C to 125°C, ensuring reliable performance across diverse environmental conditions.
The ISO1541D complies with UL and CSA certifications, attesting to its safety and reliability in electronic systems. Its dual-channel structure enables simultaneous isolation of two I2C data lines, enhancing versatility in mixed-signal circuit designs. Commonly used in digital isolator IC applications, this device supports communications in various industrial, automotive (non-automotive standard), instrumentation, and consumer electronics fields.
Two-channel design supports isolated digital communication. High isolation voltage of 2500 Vrms provides electrical noise rejection. 85 mW power dissipation minimizes thermal load. Wide temperature rating accommodates industrial applications.
UL and CSA approvals assure compliance with safety standards. Compact 8-pin SOIC package optimizes PCB space. Surface mount technology simplifies manufacturing processes. Low propagation delay ensures timely signal transmission.
Compatible with I2C digital communication protocols. Enhanced signal integrity for industrial and lab electronics systems.
This product is ideal for use in industrial machines, laboratory instruments, consumer electronics, and signal conditioning equipment requiring galvanic isolation in digital data lines. Explore more Digital Isolator IC products and related components on EnvMart to find solutions tailored to your electronic design needs.
