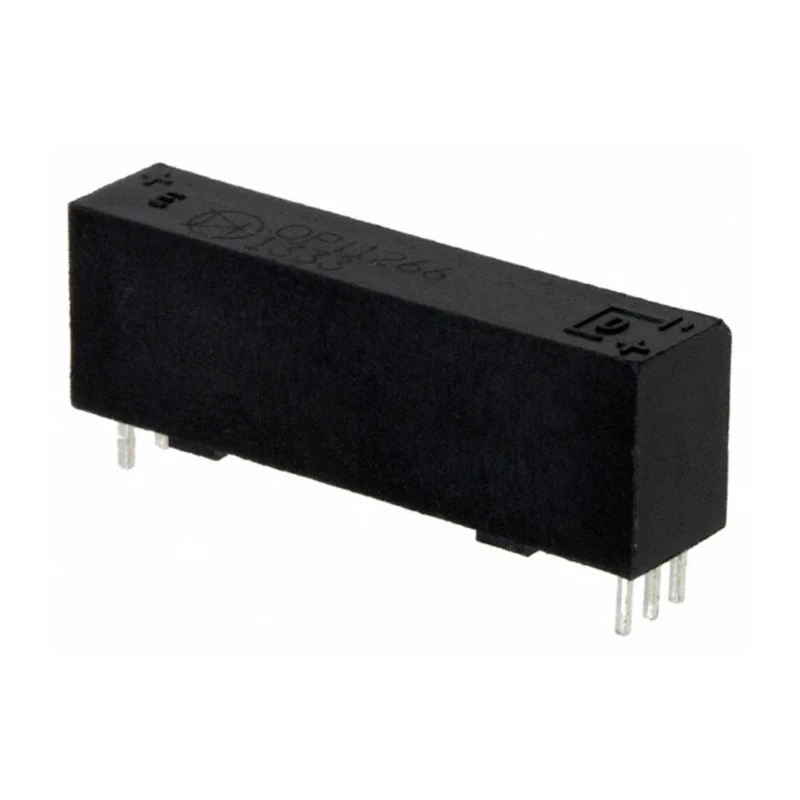

Optek Digital Isolator 500 kbps, 16 kV DC, 7V Supply Voltage, 5-Pin Through Hole OPI1266

Free Delivery in India | Lowest Global Shipping Charges

Optek Digital Isolator 500 kbps, 16 kV DC, 7V Supply Voltage, 5-Pin Through Hole OPI1266

Name: Optek Digital Isolator 500 kbps, 16 kV DC, 7V Supply Voltage, 5-Pin Through Hole OPI1266
Brand: Optek
SKU: 384552
Price: 13.67 USD
Availability: InStock



Category Digital Isolator Brand Optek Condition New

Specifications

Country of Origin	Mexico
Brand	Optek
Length	0.970in
Model	OPI1266
Depth	8.89mm
Width	6.35mm
Mount Type	Through Hole
Series	OPI
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Maximum input current	50mA
Power Dissipation	100mW
Supply Voltage	7V
Standards/Approvals	UL recognised file No. E58730
Maximum Forward Voltage	1.8V
Number of Pins	5
Isolation Voltage	16kV dc
Maximum Data Rate	500kbps
Propagation Delay Time	800ns
OPI1266 Optek Digital Isolator 500 kbps, 16 kV dc, 7V, 5-PinBrand	Optek

Key Features

This device features a 7 V supply voltage for improved performance.
The package has 5 pins and uses through hole mount technology.
Maximum forward voltage is 1.8 V with a low power dissipation of 100 mW.
Propagation delay time is 800 ns ensuring precise signal isolation.
Wide operating temperature range from -40°C to 70°C suits industrial environments.
Isolation voltage of 16 kV dc enables robust protection in power systems.
The device is UL recognised ensuring reliability and safety compliance.
Ideal for data transmission, PCB power system isolation, industrial and medical equipment isolation.

Product Description

Optek OPI1266 digital isolator combines an IR LED with an integrated circuit detector to provide high voltage isolation suitable for demanding industrial applications. The device supports maximum data rates of 500 kbps and an isolation voltage of 16 kV dc, making it ideal for reliable data transmission across isolated sections of electronic systems.

Designed for through hole mounting with only 5 pins, it operates efficiently at a supply voltage of 7 V. Its maximum forward voltage is 1.8 V while power dissipation remains low at 100 mW, supporting energy-efficient circuits.

Propagation delay time of 800 ns allows precise timing in switching applications. Operating temperature ranges from -40°C to 70°C, accommodating harsh industrial, medical, and office equipment environments.

The device's compact form factor with dimensions approximately 6.35 mm wide, 8.89 mm deep, and 0.970 in length provides flexibility in PCB design. Certified under UL recognised file No. E58730, it ensures compliance to international safety standards.

Suitable use cases include high voltage data transmission, power system isolation on PCBs, industrial equipment power isolation, and medical device isolation, guaranteeing protection and signal integrity.

This digital isolator supports fast and secure data transmission at speeds up to 500 kbps. It provides 16 kV dc electrical isolation to safeguard sensitive electronics. Low power consumption at 100 mW makes it suitable for energy-conscious designs.

Robust construction and UL recognition contribute to reliability. Wide temperature range supports use in diverse operating environments. Compact size aids space-constrained applications. Through hole mount type allows straightforward PCB integration.

Manufactured in Mexico ensuring quality and consistency. Explore our extensive range of Digital Isolator ICs and related electronic components at EnvMart to meet your industrial, manufacturing, and laboratory application requirements.
